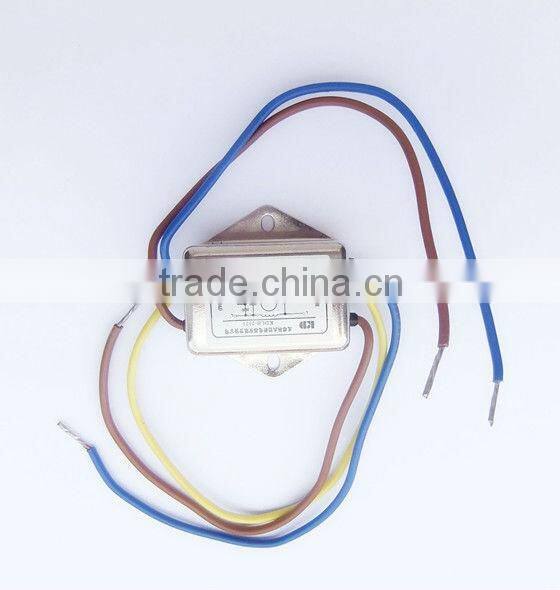

AC power noise filter QXLB2123-2 stage (3A,10A)

characteristics and application

1. the safety and reliablity;

2 .excellent differential mode and mode interference suppression ability;

3. wide current range:0.5A - 100A;

4 .ease of use and umber of optional connection mode;

5. be suitable for switching power supply, UPS power, instrumentation and electronic equipment under 220V AC

Basic technical parameters

Rated current : 0.5A - 100A;

Rated voltage:0-250 V, (50 hz AC)

Leak electricity flow: working current: Less than 25A ≤0.5 mA;More than 25 A be equal or greater than

1 ma

Insert Loss:be equal or greater than 30dB (1∼30MHz)

Insulation voltage: 2300V (AC line to ground, 1 minute)

               1500V (DC, line for line, 1 minute)

Insulation resistance :be greater than 50MΩ ( 500VDC, 1minute)

Environment temperature :- 25°C~ + 85 °C

Constant damp heat : 40 °C 93%
