Specifications
1.Low noise2.walk-in modular cold room for almond, apple and apricot
3.Easy to maintain and install
4.CE, energy saving
refrigeration walk-in modular cold room for almond and apple
Feature of Cold room
1.Temperature: -45~ +20'C
2.Size: Customization.
3.ISO9001,CE,Turnkey projects.
4.Components: Condensing unit, evaporator, PU panel, cold room door
5.Functions: freshkeeping storage for food refrigeration, industry refrigeration, fresh preservation of fruits and vegetables, large supermarket, cold storage of hotels ect.
6.Compressor brand: Bitzer,Emerson copeland,Danfoss,Tecumseh4.ISO9001,CE,Turnkey projects.
7.Easy installation,economical and energy saving,environmental friendly,reliable quality,professional service
8.Excellent quality ,Dependable performance,Easy installation,Economical and Energy saving,Environmental friendly,Reliable quality,Professional service.
| Size: Customization. | |||
| Classification | Small | Middle | Large |
| Volume Range | <500m3 | 500~10000m3 | >10000m3 |
Components for refrigeration walk-in modular cold room for almond and apple :
1.Condensing unit for refrigeration walk-in modular cold room for almond and apple :
Technical Specifications
Electrostatic Painted Galvanized Steel Cabinet;
Thermic / Magnetic Switch; Contactor (three-phase models); Crankcase Heater
Copper Pipe Aluminum lamellar condenser; 6 - pole fan; Fan Control (O / I)
Refrigerant Store; Drier filter; Gas Indicator (Humidity Indicator)
Liquid Flow Control Solenoid; Service / Maintenance Valve (Liquid Line Over)
LP/HP combined pressure cut; Voltage Protection Relay (Low / High);
Air Cooled Type |
Conderser Fan |
Water Cooled Type |
water cooled condenser and cooling tower |
Evaporative Cooled Type |
Evaporative Condenser |

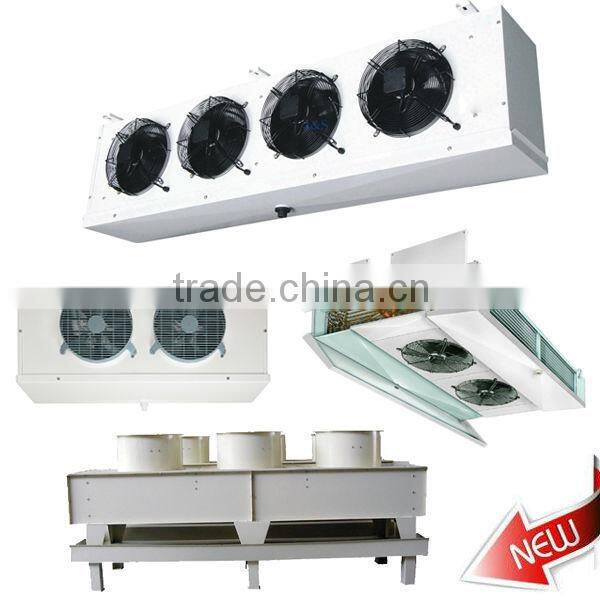

2.High efficiency air-cooler:
General Features:
- 1. Capacity design according to the most popular compressor sizes in this range
- 2. The high efficient coils are made from high quality copper tube diameter 16mm and special profile aluminum fins.
- 3. Coil block made from robust fins to withstand the cleaning processes
- 4. Water drain tray design with slops towards the drainage to minimize the water in tray
- 5. 100% leakage tested at 30 bars
3.Insulation Panel:
Use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Thickness of cold room panel |
Application temperature |
50mm |
Temperature 5°C or above |
75mm |
Temperature -5°C or above |
100mm |
Temperature -25°C or above |
150mm |
Temperature -45°C or above |
200mm |
Temperature -55°C or above |

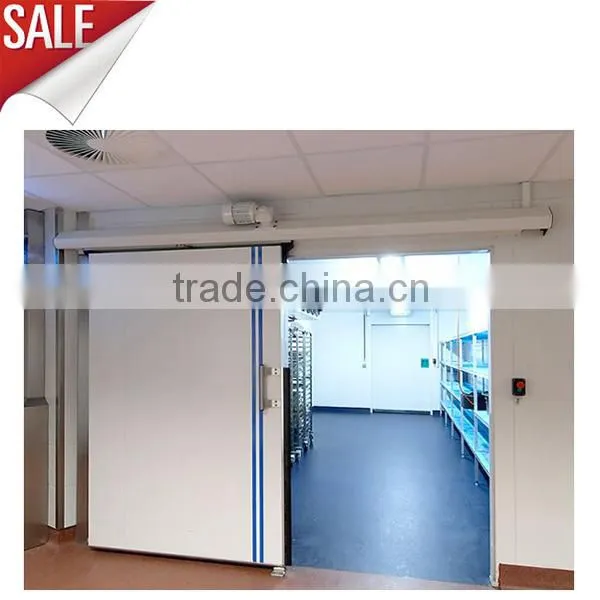

4.Doors:
1.Swing door and sliding door for choice.
2.Swing door:manual opened,automatic,etc.
3.Door board made with special pressing technology PU material.
4.Door frame:color steel or stainless steel.
5.Surface material:color steel or stainless steel with protecting film.

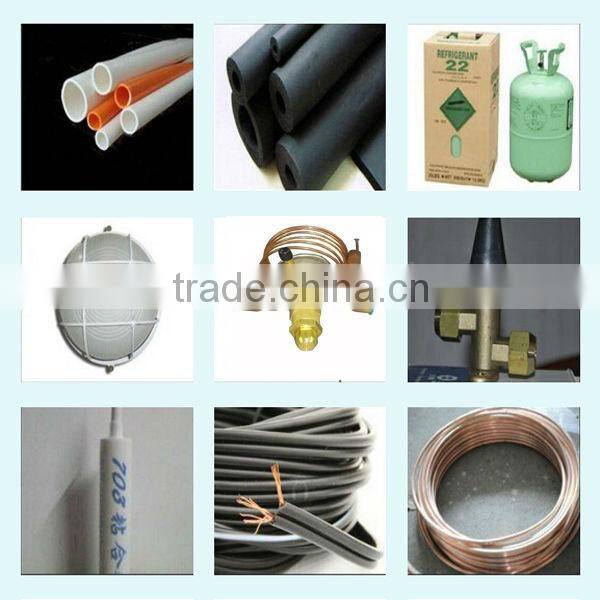

5.Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Applications:
Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical, Electronics,etc.
Storage products |
Storage temperature approach |
Vegetables, Fruit chlling storage |
-5~5 'C |
Drink, Beer chilling storage |
2~8'C |
Meat, Fish freezing storage |
-18~-25'C |
Meat, Fish blast freezer |
-35~-40'C |
Medicine chilling storage |
2-8'C |
Medicne freezing storage |
-20'C |
Our advantages:
1.ORGREN Cold room have abundant experience in trading and installation abroad for many years..
2.ORGREN can provide the most reasonable configuration and price of cold room for customers.
Customer case:
It is portable cold room with high insulating PU Panel, reliable quality compressor and unit cooler, and other accessories. the size depends on your stock tons and temperature.
We can do customized dimension according to customers'requirements. We have access to all the leading Cold Room refrigerators brands and can offer independent advice, and recommend the right equipment to meet your business requirements.
To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1. what is your cold room used for?
2. what is your required room temperature?
3. what is the cold room dimension or how much food or other products will be put inside?
4. what is your voltage, phase and hertz?
5. what is your refrigerant?
Before shipment, our engineer has a whole installation in advance. In this way, you needn’t worry our cold room can’t work when you install.
Service Schedule:
