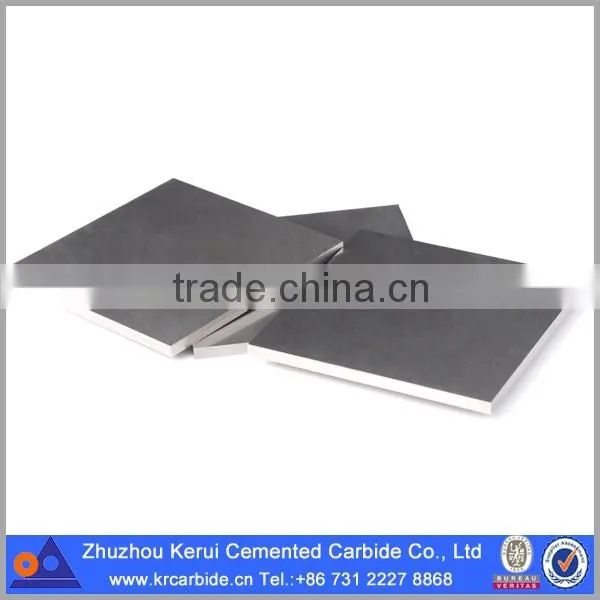

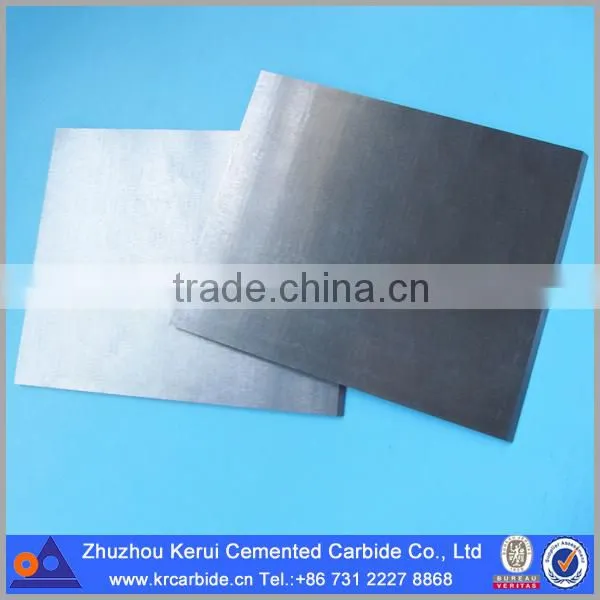

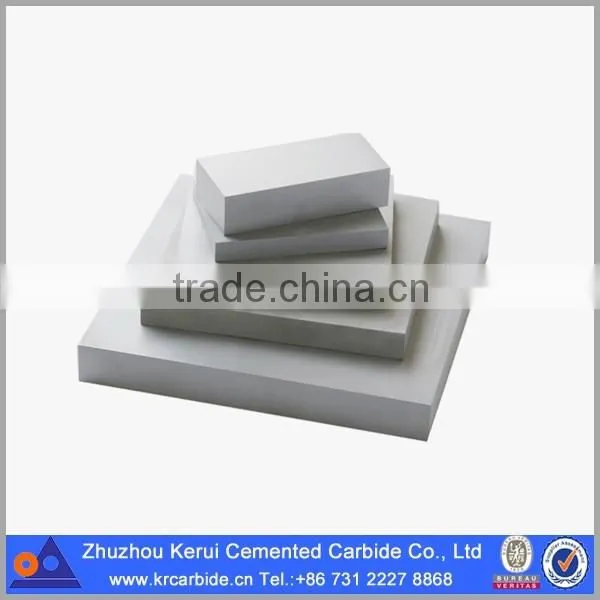

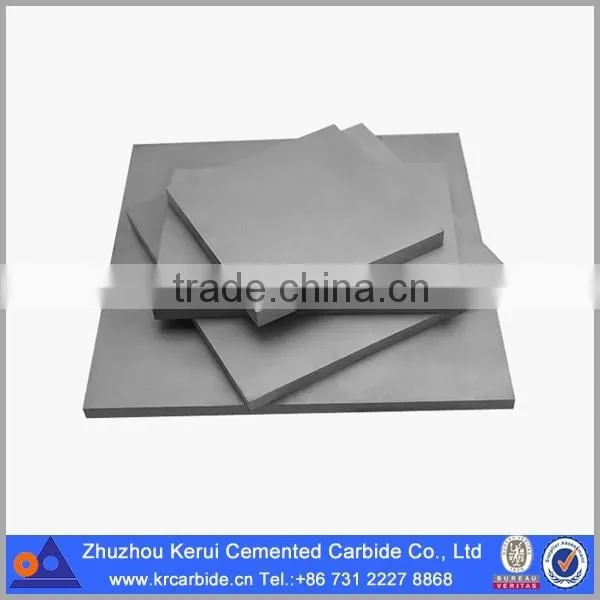

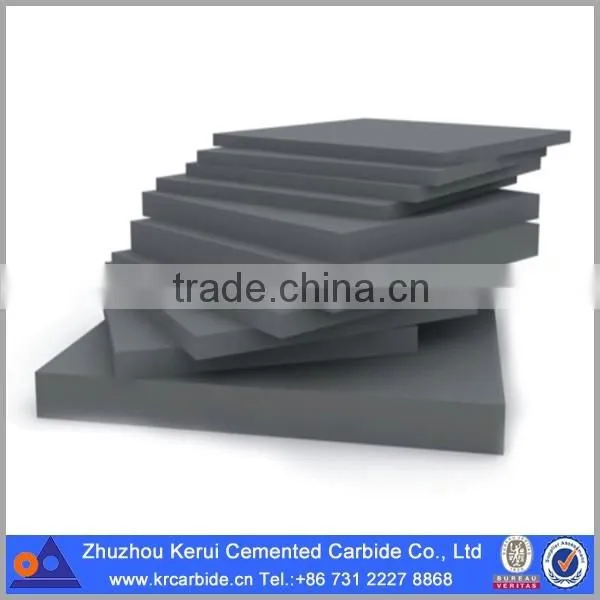

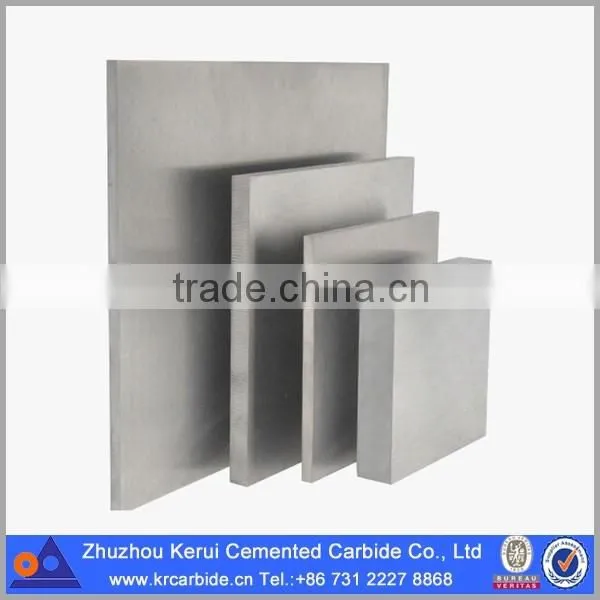

Durable carbide square plates like in size of 200x200x10mm
Kerui durable Carbide Square Plates,made from 100% virgin tungsten carbide raw materials.It can be used in wide application field. Kerui Carbide plate have high hardness, good red hardness,excellent wear resistance, High Elasticity Modulus and compressive strength.The chemical properties of ou tungsten carbide plates is stable,also the impact toughness & dialatation coefficient is low. The heat-conducting property and electrical conductivity of tungsten carbide plate is close to iron or iron alloy.
It is a very good materials to produce the parts to resist high temperature & corrosion, also it is widely used as wear parts and shielding parts. We provide you high quality tungsten carbide plate which can enhance your productivity and save your cost.
Types of Durable Tungsten Carbide Square Plates:
Grade:K10, K20,K30,K40 choosed depends on customers' uses,
Size of square plates like: 200x200x10mm is hot selling for export.
Blank of durable tungsten carbide square plates:
Polished of Durable Carbide square plates,
Other types of durable tungsten carbide plates may be offered according to customers' requirement.
Sizes of durable tungsten carbide square plates:
Unit:mm
| Type(L×W) | Thickness(H) | Tol. | ||
| Length(L) | Width(W) | Thickness(H) | ||
| 50×50×H | 1.5~10 | L×±1.5% | W×±2.5% | H×±2.5% |
| 100×100×H | 2.5~60 | |||
| 120×120×H | ||||
| 150×150×H | ||||
| 200×200×H | ||||
| 300×200×H | ||||
Customized design is available.
Grades of durable carbide square plates used for molds of electric motor
| Grade | ISO Grade | WC % | CO % | Grain Size | Density | Rockwell Hardness | Vickers hardness | Bending Strength | Application field | |
| g/cm3 | HRA | HRC | HV | N/mm2 | ||||||
| GB16 | K20 | 92 | 8 | 1.6 | 14.7 | 90 | 76 | 1432 | ≥3500 | silicon steel sheet,upper mould |
| GB22 | K30 | 89 | 11 | 1.6 | 14.3 | 88.5 | 73 | 1250 | ≥3650 | Silicon steel sheet of upper mould, The upper and lower mould of cold-rolled sheet materials |
| GB30 | K40 | 85 | 15 | 1.6 | 14 | 87 | 70.4 | 1100 | ≥3800 | The upper and lower mould of Silicon steel sheet and Cold-rolled sheet. |
| GB40 | K40 | 80 | 20 | 1.2 | 13.7 | 84.5 | 66 | 900 | ≥4200 | The upper and lower mould of silicon steel sheet(it is good choose for thick plate with high pressure resistance) |
Product Advantages:
1,high speed tool steel
2,well-distributed carbide
3,good toughness
4,high abrasive resistance and hardness
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to push the production and shorten the delivery time.
