tungsten carbide welding tips insert
1.Details of tungsten carbide welding tips insert :
1).stable and reliable quality;
2).made from 100% virgin material;
3).all products go through in-process and final inspection;
4).free online technical service available;
5).Sample available;
6).Specification:
ISO Grade: YG7/YG8/YG10/YG8C/YG10C;
7).tungsten carbide welding tips insert sizes (in rectangular shape)-16x12x3.2,18x12x3.35,19.6x11.9x2.9,20x12x3.35 etc.
used for cutting general wood, hard wood, and aluminum section bar, brass rod and cast iron.

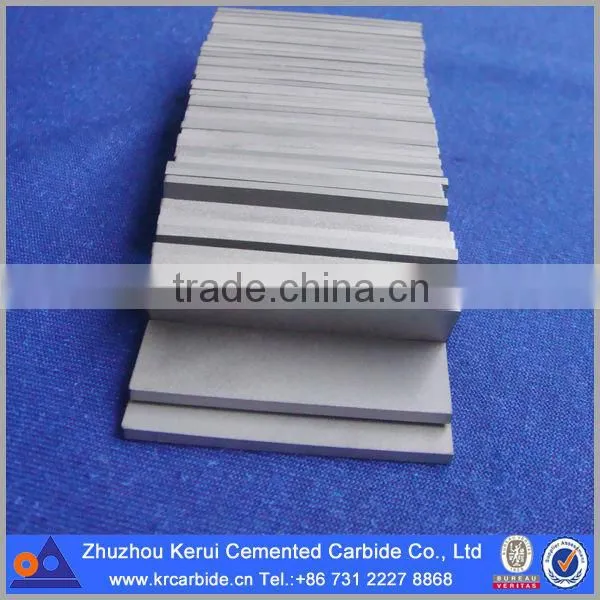

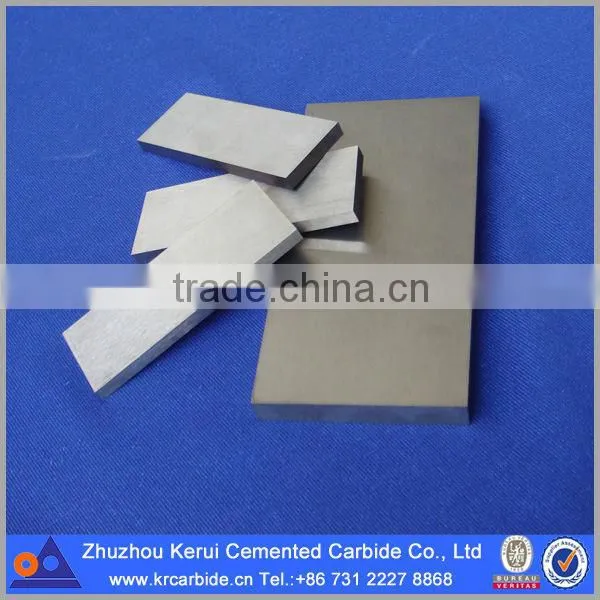

8).Detail pictures:
Grade |
Density |
Hardness |
TRS |
(g/cm3) |
(HRA) |
(Mpa) |
|
YG6 |
14.9 |
91 |
1800 |
YG6X |
14.8 |
92 |
1800 |
YKM6A |
14.7 |
92.5 |
1800 |
YG8 |
14.8 |
90 |
1950 |
YT5 |
13 |
90.8 |
1900 |
YT14 |
11.5 |
91.5 |
1500 |
YT15 |
11.3 |
91.8 |
1450 |
YW1 |
13.1 |
91.5 |
1600 |
YW2 |
13.1 |
91 |
1600 |
YS25 |
12.8 |
91.5 |
1900 |
YC30S |
12.8 |
91 |
2000 |
ZP35 |
12.8 |
91 |
2000 |
YC40 |
13.2 |
90 |
1850 |

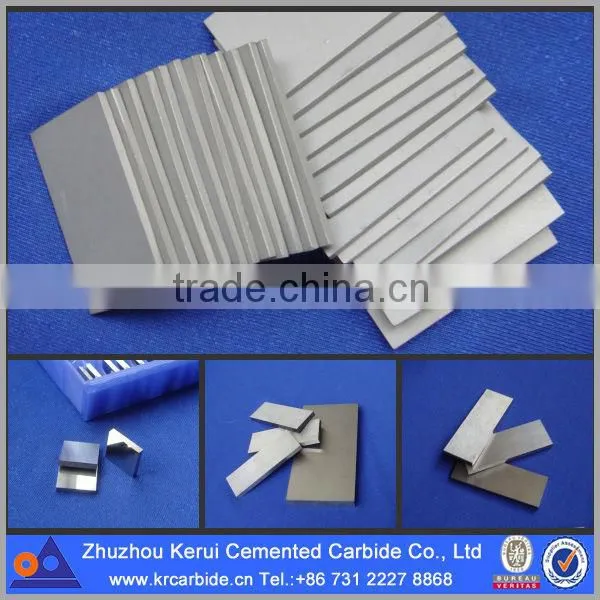

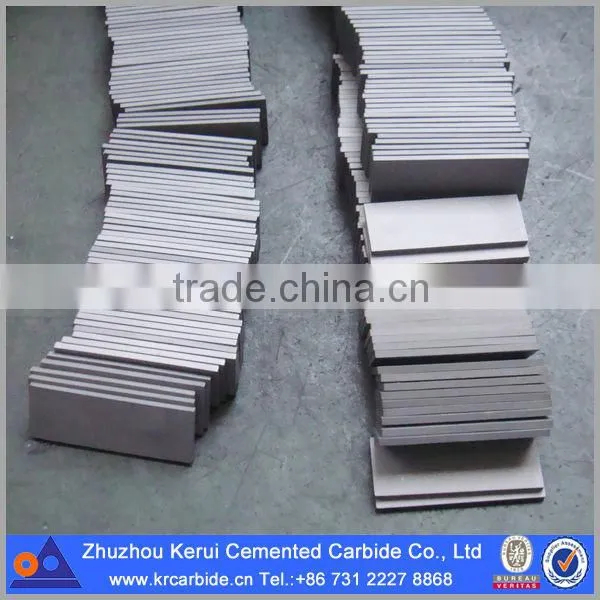

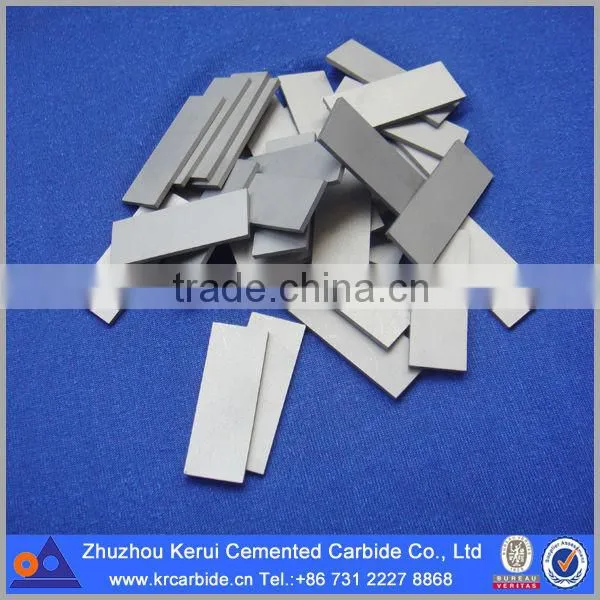

3.Related Pictures for such kind of tungsten carbide welding tips insert Blank and Grinding:
4.Terms:
Packing |
#1:300pcs wraped with paper and then packing with paper box,20 paper box per 1 carton; #2: 20pcs packing with plastic pallet,50plastic box per 1 carton. |
||||||||||||||||||
|
Carton size:according to the
| |||||||||||||||||||
Port of loading |
Any China Port |
||||||||||||||||||
Load Ability |
according to the products you need. |
||||||||||||||||||
MOQ |
100pcs |
||||||||||||||||||
Delivery |
3000pcs:15days |
||||||||||||||||||
5000-10000pcs:20days | |||||||||||||||||||
10000pcs-50000pcs:40days | |||||||||||||||||||
Transportation |
By sea/air |
||||||||||||||||||
Samples |
Supply |
||||||||||||||||||
Trial order |
Welcome |
5.Payment:50% deposit and the balance against shipment.
6.Our main products:
1)Stone cutting tips;
2)Brazing carbide tips;
3)Indexable carbide cutting tips;
4)Milling carbide inserts;
5)wear parts;
6)Carbide buttons for mining;
7)tire stud;
8)such kind of carbide cutting tools.
7.Packing way:
Packing into plastic box or paper box first and then transport by carton
Plastic box of packing way:
Paper box of packing way:
8.Quality control system:
Eevery batches of material will be tested in density, HRA, TRS and magnetic saturation, test report will be kept in our files.
Strict quality control system to make sure every single piece can match your requests.
Note: Please kindly advise the grade or using purpose for quotation.
9.About us:
Zhuzhou Cemented Carbide Co. Ltd. is a professional tungsten carbide manufacturer in Zhuzhou City, our company have experience in this field for more than 10 years.
We have long term relationship with our customers and you can find the best prices, quality and service here and it will be simple and easy to do business with us.
Please contact me for discussing!
