Home > Products > Carbide inserts > ISO turning inserts
ISO turning inserts
- 50 Ton / Tons per Month
- China Port
- T/T L/C D/P D/A Credit Card PayPal
-
ZCC DNMG YBG205 DNMG150404-EF Carbide Inserts CNC Turning Tool Lathe Cutter Tools
-
CNC Lathe Turning Tools Turning Carbide Insert TNMG Series stainless steel processing TNMG160404/160408-EF YBG205 inserts
-
Threading insert 22ERN60A CNC turning tool cemented carbide insert RP9125B
-
Machine Lathe Tool External Cutting Tools CNC MWLNR/L Carbide Turning Holder MWLNR3232P08 MWLNL3232P08
-
MTJNR2525 External Turning Tool Holder TNMG Carbide Inserts CNC Lathe Cutting Tools
-
P30 YG6 YT5 Tungsten Cemented carbide tips A25 B25 A20 B20
Product Details
Place of Origin: | Hunan, China | Brand Name: | Kerui | Model Number: | Various |
Material: | Other, Tungsten Carbide, Wc+Co | Usage: | External Turning Tool | Hardness: | for steel |
Coating: | MT-TICN/AL 203 |
Product Description
ISO turning inserts
Product introduction:
Product: ISO Turning inserts
Type: CNMG
Recommend Grade: YBG202, YBC151, YBC251..
Coating: MT-TICN / Al 203;
ISO Dimension Chart:
L: 12.9mm;
IC: 12.7mm;
S: 4.76mm;
D: 5.16mm;
r: 0.8mm
Max Turning Depth: 8.6mm.

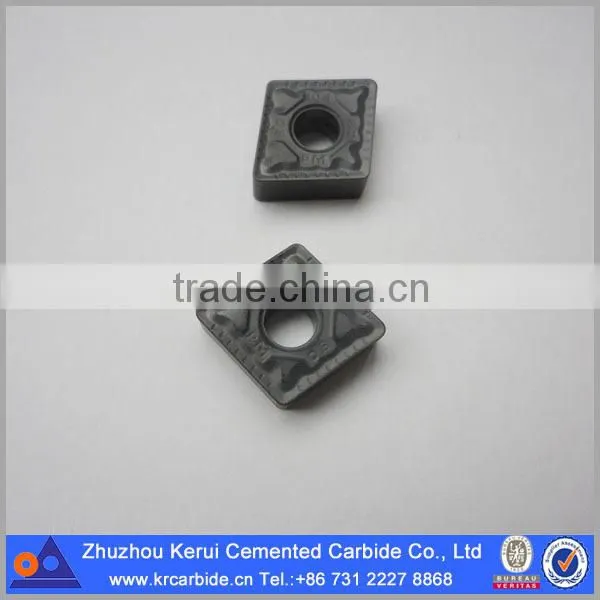

ISO turning inserts of Product picture:
Product application:
It is used for turning machine.
Application field:
High abrasion proof of Basic with MT-TICN/AL 203,TIN of coating processes.
It is suitable for turning Steel, Stainless steel, Cast iron, metal etc.
Other types of ISO turning inserts:
Physical and mechanical properties of main grades:
YBC151 | The combination of substrate with excellent wear resistance and coating composed of MT-TiCN, thick layer of |
Al2O3 and TiN makes it suitable for finishing steel. | |
YBC251 | The substrate with good toughness and high security of cutting edge, in optimal |
combination with coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel semifinishing. | |
YBC351 | The best combination of substrate with high wear resistance and coating composed of MT-Ti (CN), thick Al2O3 |
layer and TiN makes it suitable for finishing and semi-finishing of cast iron materials. | |
YBD151 | The substrate with high strength and resistance against plastic deformation,in combination with coating composed |
of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel roughing. | |
YBM151 | Subst rate wi th special st ructure, i n combination with coating composed of TiCN, thin Al2O3 layer and TiN, with |
excellent resistance against diffusive wear and plastic deformation makes it suitable for finishing, semi-finishing and roughing of | |
stainless steel. | |
YBM251 | Combination of substrate with good toughness and strength and coating composed of TiCN, thin Al2O3 layer and |
TiN makes it suitable for semi-finishing and roughing of stainless steel. | |
YBM253 | New CVD grade for high-efficiency machining of stainless steel,Widely applied in high-efficiency machining |
with high cutting depth and high feed rate,With advanced ultra-fine grain nano coating technology, the grade uses gradient alloy | |
substrate with high toughness. It demonstrates excellent capacity at cutting with high cutting depth, high feed rate and high |
Reference packaging:
Interior packaging: plastic or paper box interior, (10pieces can packing in a plastic box)
Exterior packaging: carton or wooden case.
Also could be customized.
Product advantages:
1) efficient machining, good high-temperature stability;
2) easy to assembly, no crack or chipping;
3) smooth surface with beautiful and nice coating.
Tips for use of turning machine/turning tool holders:
1) structure of turning inserts should have enough rigidity;
2) the turning inserts should be fixed strongly onto the holder;
3) check and ensure good condition/suitable of the turning tool holder before fix the turning inserts;
4) With two sides of high strength edges, Can be applied to unstable working condition of semi-finishing.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba and BV.
Our tungsten carbide products are exported to USA, Canada, Russia, Romania, Italy etc.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Guarantee:
Full payment refund if any quality problem.
Transaction process:
Inquiry => product conformation => quotation => price and terms => advance payment =>
Production => balance payment => delivery => after sales service
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
Our main markets:
North America: USA, Canada, Mexico
South America: Brazil, Peru, Chile
Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany
Mid East: Egypt, Turkey, Lebanon
Africa: Kenya, South Africa
FAQ:
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to
push the production and shorten the delivery time.
