Down The Hole(DTH) Drilling Bits of Tungsten carbide inserts(TCI) button
We are manufacture a wide range of Tungsten Carbide Insert Button Bits of which are available from stock. They are suitable for soft, medium or hard formations depending on the profile of the TCI. Button. When placing an enquiry for these types of rock bits it is essential to specify the formation to be drilled. In addition all ranges of rock bits maybe supplied for water, mud or air flush and with jet nozzles if required. It is important to provide us the information for the flushing requirements to ensure that the correct bit is supplied.
1.Specification:
2.Advantages of Down The Hole Drilling Bits of Tungsten carbide inserts button:
1.for mining drill bits
2.stable and reliable quality
3.made from 100% virgin material
4.all products go through in-process and final inspection
5.free online technical service available
6.Sample available
7.Conical inserts in Materials of Tungsten Carbide
8.In various sizes

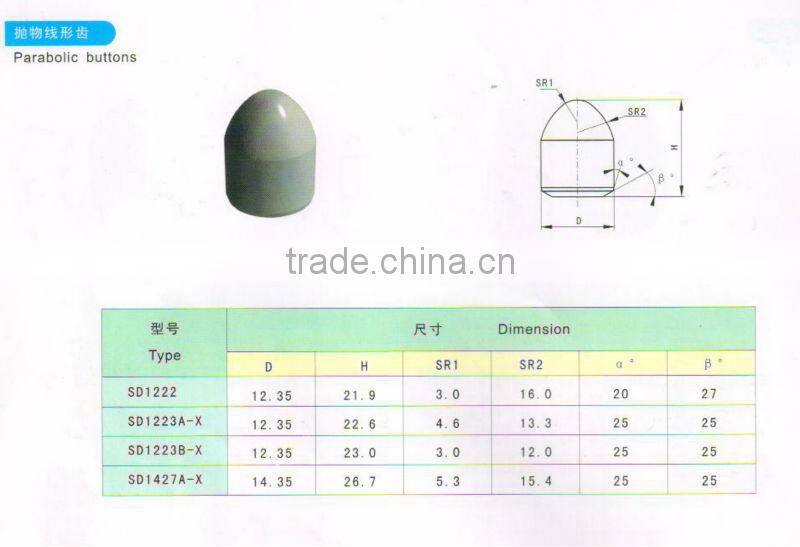

9.Specification and detail pictures:
Related pictures:

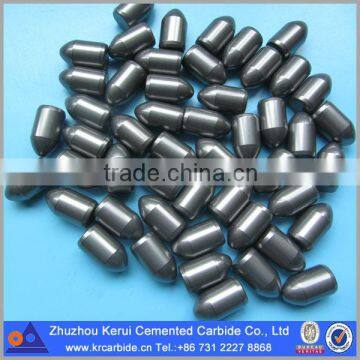

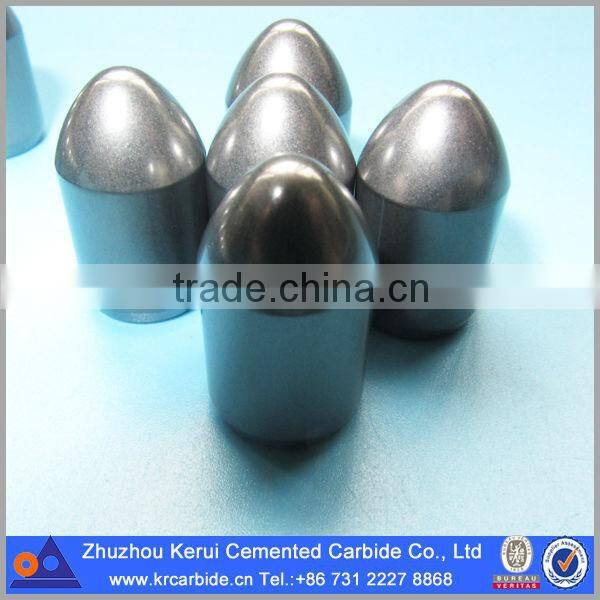

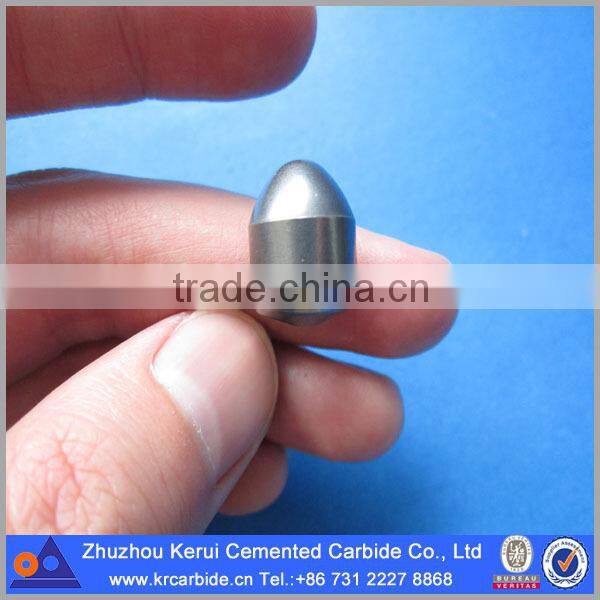

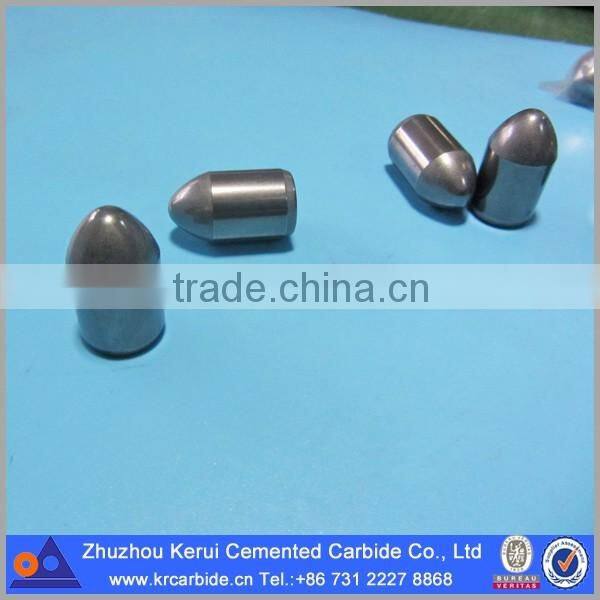

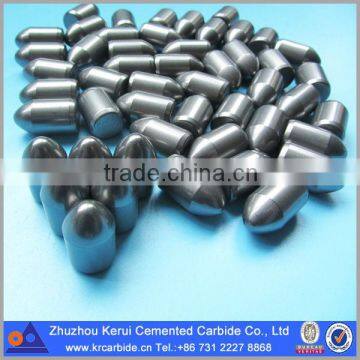

TCI Buttons:

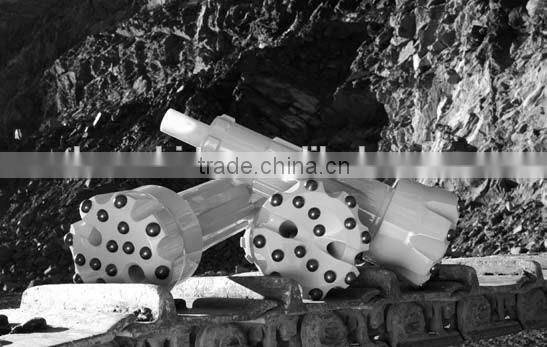

DTH Drill bits:
3.Followings are some of our distinguished customers:
- Incredilution LLC ( USA )
- AXMAK LTD ( Egypt )
- Erkimpeck Turism Ve Ticaret ( Turkey)
- Kings Wear Ltd ( Kenya )
- BNT Eastern Europe Zrt. ( Hungary )
- Sorkun Mermer Ltd STI ( Turkey )
- ABRATEK A/S ( Denmark )
Grade |
Density |
Hardness |
TRS |
(g/cm3) |
(HRA) |
(Mpa) |
|
YG6 |
14.9 |
91 |
1800 |
YG6X |
14.8 |
92 |
1800 |
YKM6A |
14.7 |
92.5 |
1800 |
YG8 |
14.8 |
90 |
1950 |
YT5 |
13 |
90.8 |
1900 |
YT14 |
11.5 |
91.5 |
1500 |
YT15 |
11.3 |
91.8 |
1450 |
YW1 |
13.1 |
91.5 |
1600 |
YW2 |
13.1 |
91 |
1600 |
YS25 |
12.8 |
91.5 |
1900 |
YC30S |
12.8 |
91 |
2000 |
ZP35 |
12.8 |
91 |
2000 |
YC40 |
13.2 |
90 |
1850 |
5.Quality control system:
Every batches of material will be tested in density, HRA, TRS and magnetic saturation, test report will be kept in our files.
Strict quality control system to make sure every single piece can match your requests and we guarantee full payment returned if any quality problems with our carbide of mineral cutting tools and carbide tip .
Note: Please kindly advise the grade or using purpose for quotation.
6.Related Down The Hole Drilling Bits of Tungsten carbide inserts button:
7.Packing pictures:
Packing carbide buttons into paper box first and then transport by Carton.
8.About US:
Zhuzhou kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer located in Zhuzhou City, the world-renowned research and production base of tungsten carbide. Having been involved in this field for over 10 years.
We have rich experience in both production and research of carbide products,especially carbide tip .
Please feel free contact me for detail discussion!
