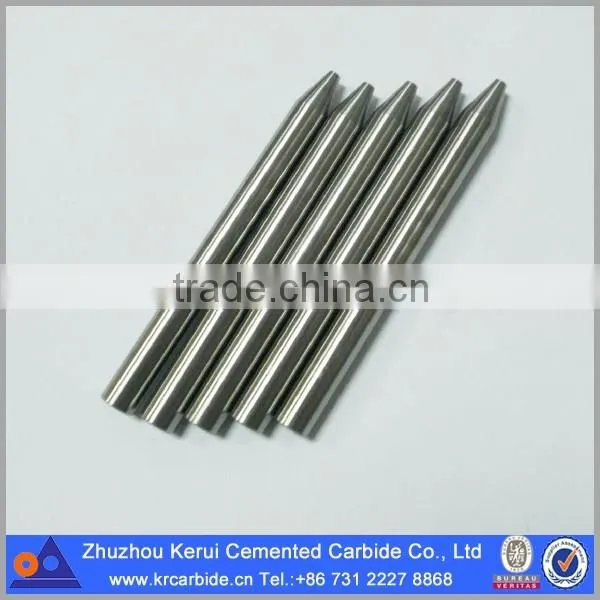

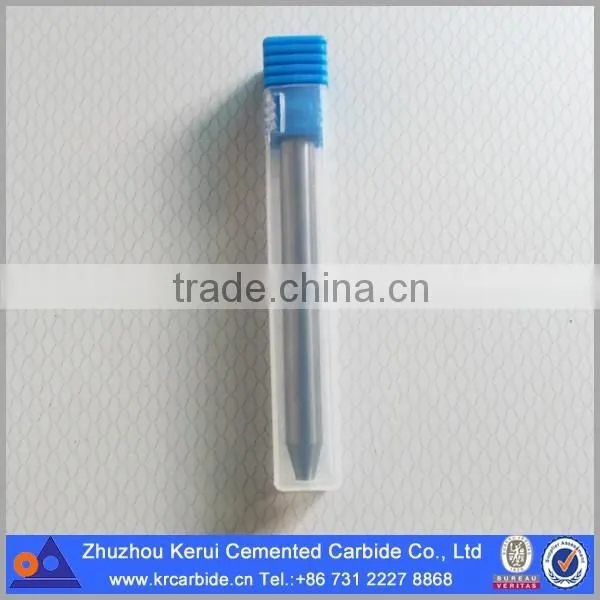

Long Life Tungsten Carbide Abrasive Water Jet Nozzle
With 10 years of experience in the production of tungsten carbide combined with our specialised grade of materials, we can offer the most suitable solution
for each application.
1. Product Description:
Water Jet Cutting is an industrial manufacturing technique that uses a very highly pressurized
stream of water to cut through just about it anything.
TUNGSTEN CARBIDE NOZZLES are usually considered to be the most durable of all material
types. In cases of dirty unfiltered water, they are the most durable. In applications where flow rates
exceed 190 lpm (50 gpm) or more, water may not be filtered and these users typically get the
longest life from carbide nozzles.
Materials that can be cut include :
rubber, foam, plastics, leather, composites, stone, tile, metals, food, paper, aluminum, and more.
The water stream is usually mixed with an abrasive powder, but pure water can be used when
cutting softer materials.
2. Product Specification:
Specification of tungsten carbide water jet nozzle:
| D(mm) | d(mm) | L(mm) | r(°) | a(°) | ||||
| 6 | 0.76 | 76.2 | 40 | 28 | ||||
| 6 | 1.02 | 76.2 | 40 | 28 | ||||
| 6.35 | 0.5 | 76.2 | 40 | 28 | ||||
| 6.35 | 0.76 | 76.2 | 40 | 28 | ||||
| 6.35 | 1.02 | 76.2 | 40 | 28 | ||||
| 7.14 | 0.76 | 76.2 | 40 | 28 | ||||
| 7.14 | 1.02 | 76.2 | 40 | 28 | ||||
| 7.6 | 0.76 | 76.2 | 40 | 28 | ||||
| 7.6 | 1.02 | 76.2 | 40 | 28 | ||||
| 9.45 | 0.76 | 76.2 | 40 | 28 | ||||
| 9.45 | 1.02 | 76.2 | 40 | 28 | ||||
3. Advantages of tungsten carbide water jet nozzle:
-- Superior wear resistance
Which means a reduction in the number of nozzles purchased over time
--Longer life
This allows faster average cutting speeds and significantly reduced system downtime for nozzle
re-placement and system calibration
--Cost-effetive
These performance enhancements combine to make the entire cutting process more cost-effective.

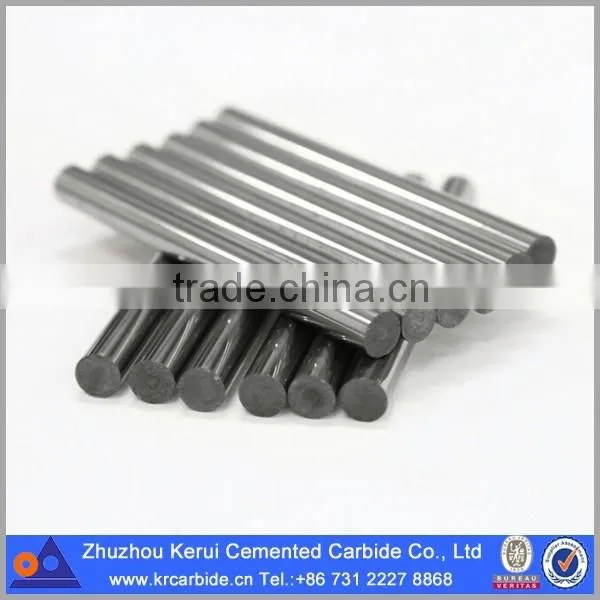

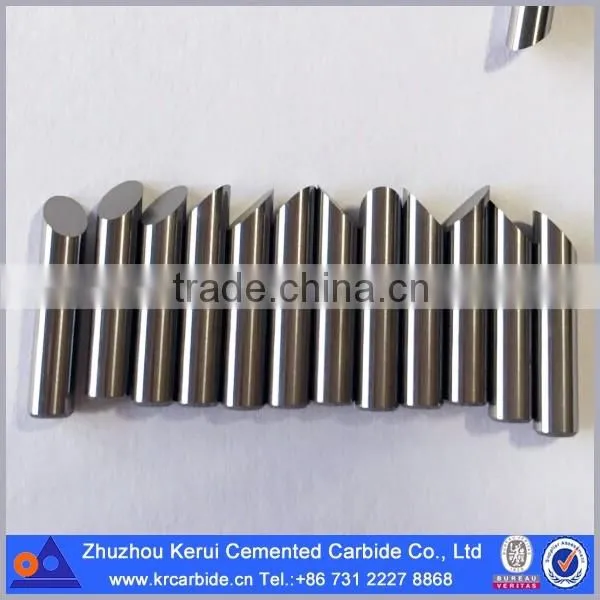

4. Recommend tungsten carbide products:
5. Reference Packing:
6. Company Profile:
Technical Assistance & Inquiries:
Phone: (86)-731-22278868 Fax: (86)-731-22609167
We looking forward the opportunity to assist you!
