Carbide thrust block for centrifugal compressor
Product introduction for Carbide thrust blocks:
Tungsten carbide thrust blocks is with good wear-resistance, excellent hardness and mechanical characters. It's widely used for centrifugal compressor, Rotary Tools, dies, and wear part applications.
* Substantially longer service life than traditional steel tools
* Consistent working depth and tillage quality
* Permanently sharp cutting edges mean improved heeling and less traction power required
* Needs no depth adjustment due to wear
* Saves time and money thanks to fewer blade changes
* Much longer periods of use during good weather
* Optimum utilisation of machine power
* Lower tool costs per acre
* Money saved through reduced stocks

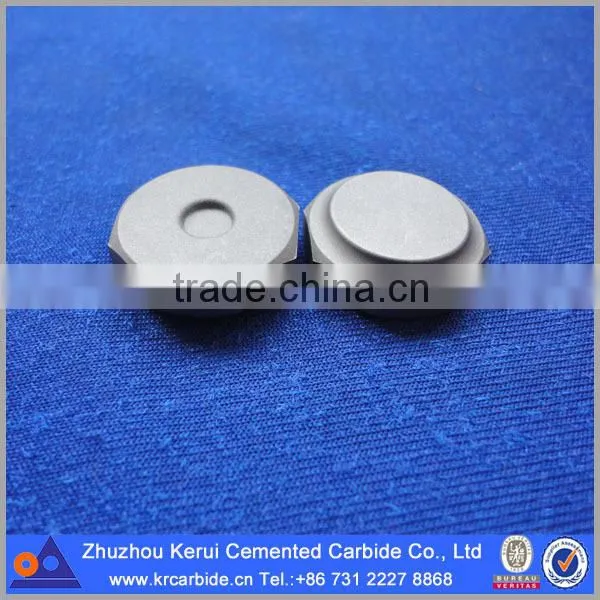

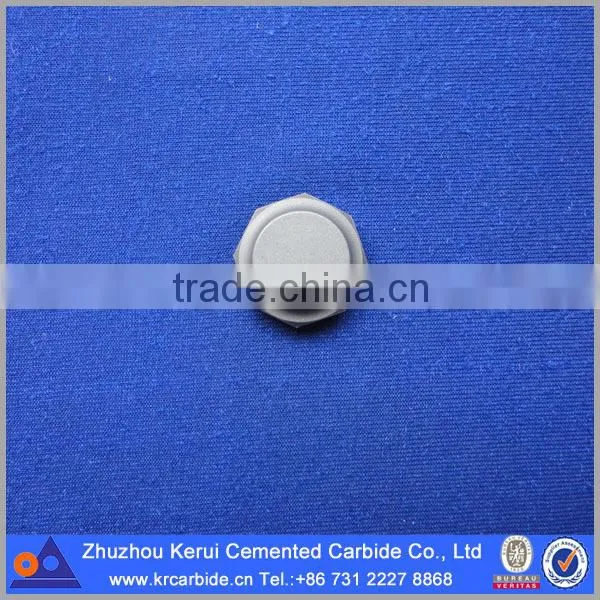

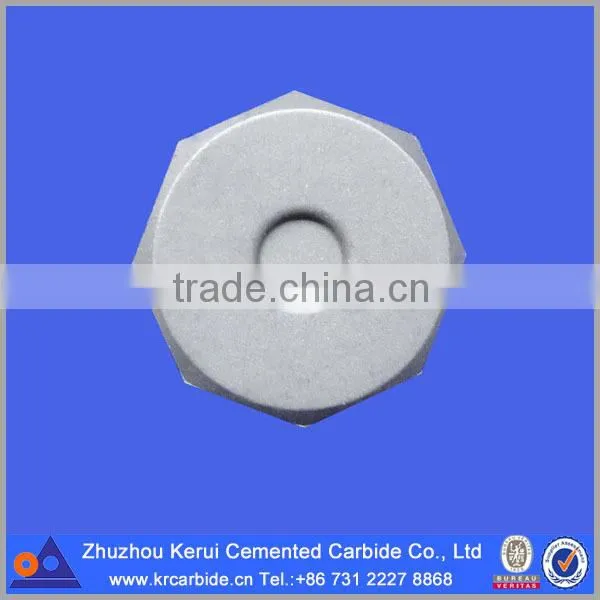

Detail pictures of carbide thrust blocks:
Product application:
Tungsten carbide Thrust blocks can used for bearing carbide tips, thrust bearings, for Centri fugal compressor, for high speed thrust bearings, for ball mill machine, for rock drill bit, tricone bit, cone bit, roller bit etc.

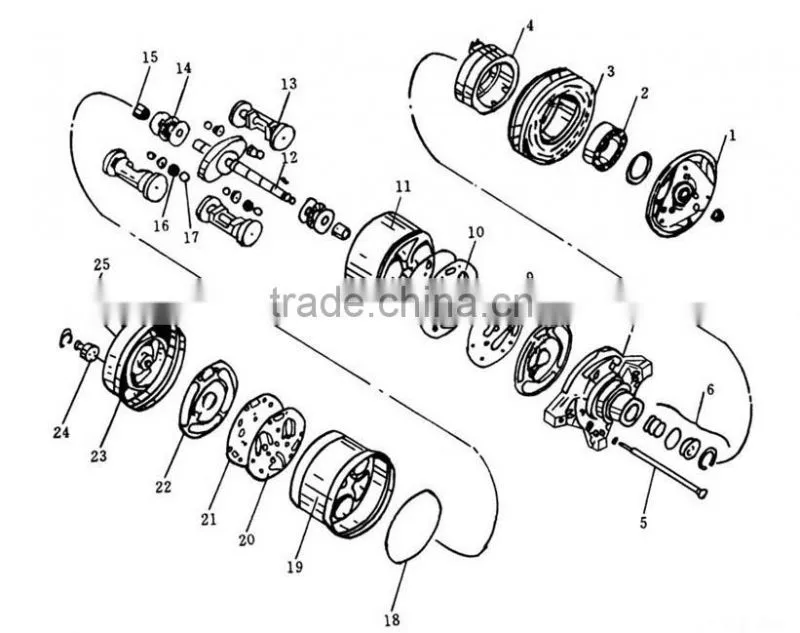

Draft drawing of application field for your reference:
Physical and mechanical properties of main grades:
Grade |
ISO Grade |
Density g/cm3 |
Hardness HRA |
T.R.S>N/mm2 |
YG6 |
K20 |
14.85-15.05 |
90.5 |
1860 |
YG6A |
K10 |
14.85-15.05 |
92 |
1600 |
YG6X |
K10 |
14.85-15.05 |
91.7 |
1800 |
YG7 |
K20 |
14.65-14.85 |
90 |
1900 |
YG8 |
K30 |
14.60-14.85 |
89.7 |
2060 |
YG10 |
K40 |
14.25-14.55 |
88 |
2160 |
YG11 |
K40 |
14.30-14.50 |
87.5 |
2260 |
YG11C |
14.20-14.40 |
87 |
2260 |
|
YT14 |
P20 |
11.20-11.80 |
91 |
1550 |
YT15 |
P10 |
11.10-11.60 |
91.5 |
1500 |
Reference packaging:
Interior packaging: paper box interior,
Exterior packaging: carton or wooden case.
Also could be customized.
Product advantages:
1. suitable Grade makes your carbide tips using to be extremely effect.
2. durable performance, wear resistant and with enough impacting force against.
3. very good prices according to market situation.
4. very fast delivery time.
5. keep zero stock, all the pieces to customers will be new made.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba, TUV and BV etc.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Guarantee:
Full payment refund if any quality problem.
Promise:
100% high-quality native tungsten carbide raw materials, in strict standard quality assurance system strictly control the quality of products accordance with ISO9001, the most preferential prices, the most attentive service, the most reliable product quality for your service!
Certificates:
Our foreign trade team:
Transaction process:
Inquiry => product conformation => quotation => price and terms => advance payment =>
Production => balance payment => delivery => after sales service
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
