Specifications
led flood light wholesale1.High lumen IP65
2.Aluminum all over light body
3.CE RoHS approved

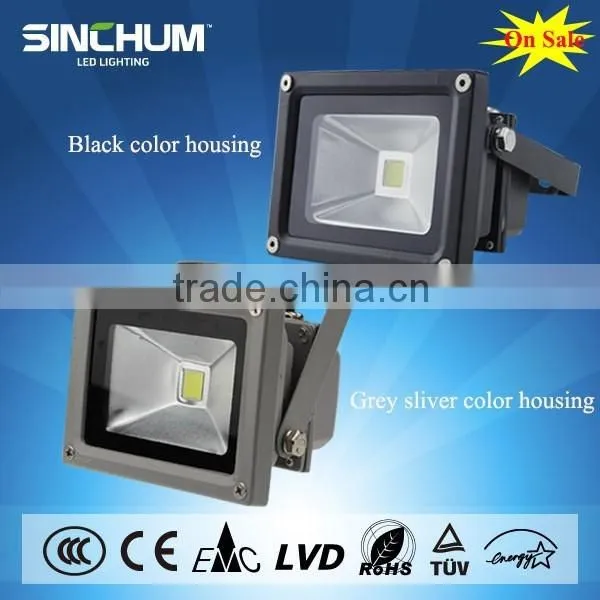

Waterproof IP65, High lumens and brightness, 10w led flood light wholesale
| PRODUCT SHOW |
led flood light wholesale features
1.Heavy housing,
2.Stainless steel screws and bolts;
3. Die-cast aluminum housing with fin-shape design, better heat release;
4. 4mm tempered glass with 93% transparent rate;
5. Entire housing coated by spray paint for excellent corrosion resistance.
led flood light wholesale specification
| Model No | Power | Product Size | Technical Parameters |
| SC-F00-10 | 10W | L 115 * W 85 * H 80 mm |
Material : Die-cast aluminum + Tempering glass PF > 0.5 , Waterproof : IP65 Lifespan : 50000hours Warranty : 2 years |
| SC-F00-20 | 20W | L 155 * W 180 * H 95 mm | |
| SC-F00-30 | 30W | L 220 * W 180 * H 110 mm | |
| SC-F00-50 | 50W | L 245 * W 287 * H 140 mm | |
| SC-F00-70 | 70W | L 390 * W 285 * H 120 mm | |
| SC-F00-80 | 80W | L 390 * W 285 * H 120 mm | |
| SC-F00-100 | 100W | L 397 * W 285 * H 120 mm |
led flood light wholesale details display
Surface treatment
Very smooth surface achieved by advanced powder coating technology ,this makes aluminium body with an excellent anti fading effect.
Heat sink
high & thick heat sink, excellent heat decay system, could assure our led flood lights working stable and longer life span.
Led chips
Epistar,Bridgelux,cree leds, high lumen,reach to be 110lm/w.
Driver
High Power Factor Waterproof Intelligent constant current driver can safely isolate the electromagnetic interference and greatly improve the power supply stability.

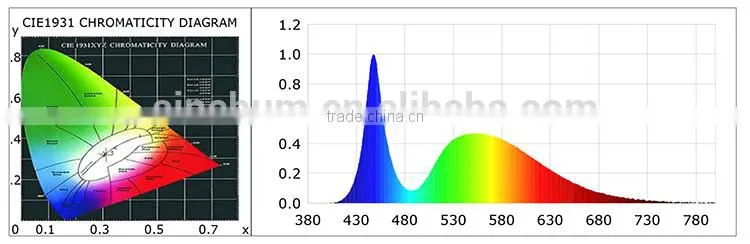

| Colorimetric Parameters | |
| Chromaticity coordinates:x=0.3136 y=0.3232 | u(u’)=0.2007 v=0.3102 v’=0.4653 |
| CCT:Tc=6500K(duv=0.00032) | Color Ratio:R=0.124 G=0.838 B=0.038 |
| Peak Wavelength:448nm | Half Bandwidth:21.8nm |
| Dominant Wavelength:484.8nm | Color Purity:0.075 |
| CRI:Ri:Ra=73.0 | |
| R1=75 R2=73 R3=66 R4=80 R5=75 R6=61 R7=82 R8=73 | |
| R9=0 R10=30 R11=78 R12=33 R13=72 R14=80 R15=75 | |
| Photometric Parameters | ||
| Luminous Flux:862.30lm | Efficiency:86.23lm/w | Radiant Power:3.098w |
| Electric Parameters | ||
| Voltage:220.90v | Current:0.0800A | Power:10.10w |
| Power Factor:0.5720 | Frequency:49.99Hz | |
| Test Information | ||
| Scan Range:380nm~800nm:1nm | Photometric Method: | |
| Stabilization Time:5 ms | Photometric Condition:Sphere diameter:1.5m,4∏ | |
| Max of Signal:43815(4098) | CCD Integration Time:209.13 ms | |

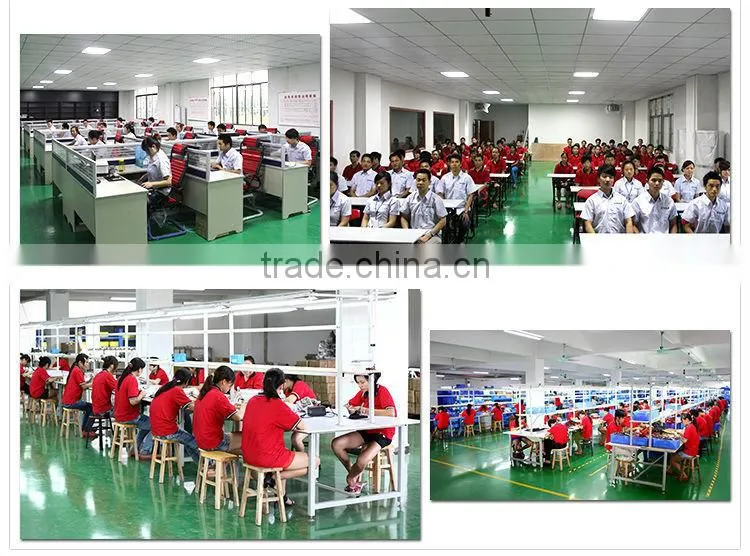

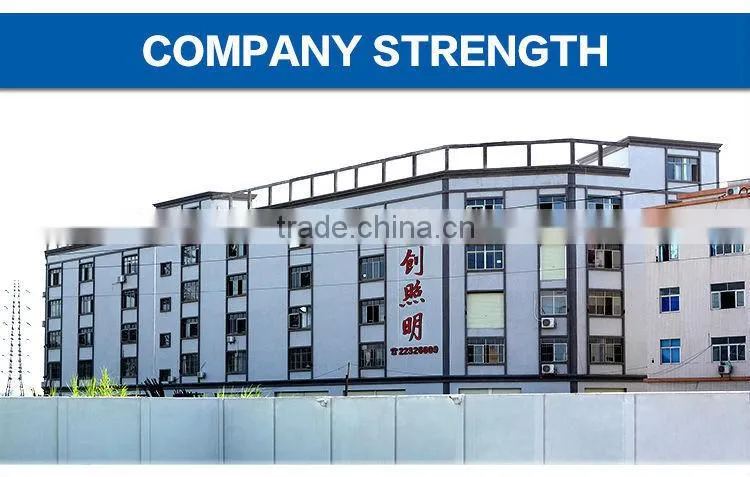

Zhongshan Xinchuangming Electronic Technology Co.,Ltd is professional factory of LED Flood Light, LED Driver, LED Panel Light, COB LED Down Light, COB LED Spot Ceiling Light, Smart LED Bulbs since 2008, located in Guzhen Zhongshan city, the capital world of lighting, with 11000sqm workshop and 200workers.

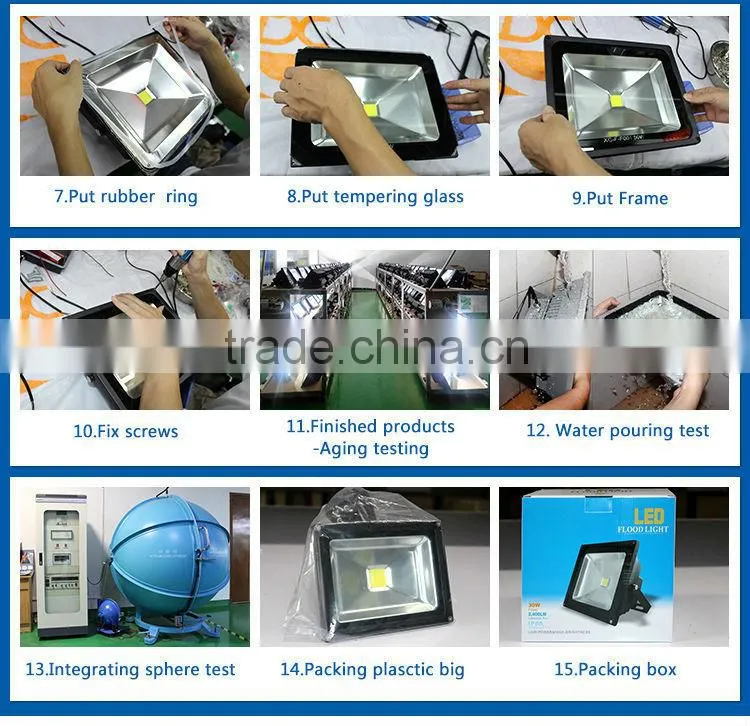

Experienced & professional R&D team have ability to provide you hi-tech customerized OEM & ODM services. Production team have worked on strict quality system of ISO9002. QC dept inspect hi-pot testing, high&low temperature testing under -40~85℃,waterproof testing, aging testing, housing appearance inspection etc, and passed CE & RoHS certification, got EMC & LVD testing reports.
HONGKONG SINCHUM Electronic Technology co.,Ltd registered in Aug. 2014, help us to accelerate international business developing.
As old saying in China, thinking of those who dug the well when you drink the water! Zhongshan Xinchuangming take the responsibility to take the warm, bright, hope lighting to the people around us !
Our services
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-traned and passional sales after sale services who can speak fluent Engligh language.
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
FAQ:
Q1: What is your color temperature?
A: Different color temperature are available for you. Generally, Warm white, natural white and cool white are very popular. Its range as follow:
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Cool white = 6000K-6500K
Q2: Can your led flood light be used in our country?
A: Yes, Our flood light has wide input voltage AC85-265V, DC12V,DC24V. Customerized led drivers are also available!
Q3: What is your warranty for led flood lights?
A: According to your requirements for led lights quality, generally, we offer two, three and five years guarantee.
Q4: What is your MOQ?
A: Our MOQ is 1PC for customer.
Q5: What is your lead time?
A: Sample : 3 working days. Mass order: 7-10 days depend on the order quantity.
Q6: How do you help me to save freight cost?
A: We have several cooperated forwarder, confirm the freight each one, and offer you the most suitable one for you.
Q7: What is your payment terms?
A: West Union, Paypal, T/T are available for your choosing.
Q8:How do you ship the goods and how long does it take?
A: The samples will be shipped by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Why choose us?
1. We begin from led driver supply,we had 6 years experience to make led driver supply, that means we have better sourcing price than the lamp manufacturer.
2. We had made led driver supply with 6 years,our led light source is matched well led driver.
3. Most of our products has CE, ROHS and FCC.
4.Most of our products use Taiwan Epistar Chips or other imported led chips.
5. All our lamps before delivery, they will run into aging room for lighting up about 48 hrs.
6.All our led products with 2 years warranty,some even 3 years warranty.
Thanks for reading. If you need more information or better quotation, please feel free to contact us.
