Manufacture Led Flood Light New Model

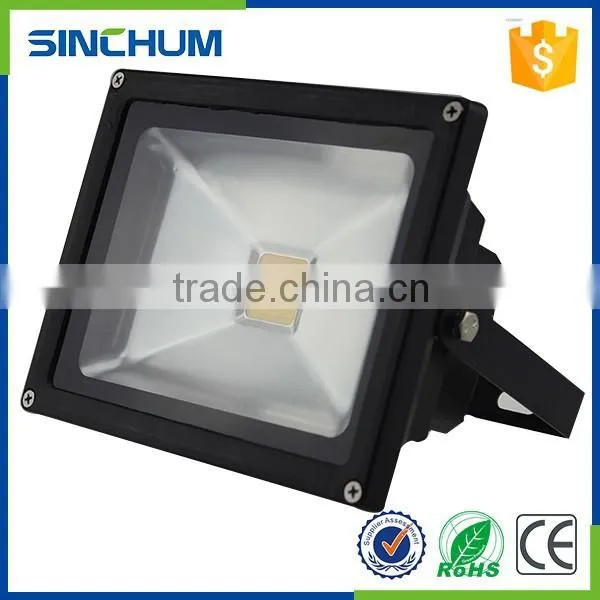

Manufacture Led Flood Light New Model photo-1
US$ 11 - 14 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
COB
Input Voltage(V):
85-265V
Lamp Power(W):
30
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source COB
Input Voltage(V) 85-265V
Lamp Power(W) 30
Lamp Luminous Flux(lm) 2700
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, +60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE
Place of Origin Guangdong, China
Brand Name SINCHUM
Model Number SC-F001-30

flood light new model

manufacture led flood light new model

flood light new model features

1.High brightness with good heat sink .
2.Easy installation and maintenance  .
3.Tempered glass: heat-proof, crash-proof .
4.Steel bracket  .
5.Stainless steel external nuts and screws  .
6.Die casting Aluminum Body .
7.Multiple-color for customers to choose: Red, green, blue, yellow and white.

8. No flickering,No UV,No infra-red radiation. Environment-Friendly and Healthy.

9. High efficiency & low consumption -save 70% power compared with incandescent light.

10. More than 50000 hours long lifespan.



flood light new model specification

Technical Parameters
Item cob 30w led floodlight
Power can make 10W/20W/30W/50W/70W/100W
Material Aluminum
Input Voltage AC85-265V
Luminous Efficiency 80-90LM/
Luminous Flux 800LM/1600LM/2400LM/4000LM/5600LM/6400LM/8000LM
CRI >75Ra
Power Factor >0.5
Color Temp 2700-6500K
Waterproof Rate IP65
Beam Angle 120°
Warranty 2 years
Lifespan 50000hours

Certification

CE,RoHS,LVD,FCC

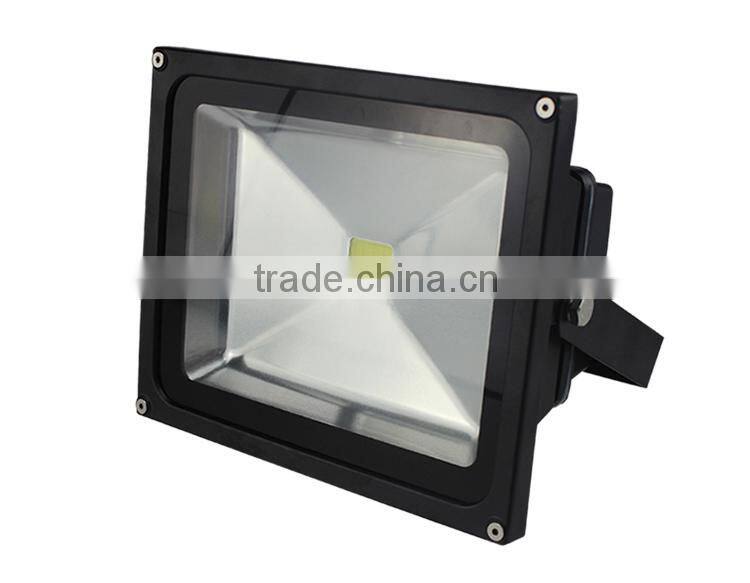

flood light new model display

manufacture led flood light new model

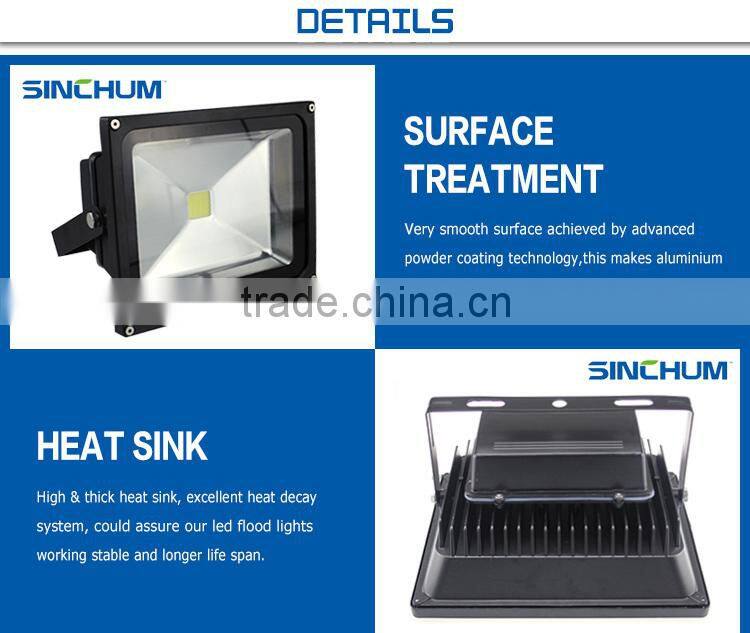

Surface treatment

    Very smooth surface achieved by advanced powder coating technology ,this makes aluminium body with an excellent anti fading effect.

manufacture led flood light new model

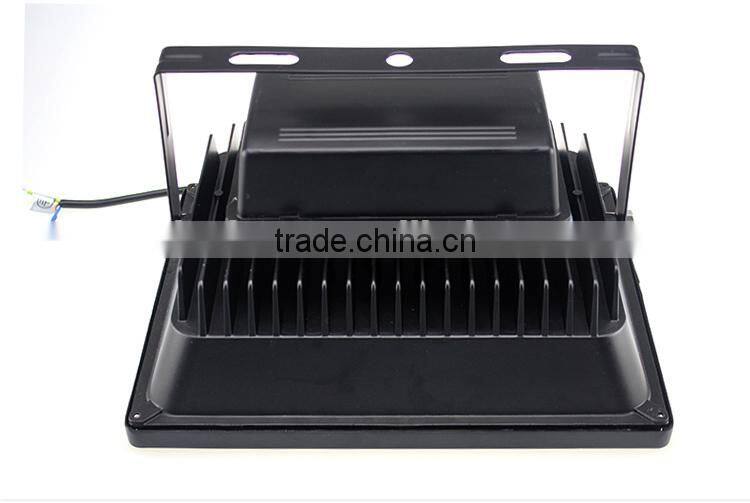

Heat sink

   high & thick heat sink, excellent heat decay system, could assure our led flood lights working stable and longer life span.

manufacture led flood light new model

manufacture led flood light new model

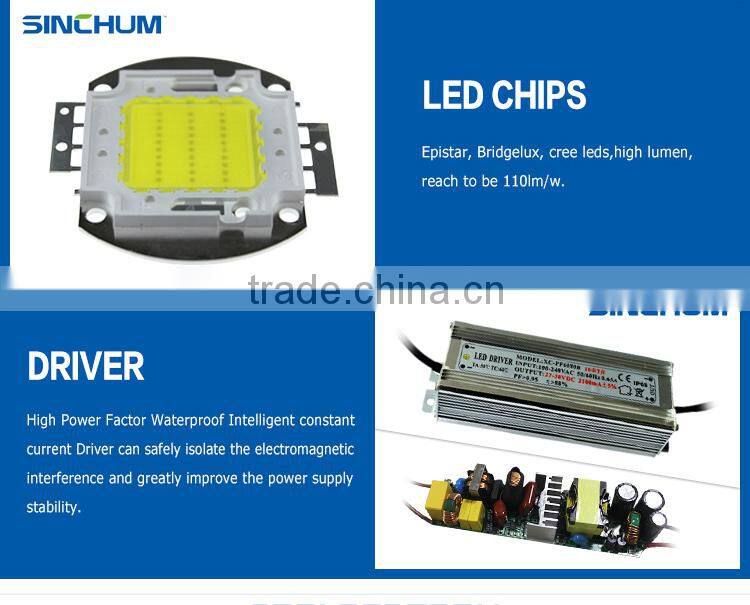

Led chips

   Epistar,Bridgelux,cree leds, high lumen,reach to be 110lm/w.



Driver



     High Power Factor Waterproof Intelligent constant current driver can safely isolate the electromagnetic interference and greatly improve the power supply stability.

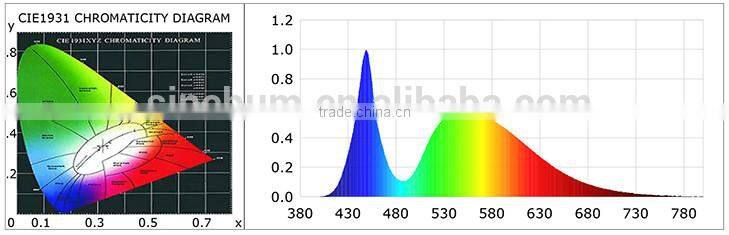

Colorimetric Parameters
Chromaticity coordinates:x=0.3205 y=0.3390 u(u’)=0.1995 v=0.3165 v’=0.4747
CCT:Tc=6052K(duv=0.00446) Color Ratio:R=0.124 G=0.841 B=0.035
Peak Wavelength:449nm Half Bandwidth:24.0nm
Dominant Wavelength:487.5nm Color Purity:0.040
CRI:Ri:Ra=72.1
R1=72  R2=72  R3=68    R4=79   R5=73    R6=61    R7=82   R8=69
R9=0  R10=30  R11=76  R12=34  R13=70  R14=82  R15=70



manufacture led flood light new model

Photometric Parameters
Luminous Flux:2691.6lm Efficiency:89.07lm/w Radiant Power:8.225w
Electric Parameters
Voltage:220.80v Current:0.1400A Power:30.22w
Power Factor:0.9810 Frequency:49.99Hz
Test Information
Scan Range:380nm~800nm:1nm Photometric Method:
Stabilization Time:5 ms Photometric Condition:Sphere diameter:1.5m,4∏
Max of Signal:42355(3956) CCD Integration Time:89.85 ms

 manufacture led flood light new modelmanufacture led flood light new model

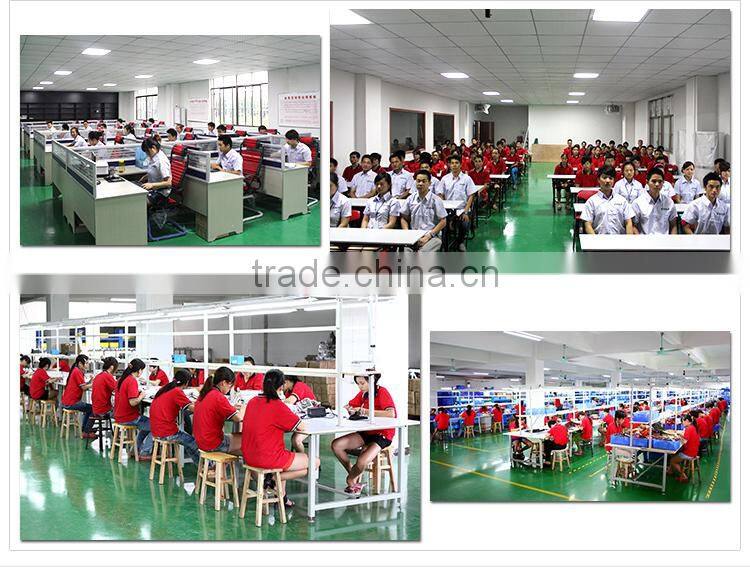

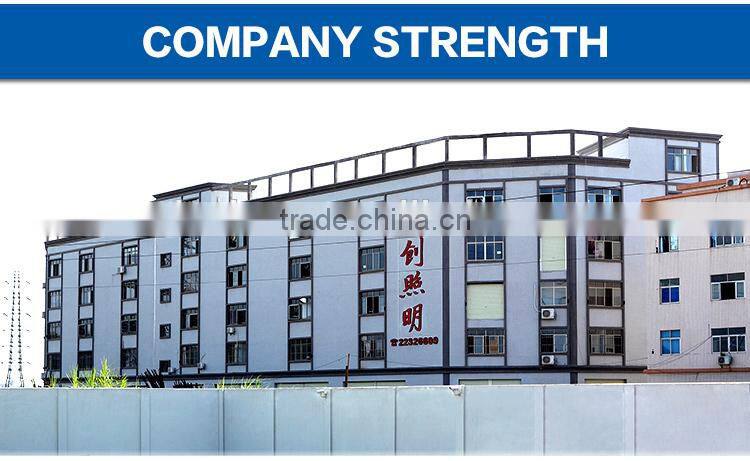

Zhongshan Xinchuangming Electronic Technology Co.,Ltd is professional factory of LED Flood Light, LED Driver, LED Panel Light, COB LED Down Light, COB LED Spot Ceiling Light, Smart LED Bulbs since 2008, located in Guzhen Zhongshan city, the capital world of lighting, with 11000sqm workshop and 200workers.



Experienced & professional R&D team have ability to provide you hi-tech customerized OEM & ODM services. Production team have worked on strict quality system of ISO9002. QC dept inspect hi-pot testing, high&low temperature testing under -40~85℃,waterproof testing, aging testing, housing appearance inspection etc, and passed CE & RoHS certification, got EMC & LVD testing reports.



HONGKONG SINCHUM Electronic Technology co.,Ltd registered in Aug. 2014, help us to accelerate international business developing.



As old saying in China, thinking of those who dug the well when you drink the water! Zhongshan Xinchuangming take the responsibility to take the warm, bright, hope lighting to the people around us !



manufacture led flood light new model

manufacture led flood light new model

manufacture led flood light new model



manufacture led flood light new model

Our services



1. For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We own well-traned and passional sales after sale services who can speak  fluent Engligh  language.

3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.

manufacture led flood light new model
