Crusher machine of wood process for wood pallet block making machine from woodworking machinery
- Easy to operate, Wide application
- More model and choice to meet customer requirements
- Wood crushing machine for sawdust wood cutting machine for shavings wood grinding machine have two feeding port
Crusher machine of wood process for wood pallet block making machine is our newly designed machine, there are two feeding ports, one is suitable for processing big round wood, second one for grinding the branch and smaller waste board.
The sieve’s diameter can be from 1mm to 20mm of wood crusher. The material can be kinds of timber, wood leftovers, branch, hub, bark, straw, timer, bamboo and so on.
Principle of Crusher machine of wood process for wood pallet block making machine
Crusher machine of wood process for wood pallet block making machine is consist of cutting mechanism, crushing mechanism, highly efficient crushers combine the methods blade cutting and high speed airflow impact, which at the same time finish the process of separation and selection. In the process of blade cutting, the rotator generates high-speed flow, with which the materials go through the process of acceleration and repeated impact.
Parameters of Crusher machine of wood process for wood pallet block making machine
Model | MRC600 | MRC800 | MRC1000 |
Power | 18.5-22kw | 30-37kw | 45kw |
Rotation Speed | 1400r/min | 1400r/min | 1000r/min |
Capacity | 0.8-1.2t/h | 1.5-2t/h | 2-3t/h |
Weight | 1500kg | 2200kg | 3500kg |
Dimension | 2.5*2*1.2m | 2.8*2.2*1.5m | 3*2.5*1.7m |

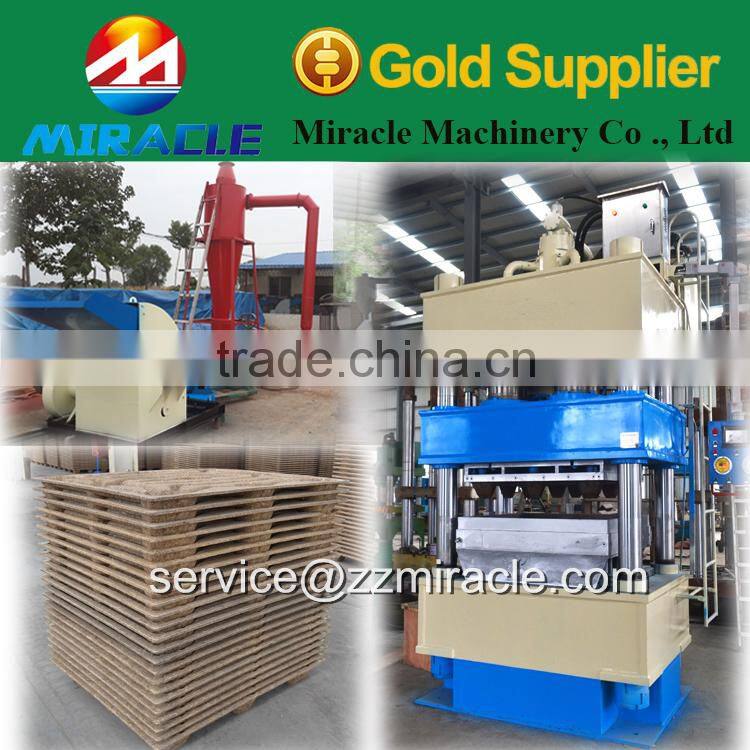

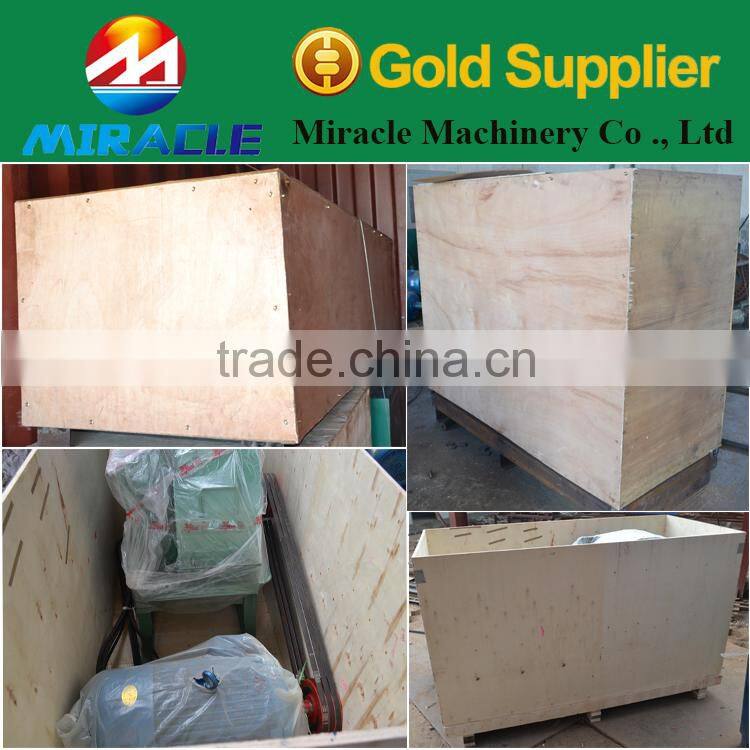

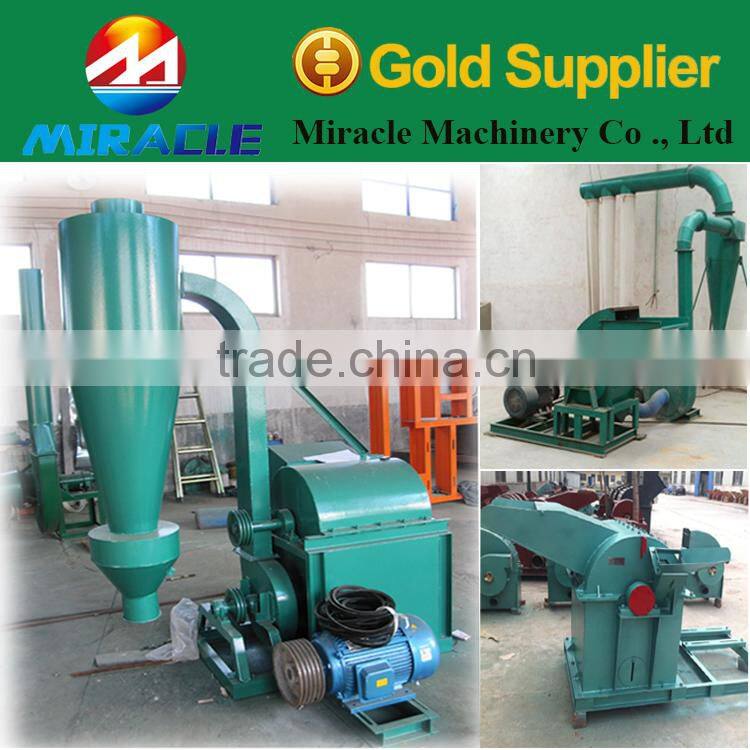

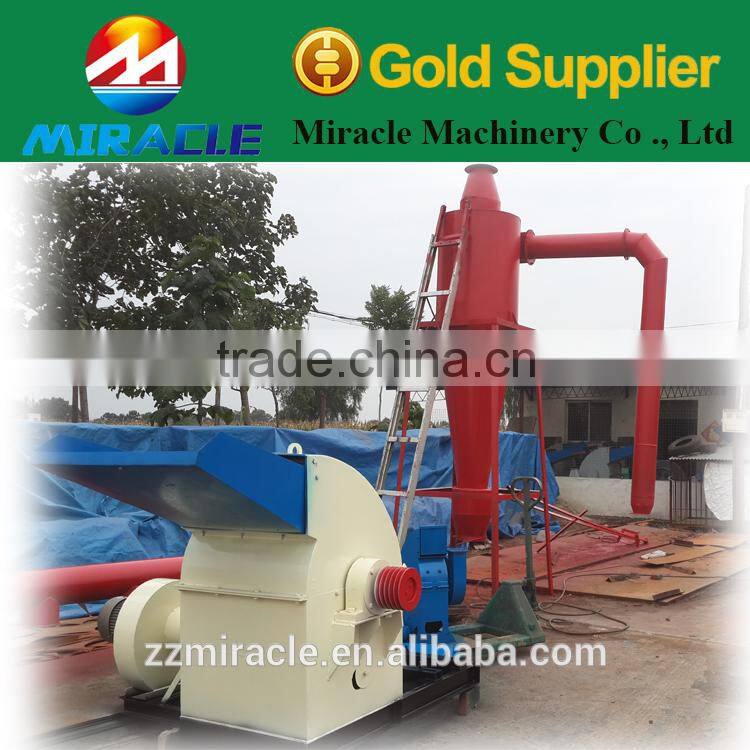

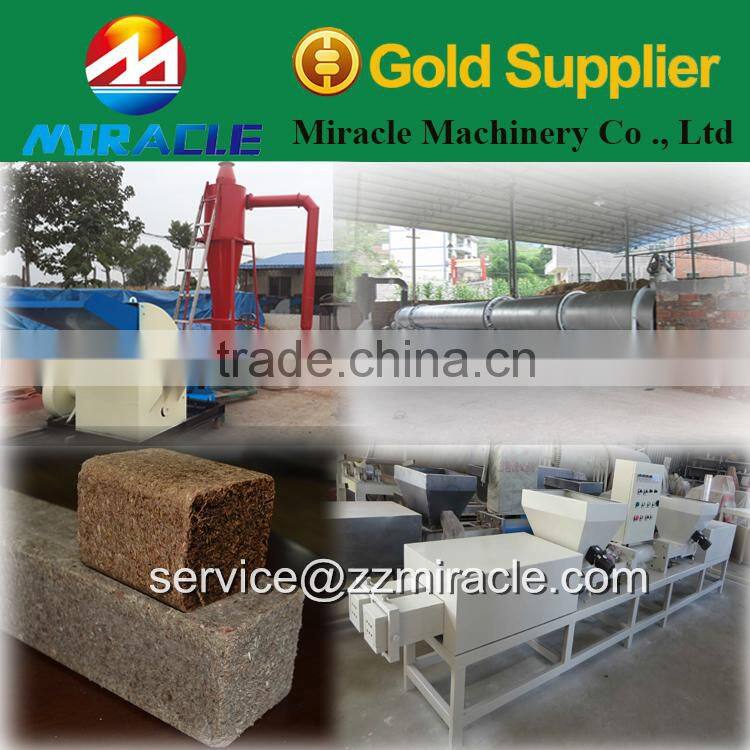

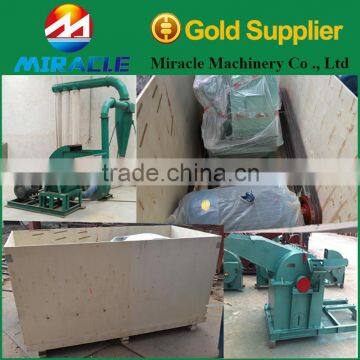

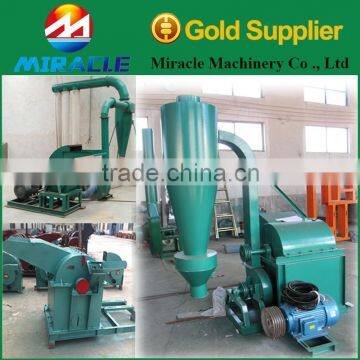

Photos of Crusher machine of wood process for wood pallet block making machine
We provide the integrated customer service system
- Pre sales: Consulting, Designing, Equipment selection, Technology Discussion.
- During sales: programs and drawings confirmed, installation guide, equipment debugging.
- After sales: Testing acceptance, customer training, technical exchanges, regular visits.
Guarantee and maintance of Crusher machine of wood process for wood pallet block making machine
- Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
- Other malfunctions which are caused by operation mistakes, man-made problems will be responsible for clients-self.
- Crusher machine of wood process for wood pallet block making machine, All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time.
- If you are caught in some problems when using our products, welcome to contact us at any time.
Pls contact us if you are interested in wood processing equipments.
