Tungsten carbide brazed saw tips C430
Product introduction:
Type |
Dimension(mm) |
Approx unit weight(g) |
||||||
l |
t |
b |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
C420 |
20.0 |
12.0 |
3.0 |
5.0 |
13.2 |
13.0 |
11.7 |
10.9 |
C425 |
25.0 |
16.0 |
4.0 |
5.0 |
21.1 |
20.7 |
17.8 |
16.5 |
C430 |
30.0 |
20.0 |
5.5 |
6.0 |
38.7 |
38.0 |
33.0 |
30.7 |
C435 |
35.0 |
25.0 |
7.5 |
6.0 |
55.3 |
54.3 |
48.0 |
44.7 |
C442 |
42.0 |
35.0 |
12.5 |
8.0 |
128.0 |
127.0 |
110.1 |
99.0 |
C450 |
50.0 |
42.0 |
15.0 |
8.0 |
185.0 |
182.0 |
159.1 |
143.1 |

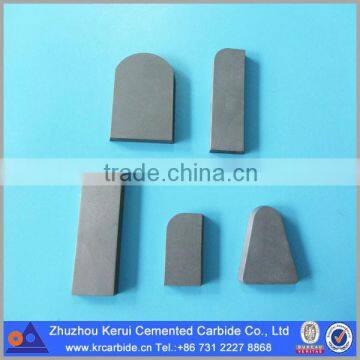

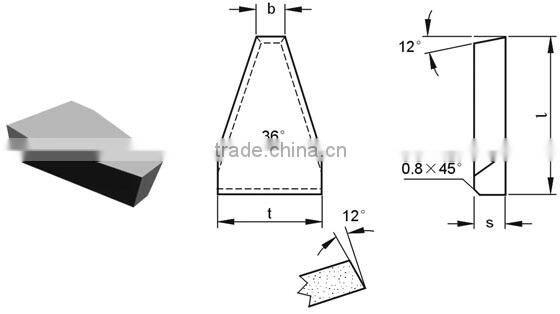

Product picture:
Product application:
It is used for turning of cast iron,steel, stainless steel,nonferrous metal.
Other types of Tungsten carbide brazed tips:
Physical and mechanical properties of main grades:
Reference packaging for our Tungsten carbide brazed tips C430:
Product advantages for our Tungsten carbide brazed tips C430:
1) efficient machining, good high-temperature stability;
2) easy to weld, no crack or chipping;
3) smooth surface of work piece.
Tips for use of brazed cutting tool:
1) structure of brazed cutting tool should have enough rigidity;
2) the brazed tips should be fixed strongly onto the holder;
3) check and ensure good condition of the holder before brazing;
4) choose the proper welding material;
5) choose the proper welding flux;
6) use correct sharpening method;
7) mount the brazed cutting tool properly;
8) resharpening the brazed cutting tool properly.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
4. Gurantee: Full payment refund if any quality problem.
Certificates:
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
