K20 C304 brazed carbide tips for cutting tools

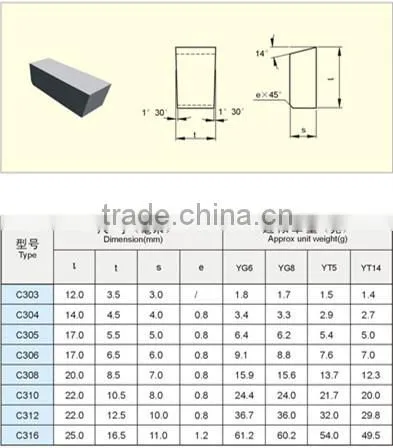

Product introduction:
Type |
Dimension(mm) |
Approx unit weight(g) |
||||||
l |
t |
s |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
C303 |
12.0 |
3.5 |
3.0 |
/ |
1.8 |
1.7 |
1.5 |
1.4 |
C304 |
14.0 |
4.5 |
4.0 |
0.8 |
3.4 |
3.3 |
2.9 |
2.7 |
C305 |
17.0 |
5.5 |
5.0 |
0.8 |
6.4 |
6.2 |
5.4 |
5.0 |
C306 |
17.0 |
6.5 |
6.0 |
0.8 |
9.1 |
8.8 |
7.6 |
7.0 |
C308 |
20.0 |
8.5 |
7.0 |
0.8 |
15.9 |
15.6 |
13.7 |
12.3 |
C310 |
22.0 |
10.5 |
8.0 |
0.8 |
24.4 |
24.0 |
21.7 |
20.0 |
C312 |
22.0 |
12.5 |
10.0 |
0.8 |
36.7 |
36.0 |
32.0 |
29.8 |
C316 |
25.0 |
16.5 |
11.0 |
1.2 |
61.2 |
60.2 |
54.0 |
49.5 |

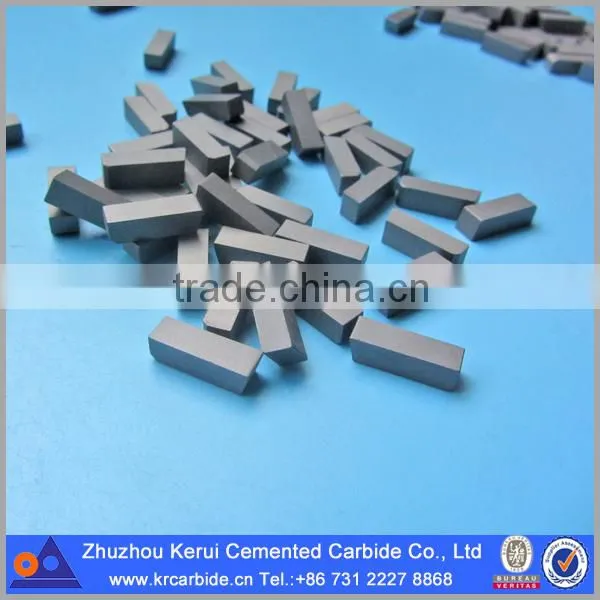

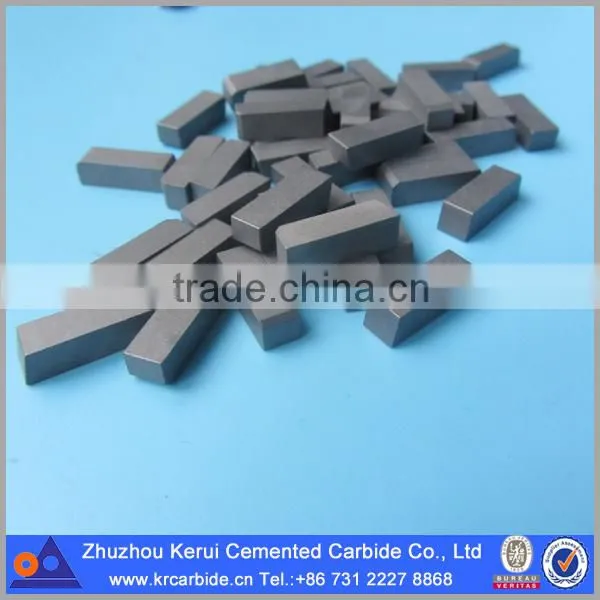

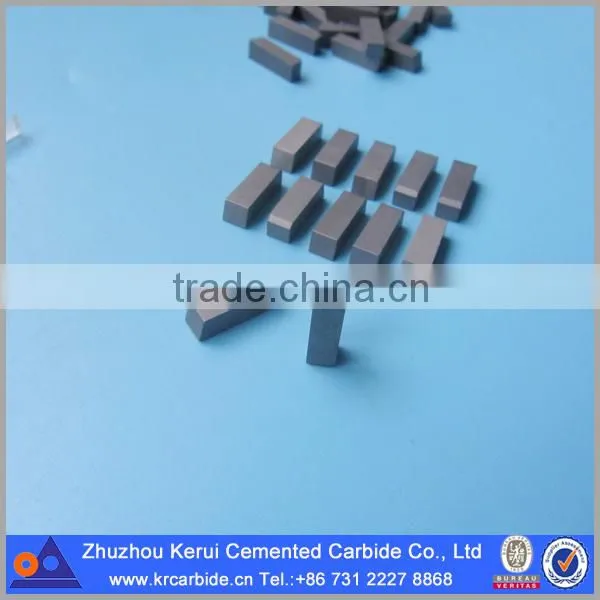

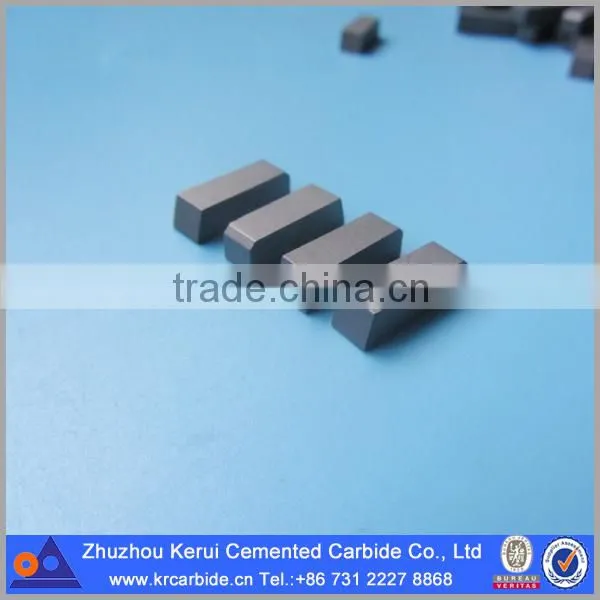

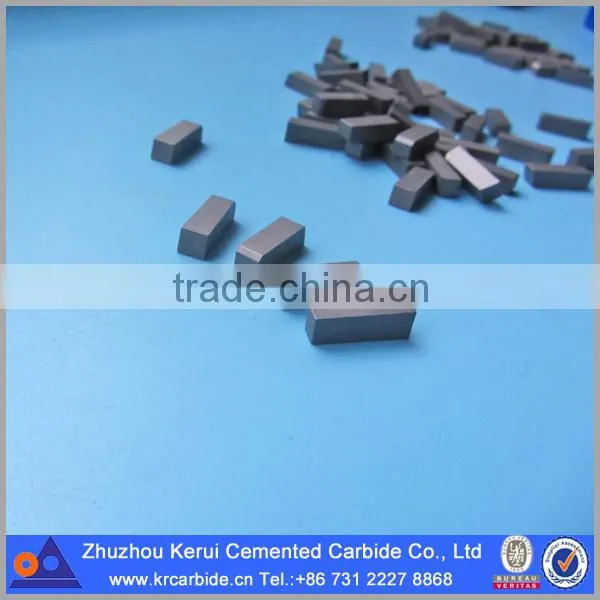

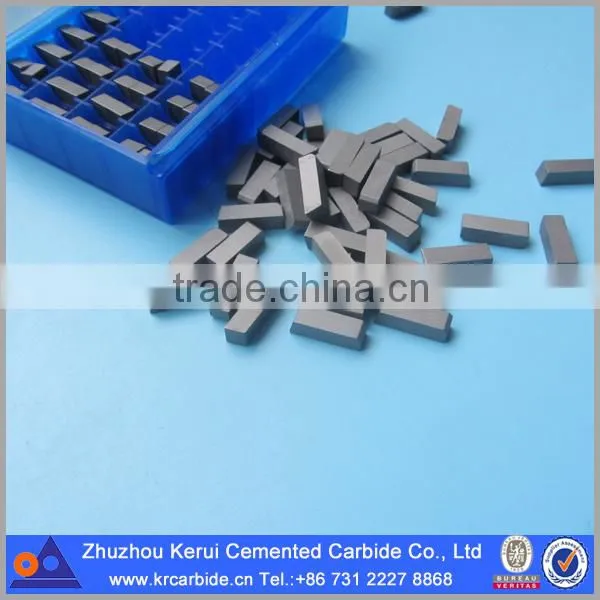

Product pictures:
Product application:
It is used for turning of cast iron,steel, stainless steel,nonferrous metal.
Other types of Cemented carbide brazed tips C305:
Physical and mechanical properties of main grades:
| ISO Code | Grade | Density | Hardness | T.R.S | Performance & application recommended |
| g/cm3 | HRA(HV) | MPα | |||
| K05 | YG3X | 15.1 | 91.5 | 1300 | Suitable for the finishing of cast iron and nonferrous metals and Yd05 can be used for the machining of hardening steel. |
| YG3X | 15 | 90.5 | 1300 | ||
| K10 | YG6X | 14.8 | 91 | 1560 | For the finishing & semi-finishing of cast iron and non ferrous metals and also for the machining of manganese steel and hardening steel. |
| YG6A | 14.7 | 91.5 | 1510 | ||
| K15 | YG6 | 14.9 | 89.5 | 1670 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| K20 | YG8 | 14.6 | 89 | 1840 | |
| M10 | YS2T | 14.4 | 91.5 | 1960 | Suitable for the finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YM10 | 12.2 | 91.5 | 1350 | ||
| YW1 | 13 | 91.5 | 1290 | ||
| M20 | YW2 | 12.9 | 90.5 | 1460 | the grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
| P10 | YT05 | 12.6 | 92.5 | 1260 | Suitable for the finishing and semi-finishing of steel and cast steel with a moderate feed rate and a rather high cutting speed. |
| YT15 | 11.3 | 91 | 1300 | ||
| P25 | YT14 | 11.4 | 90.5 | 1400 | Suitable for the finishing and semi finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel. |
| YS25 | 13 | 90.5 | 1780 | ||
| P25 | YT5 | 12.8 | 89.5 | 1570 | suitable for the heavy duty rough turning of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions |
| P40 | YC45 | 13.1 | 1320 | 1650 | Suitable for the heavy duty turning of steel and cast steel with a big feed rate and also for face milling. |
Reference packaging for our brazed carbide tips C304:
Product advantages for our K20 C304 brazed carbide tips:
1) efficient machining, good high-temperature stability;
2) easy to weld, no crack or chipping;
3) smooth surface of work piece.
Tips for use of K20 C304 brazed carbide tips:
1) structure of brazed cutting tool should have enough rigidity;
2) the brazed tips should be fixed strongly onto the holder;
3) check and ensure good condition of the holder before brazing;
4) choose the proper welding material;
5) choose the proper welding flux;
6) use correct sharpening method;
7) mount the brazed cutting tool properly;
8) resharpening the brazed cutting tool properly.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
4. Gurantee: Full payment refund if any quality problem.
Certificates:
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
