Hot press waste wood pallet block making machine for pallet processing line
Introduction of sawdust/wood shavings wooden pallet block forming machine
Pallet block forming machine is used to make the block for the pallet which is used into the transportation.
It adopts sawdust or wood chips as raw material, hydraulically pressed by high temperature up and down into a long log, and then sawed intothe required specification. The pallet block's size can be made by customer's demands.
We could offer machines of the whole production line of the Sawdust/wood shavings wooden pallet block forming machine according to customer's demands.
The raw material for sawdust/wood shavings wooden pallet block forming machine
Sawdust, wood shavings, waste wood, used pallet and so on.

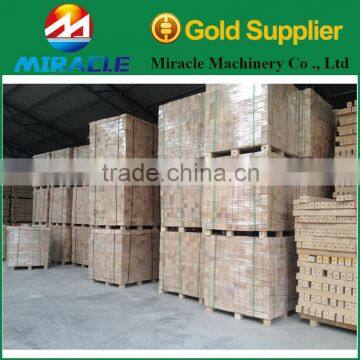

The final products of sawdust/wood shavings wooden pallet block forming machine
Usually the size range from 75mm to 145mm, the common size of block is 75*75mm, 90mm*90mm, 100*100mm, 90*90mm, 90*100mm, 100*100mm, customer can chose the specification with hole or without holes, and our technical team could design and customize the other different size according to customers’ demand.
The advantages of final product from sawdust/wood shavings wooden pallet block forming machine
- a, Free of fumigation. Since the block is made by hot pressing, it is free of fumigation.
- b, It could recycle the wood waste efficiently.
- c, Easy to operate. one person could handle 3 machines.
- d, Density of final product could get to 550-1000kg/CBM. You could choose what you need.
- e, Identify products by the European Association which reached EPAL stringent requirements.
Process of producing wood pallet block
1.Crushing---Crush wood branches, biomass, used pallets, wood logs, waste wood etc into powder, wood
shavings or wood chips;
2. Drying---Dry the raw materials into certain moisture as 10%;
3. Glue Mixing---Mix materials with glue water;
4. Pressing---Press materials into block shape as your demand size.
Parameters of sawdust/wood shavings wooden pallet block forming machine
Model |
Block size |
Voltage |
Capacity |
Weight |
Dimension |
MRC-1 |
75*145 |
380v 50hz
|
2m³/24h |
1000kg |
4800*600*1420mm |
MRC-2 |
75*145 |
4m³/24h |
1500kg |
4800*700*1420mm |
|
MRC-3 |
75*145 |
4-9m³/24h |
2000kg |
4800*900*1420mm |

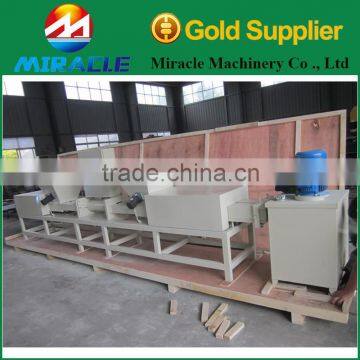

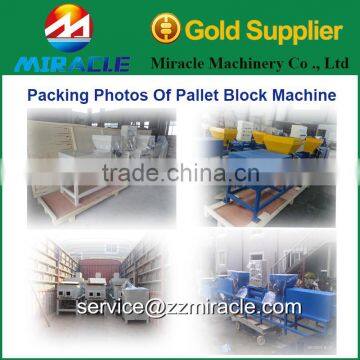

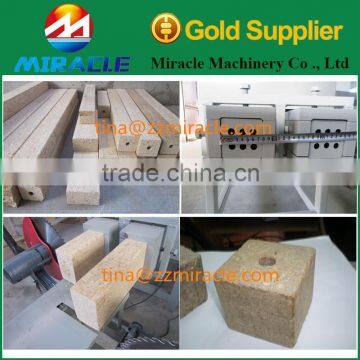

Photos of sawdust/wood shavings wooden pallet block forming machine
We provide the integrated customer service system
- Pre sales: Consulting, Designing, Equipment selection, Technology Discussion.
- During sales: programs and drawings confirmed, installation guide, equipment debugging.
- After sales: Testing acceptance, customer training, technical exchanges, regular visits.
Guarantee and maintance of sawdust/wood shavings wooden pallet block forming machine
- Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
- Other malfunctions which are caused by operation mistakes, man-made problems will be responsible for clients-self.
- All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time.
- If you are caught in some problems when using our products, welcome to contact us at any time.
