ZhuZhou Kerui Cemented Carbide manufacture of carbide lathe inserts
Detail information of our cemented carbide lathe inserts:
1).hot selling: cemented carbide lathe inserts;
2).Grade: YG6X/YG6/YG8/YK10/YK20/YK25/YK40/YG6C/YG8C/YG11C/YG13C/YG15C/ZD15;
3).Application field: for scrap glass; for mining drill tooling bit; mining machinery parts
4).Free samples available;
5).MOQ:50kg.

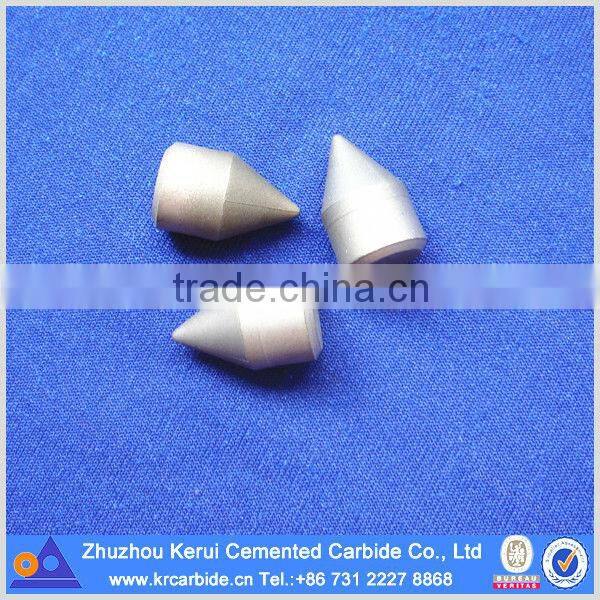

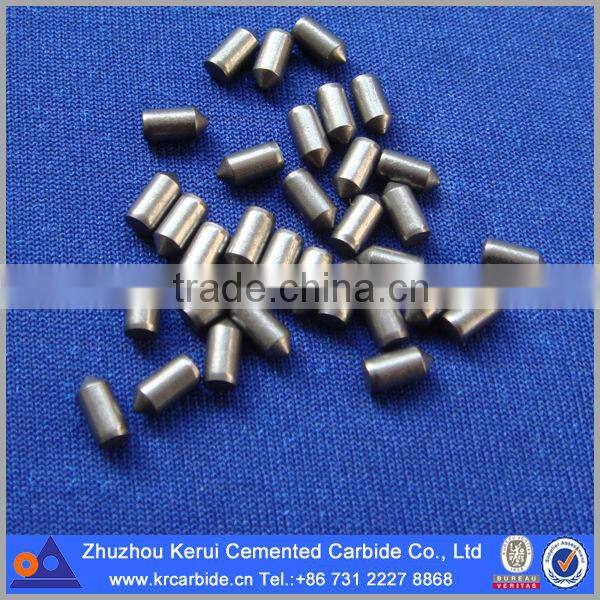

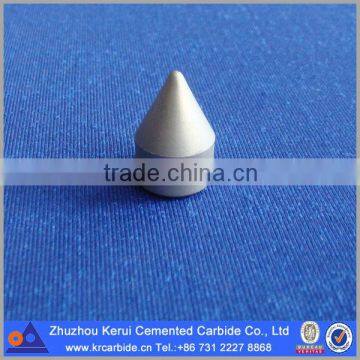

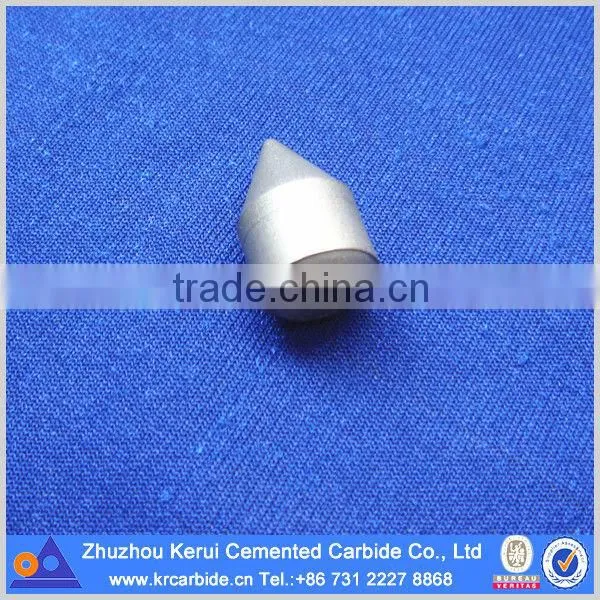

6).Detail pictures show to you:

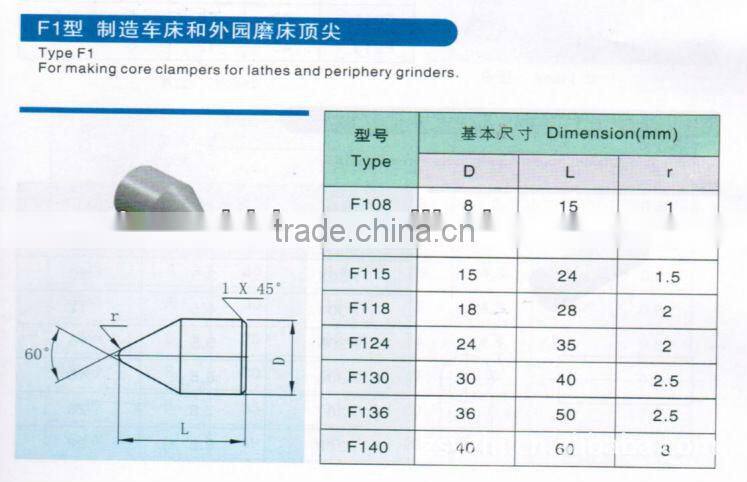

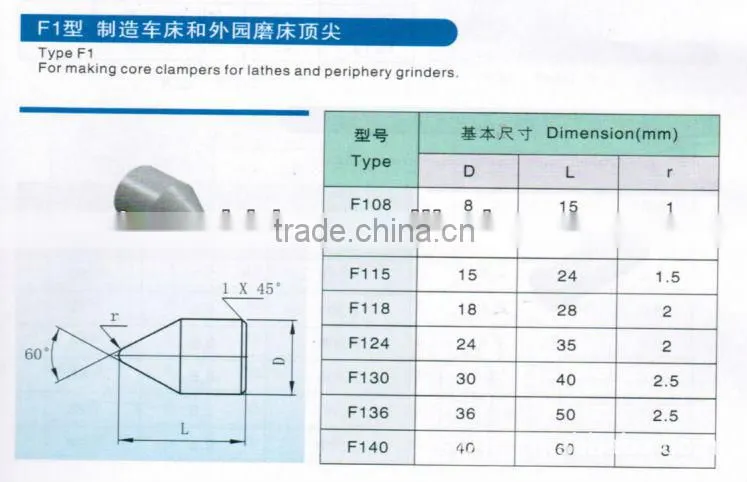

ZhuZhou Kerui Cemented Carbide manufactures carbide tipped center for making core clampers,
for lathes and periphery grinders,

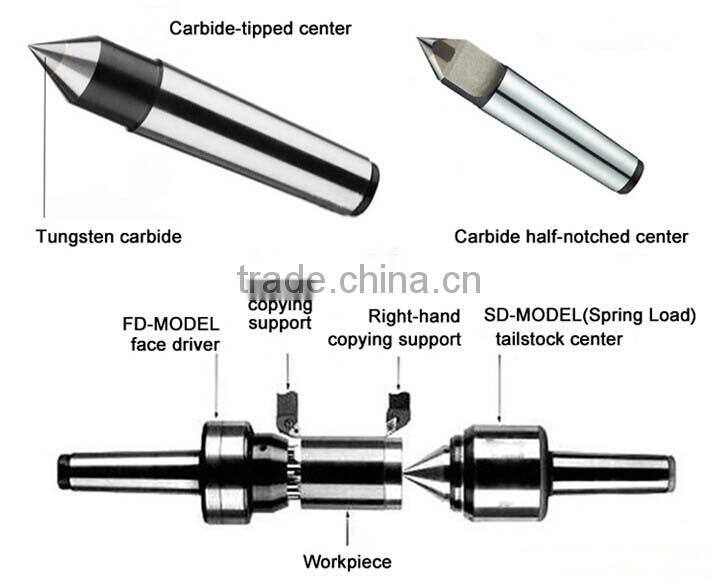

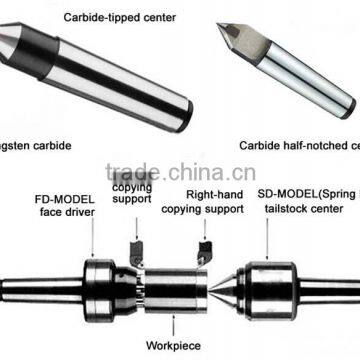

We put cemented carbide lathe inserts brazing on the holder like below:
Physical & Mechanical properties
( mining machinery parts of Tungsten Carbide Grade for your choose):
| Grade | ISO | Density g/cm3 | Hardness HRA> | T.R.S>N/mm² | Performances or recommended applications | |||||
| Grade | ||||||||||
| Conventional grades | ||||||||||
| YG3 | K05 | 15.20-15.40 | 91.5 | 1400 | Medium grain, for finishing machining of cast iron and non-ferrous metals | |||||
| YG3X | K05 | 15.20-15.40 | 92 | 1300 | Fine grain, for finishing machining of cast iron and non-ferrous metals | |||||
| YG4C | 15.05-15.25 | 90 | 1620 | Coarse grain, for percussion drill bits and mining inserts | ||||||
| YG6 | K20 | 14.85-15.05 | 90.5 | 1860 | Medium grain, for rough machining of non-ferrous metals | |||||
| YG6A | K10 | 14.85-15.05 | 92 | 1600 | Fine grain, for drawing dies and woodworking tools | |||||
| YG6X | K10 | 14.85-15.05 | 91.7 | 1800 | Fine grain, for cutting of non-ferrous metals | |||||
| YG7 | K20 | 14.65-14.85 | 90 | 1900 | Medium grain with good wear-resistance and good impact- resistance | |||||
| YG8 | K30 | 14.60-14.85 | 89.7 | 2060 | Medium grain, for drawing dies | |||||
| YG8A | K30 | 14.6-14.85 | 90 | 2000 | Medium grain, for the drawing dies and wood-working | |||||
| YG8X | K30 | 14.60-14.85 | 90.5 | 2000 | Fine grain, high hardness and oxidation resistance at high temperatures and good impact toughness | |||||
| YG8C | 14.55-14.75 | 88 | 2160 | Coarse grain, for button drill bits and the mining inserts | ||||||
| YG10 | K40 | 14.25-14.55 | 88 | 2160 | Medium grain, for machining gray cast iron with a low hardness | |||||
| YG11 | K40 | 14.30-14.50 | 87.5 | 2260 | Medium grain, for wear parts and mining tools | |||||
| YG11C | 14.20-14.40 | 87 | 2260 | Coarse grain, for mining inserts | ||||||
| YG12 | K40 | 14.10-14.40 | 87 | 2260 | Medium grain, for rough machining of non-ferrous metals | |||||
| YG15 | 13.95-14.15 | 86.5 | 2400 | Medium grain, for mining tools, cold heading and punching dies | ||||||
| YG20 | 13.45-13.65 | 84 | 2480 | Medium grain, for non-standard dies and moulds, cold heading and punching dies | ||||||
| YG20C | 13.40-13.60 | 82.5 | 2480 | Coarse grain, for die and moulds making screws of a diameter of 20-50mm | ||||||
| YG22 | 13.15-13.55 | 83 | 2480 | Medium grain, for non-standard dies and moulds, cold heading and punching dies | ||||||
| High-performance grade | ||||||||||
| YD40 | 13.10-13.55 | 82.5 | 2480 | High impact resistance, for cold heading and punching dies and hot heading and punching dies | ||||||
| YD45 | 13.25-13.65 | 83 | 2480 | High impact resistance, a special grade for hot heading dies | ||||||
| YG011 | K10 | 14.55-14.75 | 92.5 | 1840 | Ultra-fine grain size, for machining glass fiber reinforced plastics, titanium alloys, hardened steel with a high hardness | |||||
| YG012 | K20 | 14.25-14.55 | 91 | 2160 | Ultra-fine grain, for milling cutters and the hole-machining tools | |||||
| YG013 | K10 | 14.35-14.60 | 91.5 | 2060 | Ultra-fine grain with good wear resistance and toughness, for wood-working tools | |||||
| YG014 | K05 | 14.65-14.95 | 93 | 1760 | Ultra-fine grain, for finishing machining of non-ferrous metals and for wood-working tools | |||||
| Cutting steel class grade | ||||||||||
| YT03 | P10 | 14.75-14.95 | 91.5 | 1860 | Suitable for the semi-finishing and finishing machining of non-ferrous metals, stainless steel | |||||
| YT5 | P30 | 11.50-13.20 | 90 | 1750 | Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions | |||||
| YT14 | P20 | 11.20-11.80 | 91 | 1550 | Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate | |||||
| YT15 | P10 | 11.10-11.60 | 91.5 | 1500 | Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended | |||||
| YS25 | P25 | 12.80-13.20 | 91 | 1860 | A special grade for mining steel and cast steel | |||||
| SC30 | P30 | 12.70-13.20 | 90 | 1600 | Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate | |||||
| YC40 | P40 | 13.00-13.40 | 89.5 | 1860 | Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well | |||||
| YW1 | M10 | 12.85-13.40 | 92 | 1380 | Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel | |||||
| YW2 | M20 | 12.65-13.35 | 91 | 1680 | Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs | |||||
| YW3 | M10 | 12.85-13.10 | 92 | 1420 | It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel | |||||
Producing process:
Packing details:
Quality Guarantee:
We have Professional Inspector that lead a team doing whole inspect from orginal virgin materials to
Semi-product to finish product.
Belowing is our Professinal Quality control equipments show you what's mainly test we have been done:
About Us:
Zhuzhou kerui Cemented Carbide Co., Ltd is a manufacture professional produce with cemented carbide lathe carbide inserts located inZhuzhou City, the world-renowned research and production base of cemented carbide. Having been involved in this field for over 10 years.
So far, our carbide lathe inserts are exported to Germany, USA, India and Mid-Eeast countries, and enjoying high reputation with good qualilty.It is specialized in manufactureing and exporting of Machinery tools and cutting tools.Carbide button,Carbide for mining,Carbide drill bits.
