yg6 carbide insert cutter brazing tips for wood cutter
We are Professional manufacture of brazed Carbide tips, stone cutting inserts,sand making machine alloy strip,wear parts,carbide mining tools and OEM production as drawing and request with high quality.
Types of ISO standard brazed Carbide tips: A,B,C,D,E;
Optional Grades of Carbide insert cutter brazing tips: K10/K20/K30/P10/P20/P30/M10,M20 etc;
Application fields of Carbide insert cutter brazing tips: for wood cutter,for the turning of cast iron,steel,stainless steel,nonferrous metal and nonmetal.
1.Advantages of yg6 carbide insert cutter brazing tips for wood cutter :
1.stable and trustable quality;
2.made from 100% virgin raw material;
3.all products go through in-process and final inspection;
4.free online technical service available.
Our Business scope has exported to North America,Europe,Mid-East and Africa.
We always expect long term relationship with customers, you can find the best prices, quality and service here and it will be simple and easy for you to do business with us.
2.Physical and mechanical properties of main grades:
Grade |
ISO grade |
Density | Hardness | TRS |
(g/cm3) |
(HRA) |
(Mpa) |
||
YG6 |
K20 |
14.95 |
91.0 |
1800 |
YG6X |
K10 |
14.95 |
92.0 |
1800 |
YKM6A |
K10 |
14.95 |
92.5 |
1800 |
YG8 |
K30 |
14.7-14.8 |
90.0 |
1950 |
YT5 |
P30 |
13 |
90.8 |
1900 |
YT14 |
P10-20 |
11.5 |
91.5 |
1500 |
YT15 |
P10-20 |
11.3 |
91.8 |
1450 |
YW1 |
M10-20 |
13.1 |
91.5 |
1600 |
YW2 |
M10-20 |
13.1 |
91.0 |
1600 |
YS25 |
P25 |
12.8 |
91.5 |
1900 |
YC30S |
P30 |
12.8 |
91.0 |
2000 |
ZP35 |
P35 |
12.8 |
91.0 |
2000 |
YC40 |
P35 |
13.2 |
90.0 |
1850 |
3.Related Products details:
1)type A:
Aplication fields:
A1:For making periphery turning tools, boring tools and grooving tools.
A2: for making boring tools and end turning tools.
A3: For making end and periphery turning tools.
A4: for making periphery turning tools, boring tools and end turning tools.
A5: for making straight shank periphery turning tools. Boring through tools and mounting type end milling tools.
A6: for making boring tools and periphery turning tools.

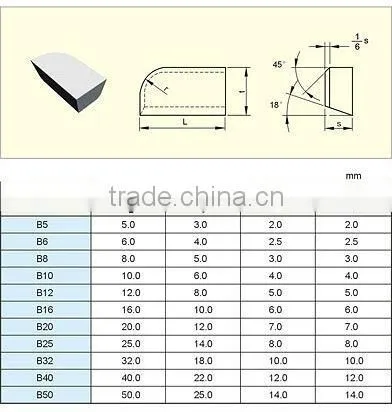

2)type B:
Just mirrol as type A.
Aplication fields:
B1: for making forming turning tools, planning and milling tools for machining dove tail grooves.
B2: for making forming turning tools for machining concave radii and forming turning tools for railway wheels.
B3: for making turning tools for radius machining.

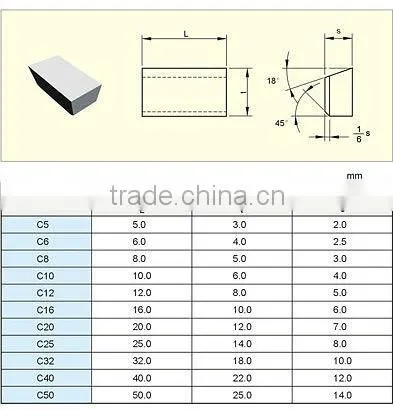

3) Type C:
Aplication fields:
C1: for making threading tools & turning tools for finishing of peripheries.
C2: for making finishing turning tools and trapezoid threading turning tools.
C3: for making parting tools and grooving tools.
C4: for making grooving tools for machining wheels of triangular belts.
C5: for making turning tools for the grooving of rolls in wheat flour production

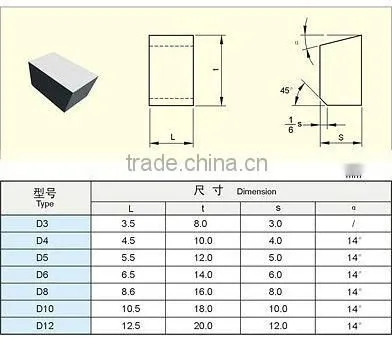

4) Type D:
Aplication fields:
D1: for making end milling tools, periphery turning tools and boring tools.
D2: for making 3-edged milling tools, milling tools for T grooves and adjustable boring tools.

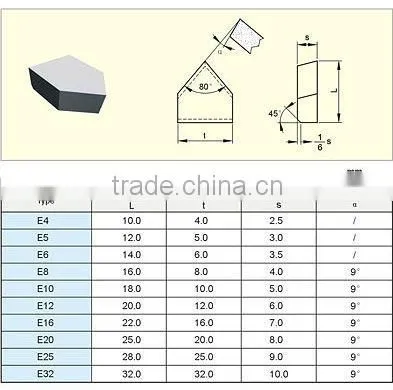

5) Type E:
Aplication fields:
E1: for making straight flute drills for machining non-metal and metal materials.
E2: for making twist drills and straight flute drills.
E3: for making keyway milling tools, end milling tools and broaching bits.
E4: for making broaching drill bits.
E5: for making hand-operated reamers and automatic reamers.
More related yg6 carbide insert cutter brazing tips:
4.Packing:
packing tips in a plastic pallet as below,and then transport by Carton.
5.Quality control system:
Everything single piece will be inspected in and after production to make sure it can match your requests and we guarantee full payment returned if any quality problems.
Note: Please kindly advise the grade or using purpose for quotation.
