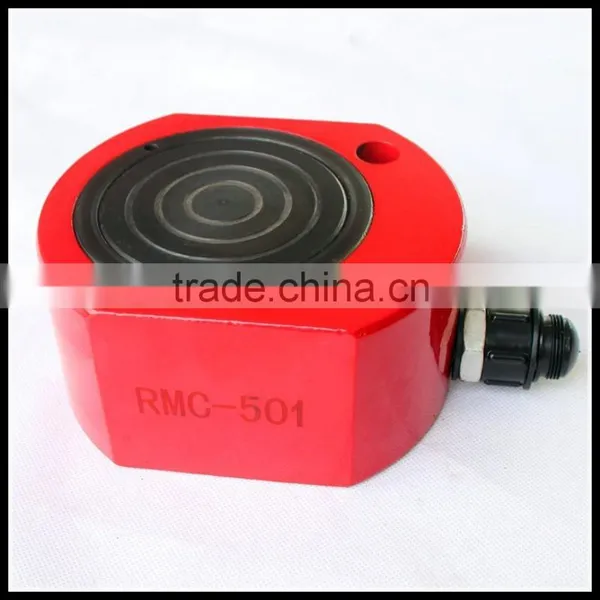

50 Ton RMC Super Thin Hydraulic Jack

Name: 50 Ton RMC Super Thin Hydraulic Jack
Brand: koio
SKU: 101946103

US$ 74.1 - 83.3 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

koio

Model Number:

RMC-501

Yiwu Weigang Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name koio

Model Number RMC-501

Type Hydraulic Jack

Min Height 69mm

Max Height 85mm

Product Description

RMC Super Thin Single Acting Hydraulic Cylinder

1. Low height is suit for working in narrow space; Short stroke can block up thimes and times.

2. The surface of plunger is finished with chrome plate to protect the using of longevity of the product.

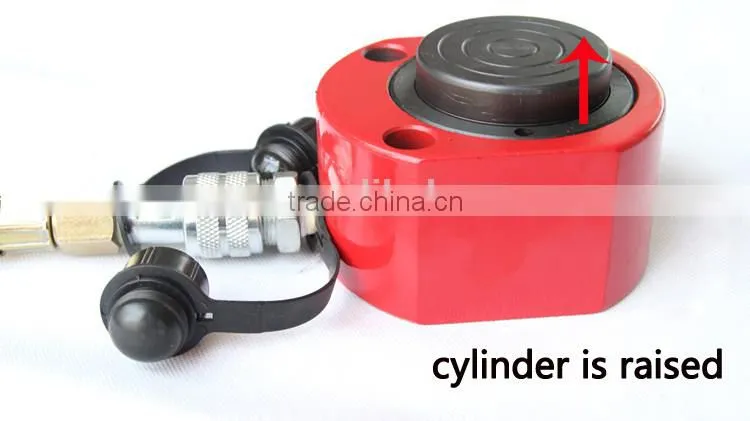

3. Plunger has the function of retracting automatically.

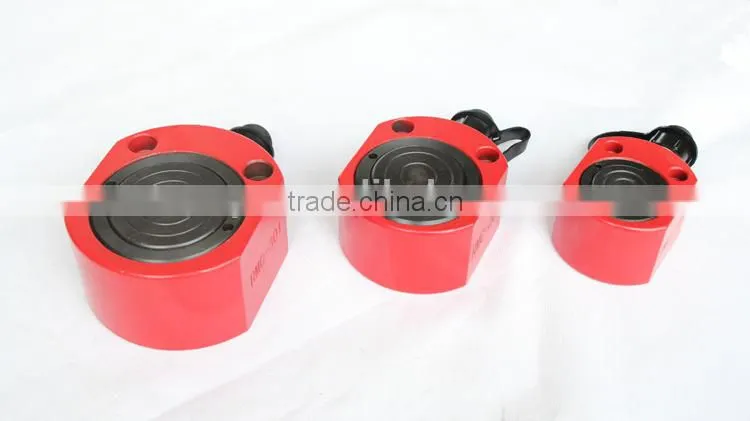

Specification

Item No.	Output (T)	Stroke (mm)	Effective area (cm²)	Oil Capacity (L)	Height of Product (mm)	Extended Height (mm)
RMC-05	5	11	4.9	0.0078	43	54
RMC-10	10	11	11.3	0.016	47	58
RMC-20	20	11	22	0.031	52	63
RMC-30	30	12	31.1	0.05	63	75
RMC-50	50	16	56.7	0.113	69	85
RMC-100	100	16	95	0.211	86	102
RMC-150	150	18	162.8	0.338	93	111
RMC-200	200	18	224.2	0.505	100	118

Item No.	Outside Dia. (mm)	Bore Dia. (mm)	Plunger Dia. (mm)	Tread for Input Oil-port (ZG)	Saddle protrusion for Plgr (mm)
RMC-05	51*40	30	25	NPT1/4''	1
RMC-10	81*56	43	38	3/8''-19	2
RMC-20	10*77	60	53	3/8''-19	2
RMC-30	115*95	75	63	3/8''-19	2
RMC-50	138*115	95	85	3/8''-19	2
RMC-100	185*160	130	110	3/8''-19	2
RMC-150	234*200	164	144	3/8''-19	2
RMC-200	274*239	189	169	3/8''-19	2
