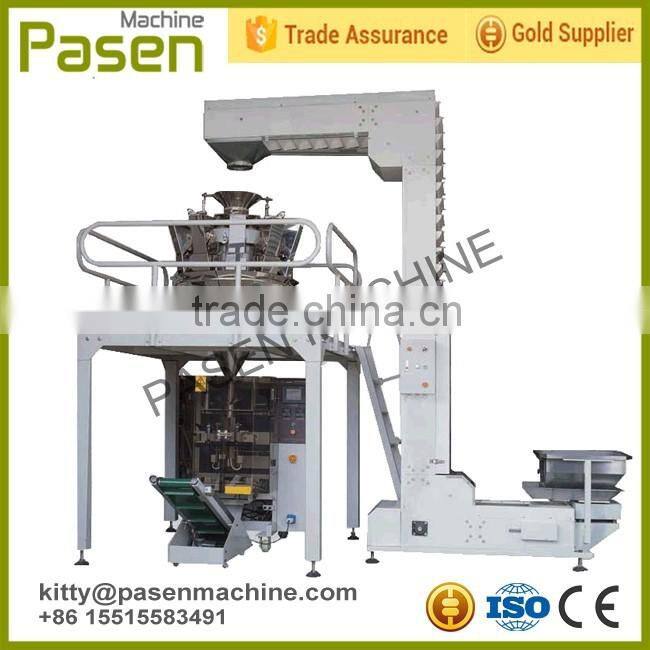

High speed Crisps packaging machine / Automatic chips snack packing machine
Introduction of Automatic chips snack packing machine
1.This machine can be used for weighing, filling food and injecting nitrogen automatically.
2.It is suitable for packing any size and shape of puffed food, fried food and baked food.
3.This equipment is completely controlled by computer, high degree automation, high efficiency and labor saving.
Application of Automatic chips snack packing machine
1. All kind of snack food, including potato chips, french fries, expanded food etc.
2. Many kinds of nut, like cashew nut, walnut, pistachio nuts, peanuts etc.
3. Many kinds of biscuit, candy, chocolate beans etc.
4. Many kinds of dries fruit or vegetable, such as mango, strawberry, dragon fruit, okra et.
5. Other kinds of scattered food or pills can also be packed into bag by the machine.
Specifications of Automatic chips snack packing machine
Model |
PQZ-10 |
PQZ-14 |
Voltage |
380v/50hz, three phase |
380v/50hz, three phase |
Total power |
1.5kw+1kw+2.2kw+0.045kw=4.745kw |
1.5kw+1kw+2.2kw+0.045kw=4.745kw |
Bag size |
(L)60-300mm (W)60-200mm |
(L)60-400mm (W)60-220mm |
Max film width |
420mm |
480mm |
Film thickness |
0.04~0.09mm |
0.04~0.09mm |
Bag type |
Pack with film, upper seal, lower seal and back seal by bag making machine. |
|
Package material |
Thermal composite material., like BOPP/CPP, PET/AL/PE etc |
|
Air consumption |
0.8Mpa 0.5m3/min |
0.8Mpa 0.5m3/min |
Weight |
1100kg |
1500kg |
Machine height |
3.308m |
3.508m |
Packing speed |
50bags/min |
45bags/min |
Air compressor |
Not less than 1 CBM |
Not less than 1 CBM |

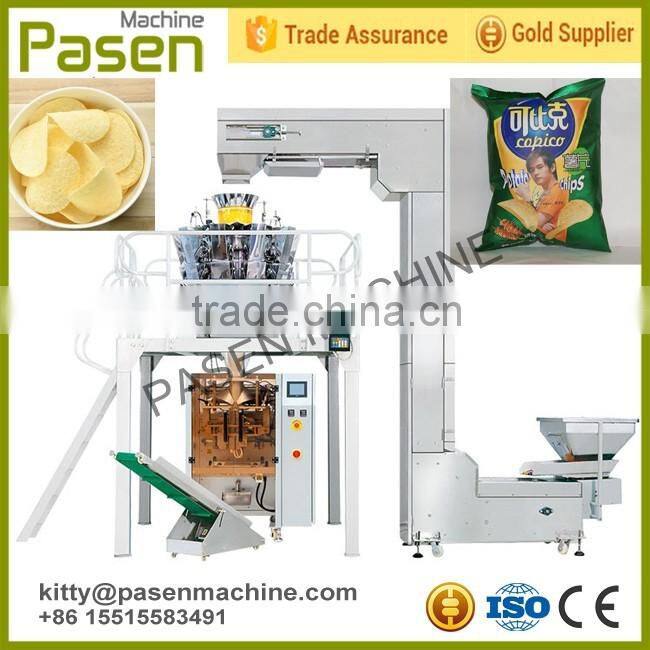

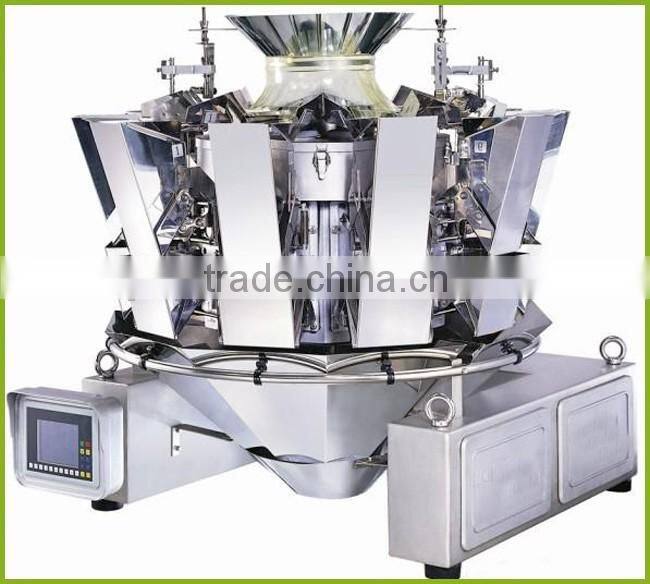

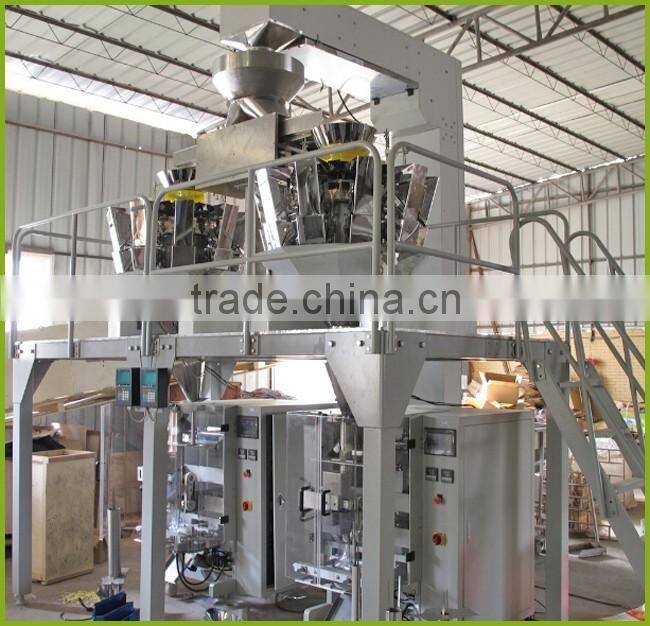

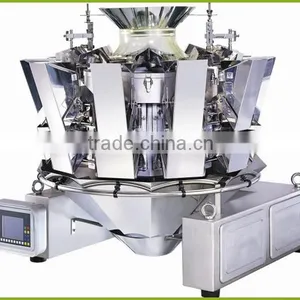

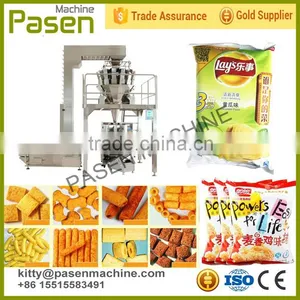

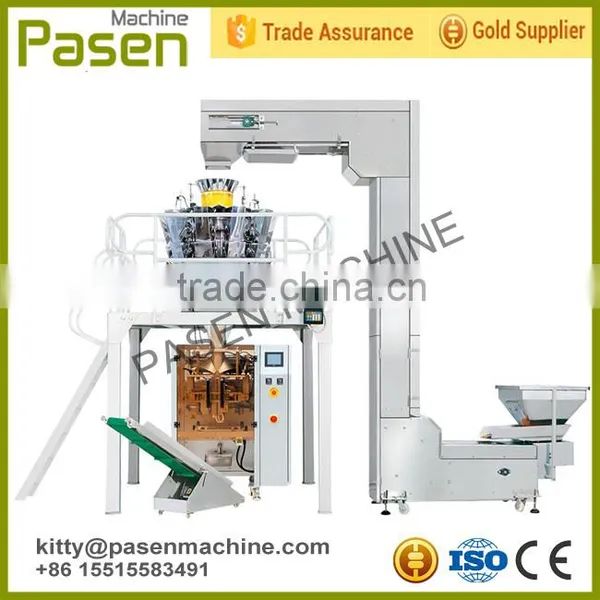

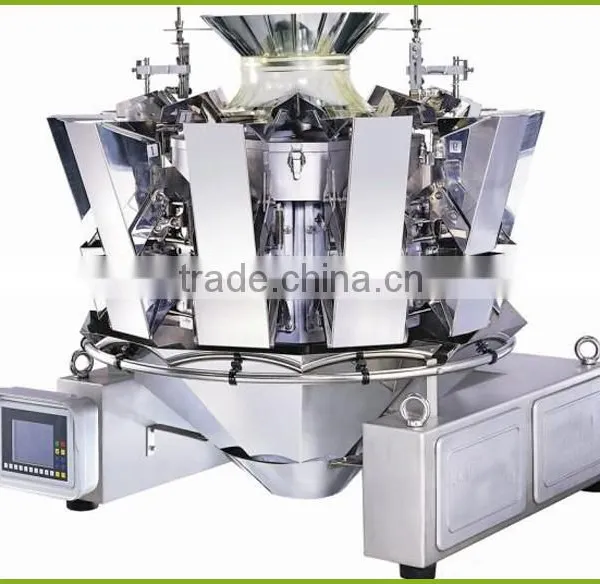

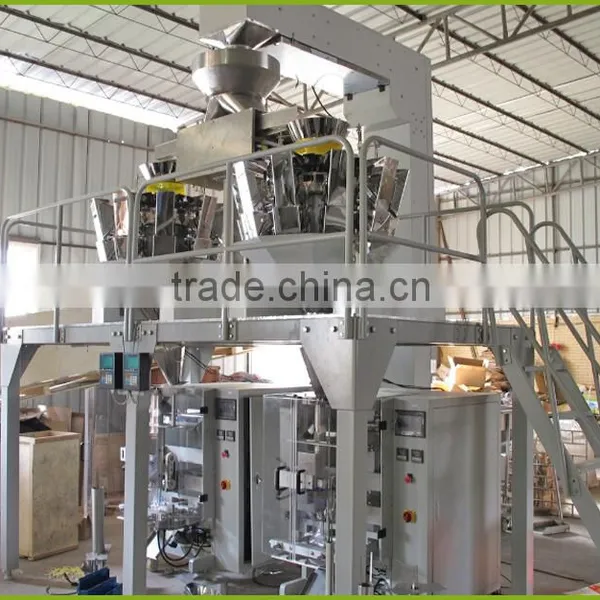

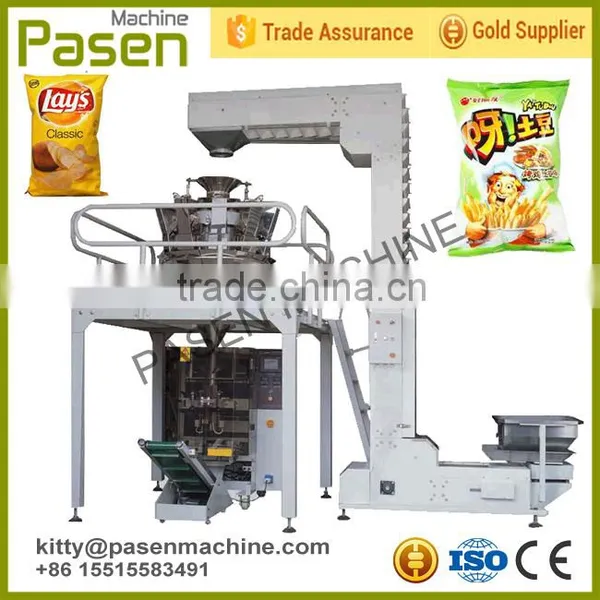

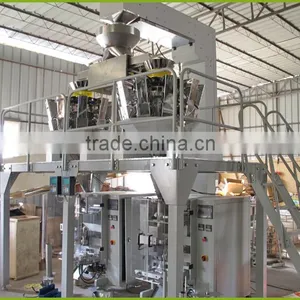

Some pictures of Automatic chips snack packing machine
Related machine of Automatic chips snack packing machine

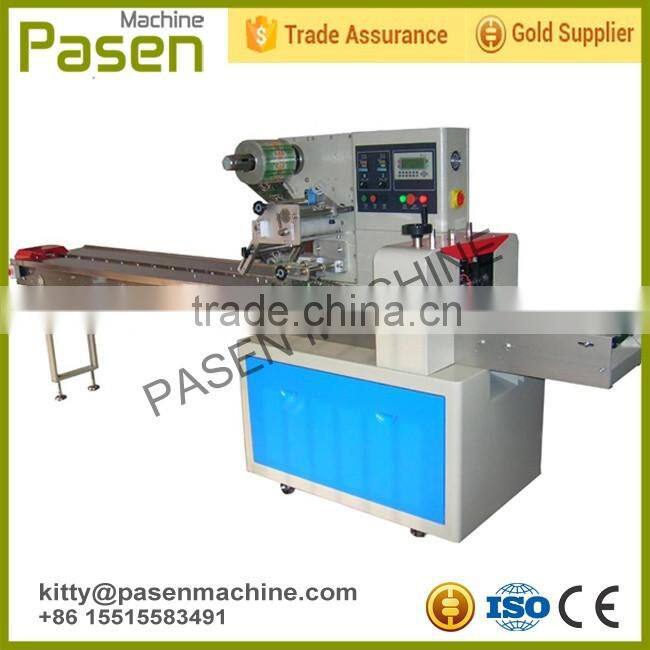

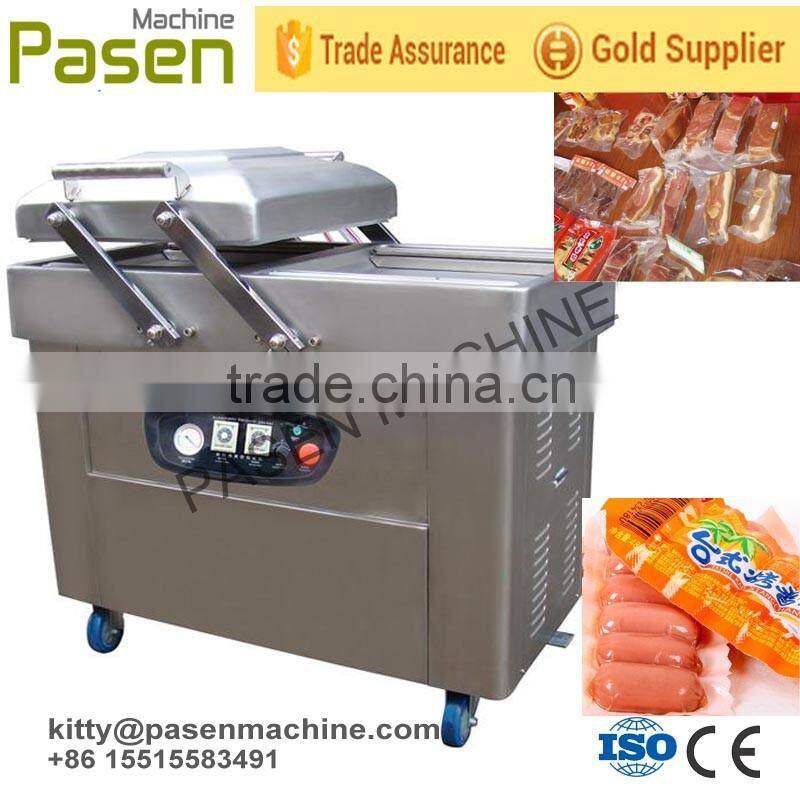

Pillow type hard candy packing machine Vacuum packing machine
Delivery Time |
7 working days after receiving clients’ payment. |
Payment Terms |
T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union |
Packing |
a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea. which is free of fumigation, lined with metal wire if necessary. |
Quality Guarantee Terms |
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
|
Service |
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. a, Before sending the machine, we will test and adjust, so you can use directly when you get it. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time. a, Any problems occur while using, professional advice will be offered. |
--- Why Choose Us
1.We are true Manufacturer of Packing Machinery.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
How to Contact Us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
b, Call me at +86-15515583491 or send me message on whatsapp/Viber with ID +86-15515583491.
c, Contact me according to the tools shown below:
Q1, Are you manufacturer?
A:Yes, we are manufacturer with more than 20 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, we could use DHL to express the machine. While transport cost will be higher. Also, it is suitable for the small models.
Q3, Where are you? Can we go to China and visit your factory?
A:Yes, of course. We are in Henan, China. Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
