Specifications
Chinese cnc machine1. 5.5KW water cooling spindle
2. Weihong NK105 DSP system
3. Taiwan Hiwin 25 l
Chinese cnc machine /BCS1325/engrave stone/wood
Application:
Marble, granite, tombstone, gravestone, headstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials, etc.
Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.
Brief Description
CNC stone engraving machineBCS1325
1. 5.5KW water cooling spindle
2. Weihong NK105 DSP system
3. Taiwan Hiwin 25 linear guide rail
4.Leadshine M860 stepper motor
5.Fuling inverter
6.stainless steel water tank
Features:
1.The frames is welded by thick-walled rectangular steel and tempered at high temperature
2.No deformation,high rigidity,with over 3 tons of load-bearing frame
3.Taiwan imported rails and sliders,HIWIN,high precision,low noise,durable.
4.Transmission parts are imported rack with high precision and speed.
5.The machine cable and Electrical adopts international famous brand,which makes the machine works in steady and high efficient condition.
6.Unique domestic water circulation system,energy saving and environment protection.
7.Newest design of triaxial enclosed totally,dustproof,waterproof.
Parameters
Model |
BCS1325 |
X,Y,Z working area |
1300×2500×300mm |
Table size |
1300×2500mm |
Table structure |
T-slot and PVC table |
X,Y,Z Transmission |
X Y axis gear transmission, Z axis Taiwan TBI screw transmission |
Guide rail |
Taiwan Hiwin 25 linear guid rail |
Spindle motor |
5.5kw water cooling spindle |
Spindle motor power rate |
5.5kw |
inverter |
Fuling inverter |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Leadshine M860 stepper motor |
Max. Speed |
45m/min |
Working speed |
35m/min |
Holding down mode |
clamp |
voltage |
380V/50/60hz |
Operating system |
Weihong NK105 DSP system |
Command |
G Code |
Software |
Ucancam software, Artcam software, Option |
Interface |
USB |

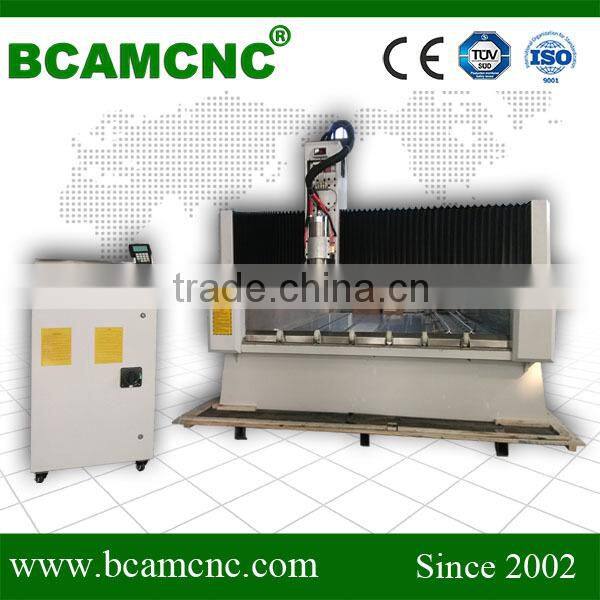

Machine Picture
Parts picture
Samples picture
Factory pic
How to choose a good CNC machine?
1)Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This situation will have a bad effect on your producing. So the quality of the machine is most important factors to choose a CNC machine.
2)Future more,aftersales service is very important, too.Good aftersales service represent the image of a company. After you use the machine and find some problem of machine, a good after sales can solve it effectively and protect the rights of consumers.
3)The third is technical support.Because of time difference,there is a big problem to communicate with the seller. When you need help, maybe it is the sleeping time for the sellers. So the effectively contact information and serve is also useful to you. Other sellers maybe can not do this, but our company can provide 24th service a day,we could go to your place to help you solve some problems if necessary.
4)The last is company. In order to ensure their image, a company with good reputation usually can produce good quality machine. As our company, we specialized in CNC machine is more than 10 years, the professional engineer teams,the advanced equipment and the good service have earned us good reputation in world market.
Packaging:
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
After sales service:
1. 18 months guarantee of the whole machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
