High-technology mini fiber laser marking machine BCJ-20w Fiber

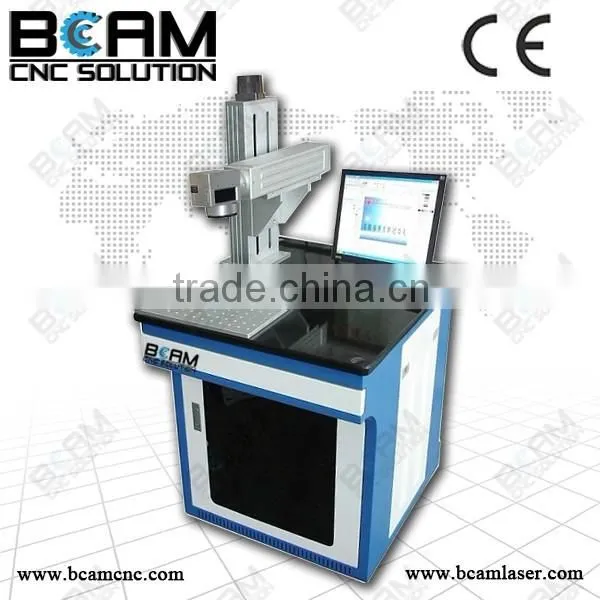

picture of machine
Packaging & Delivery
Packaging Detail: water-proof paper on machine and standard plywood box
Delivery Detail: 15 days after received your payment
Specification
1.High rate of electricity transportation.
2.Function is stable .
3.It can work consecutively and long time continuously.
4.Life time of laser marking is very long, 1000,00 hours.
5.Galvanometer and field lens
6.Size 100*100mm(150*150mm/200*200mm/300*300mm)
7.Marking Speed 8000mm/s
8.Electric up-down platform
Application
It can be used in mobile phones buttons,plastic translucent keys, electronic components, IC,sanity ware,tools accessories,medical device industry,jewelry,etc.
Machine features
High-tech,and it can make on both metal and non-metal.
Self-clean system
Lifetime over 100000hours.
Accuracy and speed is very well.
Machine paraments
Beam quality |
M2 <1.5 |
Output power |
10%~100%(continuously to be adjusted) |
Output frequency |
20KHz~100KHz(continuously to be adjusted) |
Power stability(8h) |
<±1%rms |
Focus spot diameter |
<0.01mm |
Marking size |
150mm×150mm |
Matching size |
50mm×50mm 100mm×100mm 200mm×200mm 300mm300mm |
Carving depth |
0.4mm |
Carving speed |
Linear scan 12000mm/s |
Minimum line width |
0.012mm |
Minimum character |
0.15mm |
Repeated accuracy |
±0.002mm |
Laser module |
original imported |
System operation environment |
WindowsXP/2000/98/Windows7 |
Cooling mode |
Air cooling |
Temperature of operation environment |
15°C~35°C |
Power requirement |
220V/ single phase /50Hz/<400W |
Life-span of laser module |
100000 Hrs |
Samples
Pictures of Parts
Why you choose us ?
1.BCAMCNC product is widely used in almost all the materials which you can think of.
2. BCAMCNC company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.
3.CAMCNC machine with high precision and high reputation is the most reliable goods you can choose.
4.CAMCNC company has all kinds machines in store, the delivery time is much shorter than other companies.
5.BCAMCNC Company has international tech service office and provides 24 hours online service and tech support for customers.
Picture of factory
