top quality pcb cnc router 1325

Specifications

pcb cnc router
1.mode:BCM1325
ing size 1300*2500*200
3.Certificate:CE,ISO9001,TUV
ing stable

                                           PCB CNC ROUTER



Field of application:

Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould, furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft  .

three-dimensional wood carving in relief , and profile cutting

Applicable material:

 it can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door,

composite door,cupboard door and windows, arylic, double-color board, PVC, EVA, ABS board,

stone, imitation stone, metal, Aluminum Mold etc.

Technical parameter:

1	model	BCM1325
2	X,Y working area	1300x2500mm
3	Z Max working area	200mm
4	Table size	1480x3000mm
5	Working delicacy	0.01~0.025mm
6	X,Y,Z repositioning Positioning Accuracy	0.05mm
7	Frame	Square tube steel structure
8	X,Y,Z Structure	Square orbit, Gear-wheel driver (Y axis double drivers)
9	Driver	High power drivers( 35-45meters)
10	Spindle Power Motor	3KW water cooling spindle(1.5kw/2.2kw/5.5kw for you option)
11	Power (not include the spindle)	10kw
12	Spindle Speed	0-24000RPM
13	Drive Motors	Stepper system
14	Working Voltage	380v 50Hz/60HZ
15	Command Language	G cord*.u00*.mmg*plt, HPGL
16	Operating System	DSP  handle control System(with USB interface)
17	Software Compatability	Type3 software
18	Running Environment	Temperature: 0 ~ 45 Relative humidity: 30% ~ 75%
19	Surrounding for software	Windows7/8//xp,etc
20	Working-holding	vacuum table(6 zones separately control) & vacuum pump
21	Dust removing plant	Dust collector
22	Cutters	22 pcs(include 3D cutter and milling bottom cutter)

characteristic of BCM1325:

1.the machine frame is welding steel, could afford the heavy materials to keep excellent stability.

2.the vacuum table with air pump to keep the materials to be sucked strong, then produced high precision products.

3.Japan OMRON limited swich to is very sensitive, keep the grantry working sately.

4.side blade to keep gear transmission stable, then keep the products with high precision





how to choose good mini cnc router?

1.Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to

   order another machine after you use it for a period.This situation will have a bad effect on your producing.

   So the quality of the machine is most important factors to choose a laser machine.

2.Future more,after-sales service is very important, too.Good after-sales service represent the image of a

   company. After you use the machine and find some problem of machine, a good after-sales can solve it

   effectively and protect the rights of consumers’.
3.The third is technical support.Because of time difference,there is a big problem to communicate

   with the seller. when you need help, maybe it is the sleeping time for the sellers. So the effectively

   contact information and serve is also useful to you. Other sellers maybe can not do this, but our

   company can provide 24th service a day,we could go to your place to help you solve

   some problems if necessary

4.The last is company. In order to ensure their image, a company with good reputation usually can produce

   good quality machine .As our company, we specialized in CNC laser machine is more than 10 years,

   the professional engineer teams,the advanced equipment and the good service

   have earned us good reputation in world market.

Package and deliver:

1.machine size:3000*1820*1550mm

   package size: 3100*2050*1750mm

2.deliver to you within 15 days after received your payment.

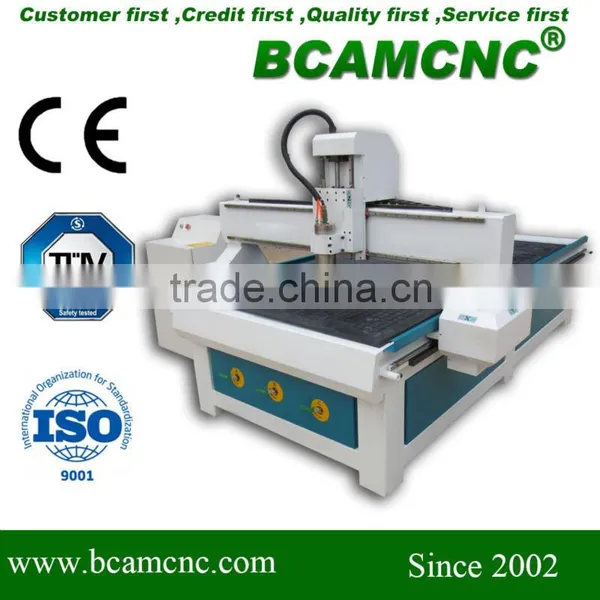

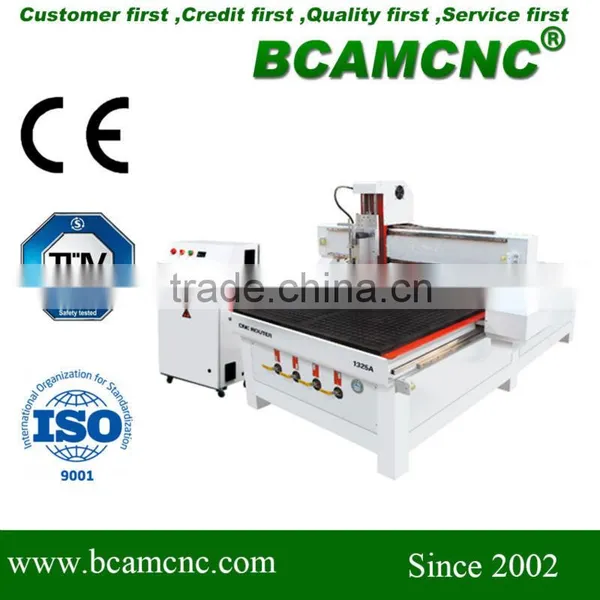

Machine picture:



machine parts:





Sample:
