Specifications
CNC router machine1. DSP
2. Stepper Motor
3. Spindle Head3kw
Packaging & Delivery
Packaging Detail: With Standard Exporting Package For CNC Router Machine
Delivery Detail: CNC Router Machine Will Be Shipped Within 15Days
Specifications of CNC router machine
1. DSP
2. Stepper Motor
3. Spindle Head 3kw
Technical Data Of CNC Router Machine
Machine |
BCM-1325A2 |
Working table |
T-slot table |
Workable size |
1300x2500x200mm |
Spindle motor |
3kw Water-cooling spindle |
Max. Travelling speed |
40m/min |
Max. working speed |
30m/min |
Spindle Rotation Speed |
0-24,000rpm |
Operating system |
DSP control system |
Command |
G Code |
Driver & motor |
Stepper motor |
X,Y,Z Transmission |
Z---Taiwan TBI Ball Screw; X,Y---Rack Gears |
X,Y,Z Guide Rail |
Taiwan HIWIN Square Rail |
Dust Collecting System |
3KW dust collect |
Working Voltage |
380v,50hz,3ph |
NW |
1100KG |
GW |
1200KG |
Features of CNC Router Machine
1.We use many famous brand spare parts for our cnc router machine , such as Italian HSD spindle,Syntec control system ,Hiwin linear rails,Yaskawa servo motor & driver, Panasonic motors & drier, Shneider electrics, Igus wire, Taiwan Linear guide & ball screw;
2.Obtaining Patent from Italy Patent Company, With Ship-shaped , machine body, improving the stability of the cnc router machine.
3. Cnc router machine with leakage structure design, clear the waste material timely, improve the ball screw & linear guide using –life under extremely harsh environment.
4. Welded tube steel lathe body, improving the using life of the cnc router machine.

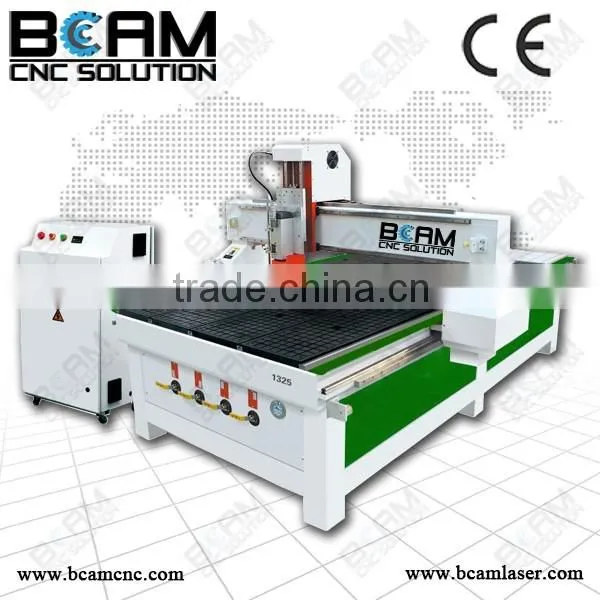

Machine pictures
Machine Design Pic of CNC Router Machine
Machine parts
About us : BCAMCNC
Bcam group integrates the excellent design, production and logistics resources, specialty engaged in the laser machine, engraving machine production and marketing job up to 11 years.Now we have mature production workers more than 100 people, 10 sales teams, 2 product research and development teams , 2 after-sales service teams. Products exported to Europe, America, Australia , Africa,Asia etc, welcomed by consumers and good evaluation.Bcam people firmly believe that in the near future. Here sincerely we are look forward to your inquiry & advice. Thank you!
Our factory
WHY CHOOSE US ?
Gurantee & After-sales Service of CNC Router Machine
1) 24-hours technical support by calling or email.
2) Friendly English Version manual and operation video CD disc
