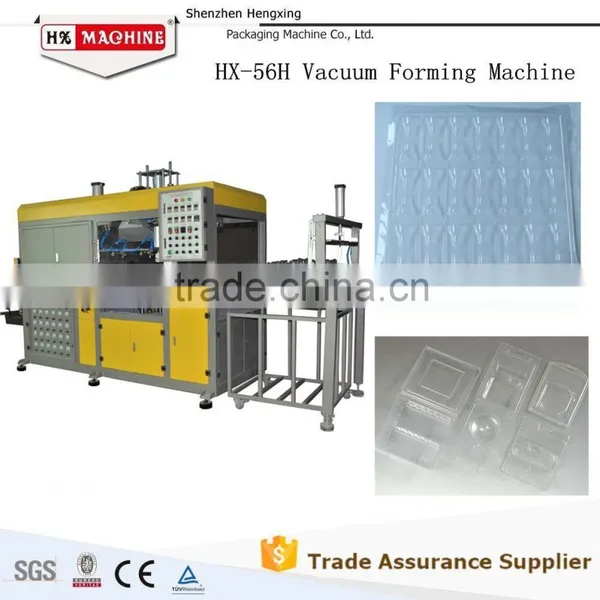

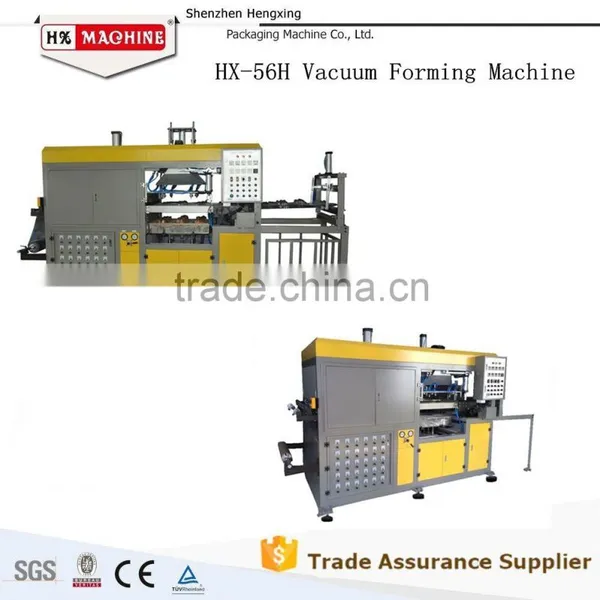

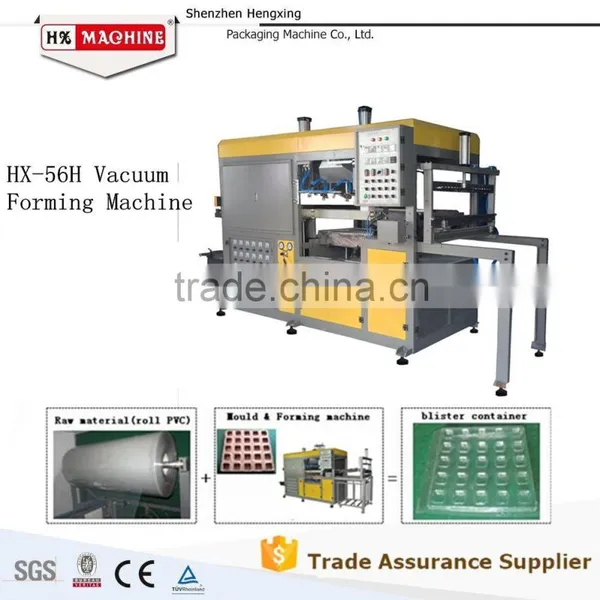

Mini Full Automatic Vacuum Thermoforming Blister Machine
Parameters:
| Items | Parameters |
| Model | HX-56H |
| Power supply | AC380V 50HZ |
| Power | 18kw |
| Forming size (adjustable) | 560*760mm (can adjusting) |
| Capacity | 220-480 times / hour |
| thickness of material | 0.2-1.5mm |
| Machine size L*W*H | 3950*1200*2250mm |
| Machine net weight | 1500kgs |

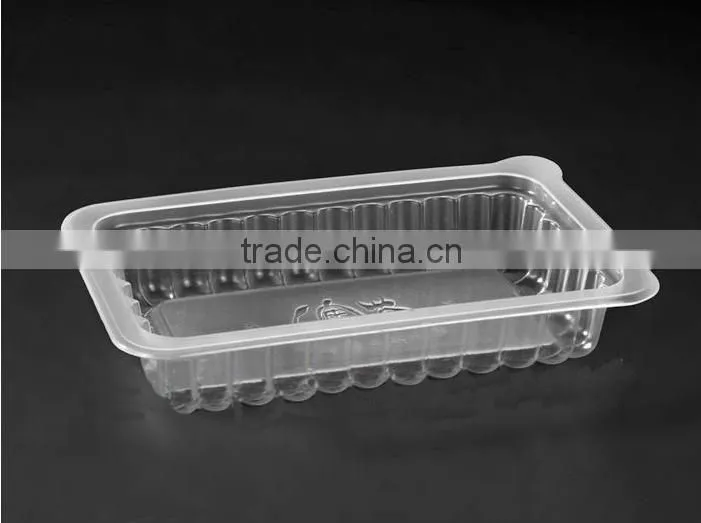

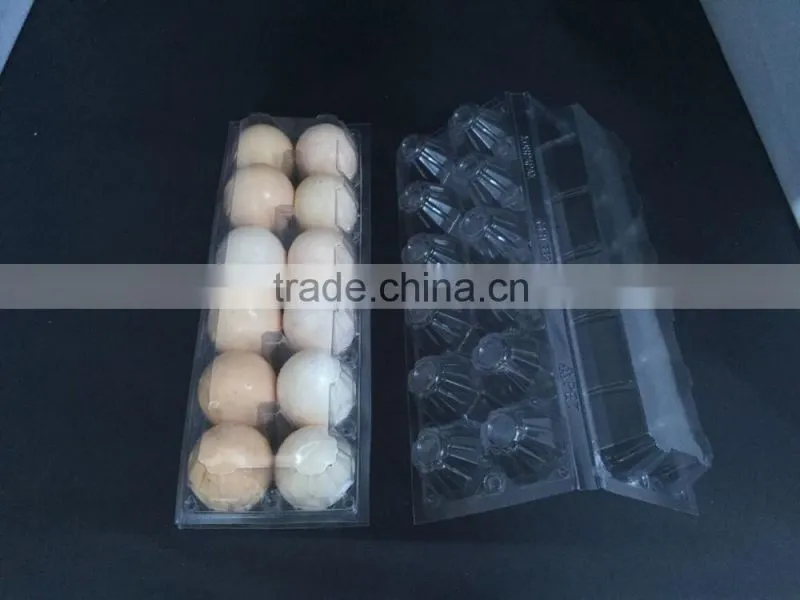

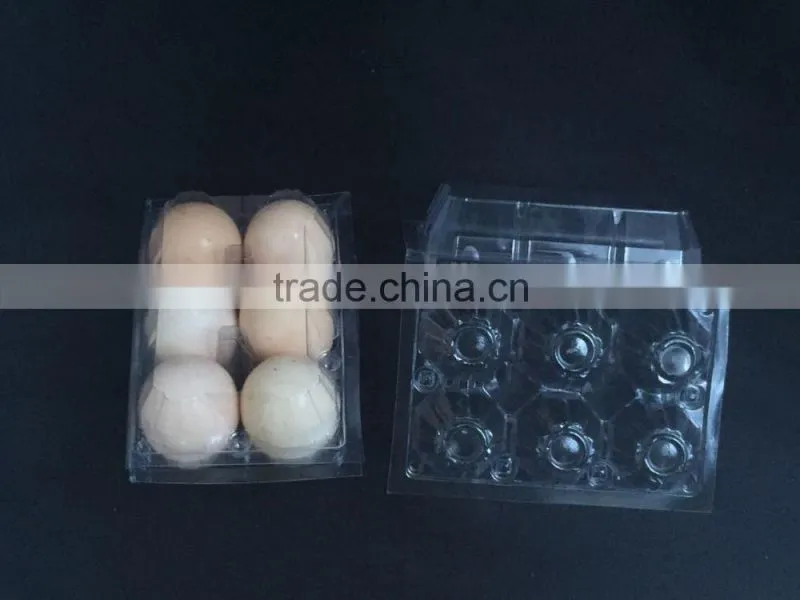

Samples:

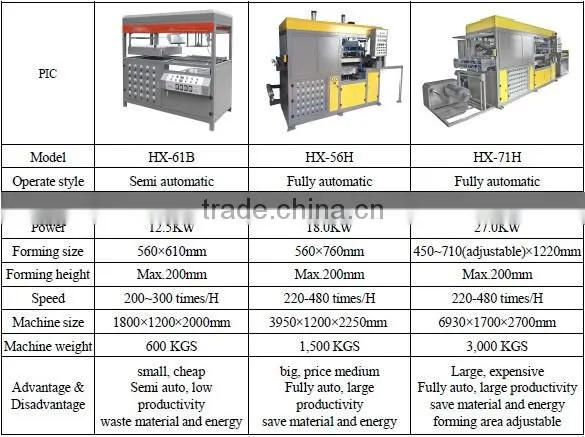

Different between HX-61B,HX-56H and HX-71H:
(1)This machine is fully automatic. Just place plastic roller onto the frame, then forming, cooling, transporting, cutting can be done automatically.
(2)The control board is near the operator, can be operated easily, greatly improve the efficiency of production.
(3)The far-infrared ceramic heating elements can control every single block heater temperature, more power-saving features, and reducing production cost.
(4)The furnace is guided automatically.
(5)The cooling system is independent by cold water.
(6)This machine can form all kinds of blisters or tray just replace mould.
(7)We provide one cooling water machine in free
Factory view:

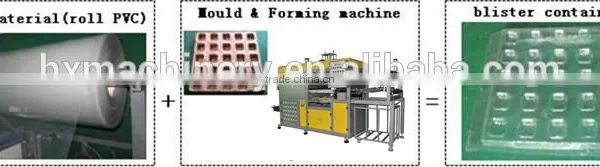

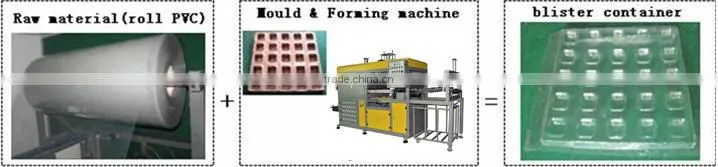

Forming principle:
1.One year guarantee for whole machine
2.24hours technical support by E-mail or phone
3.Engineers available to service machine by overseas
4.Call or door to door service
