Help CenterHot Sale Wireless Door/window Shork Gap Detector
Related Products
-
Wireless Door /window Gap Sensor,door/window Door Gap DetectorUS$ 3.00 - 3.50MOQ: 100 Pieces -
Battery Operated Cheap Smoke Alarms,hotels Smoke DetectorsUS$ 4.20 - 4.70MOQ: 100 Pieces
-
Industrial Infrared Alarm Smoke DetectorsUS$ 4.20 - 4.70MOQ: 100 Pieces
-
Wireless GSM Fire Alarm System, Designed for Use With Wireless Smoke DetectorsUS$ 4.20 - 4.70MOQ: 100 Pieces
-
Wireless Photoelectric Smoke DetectorUS$ 4.20 - 4.70MOQ: 100 Pieces
1. Power DC 12V(12V 23A battery)
2. Standby Currents: less than 25uA
3. Alarm Current:less than 20mA
4. Wireless Distance: 300m (open area)
5. Wireless Frequency:315MHZ/433MHZ
6. Case Material: ABS plastics
7. Operating Temperature: -10 ~ 55 degrees
8. Operating temperature:less than 80%(No Coagulation)

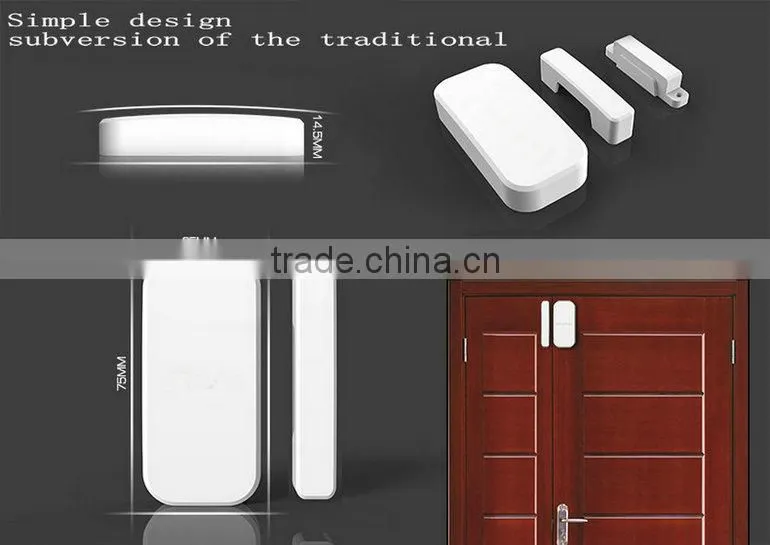

9. Transmitters Size: 74*34*15 mm
Magnet Size: 64*13 *13 mm
Guideline for Installing Door or Window Sensor
The surface for door sensor installation should be clean so door sensor can be attached to the door and frame firmly with double faced adhesive.
1.Each kit door sensor include sensor (A as in diagram) and magnet (B as in diagram). B must be the right hand side. (A and B, one on fixed door frame, another one on movable door.)
2. A and B must be aline,The distance between A and B not exceeding 1 cm.
3.Upon installed, door sensor should be tested by open the door and check if the indicator on door sensor flashes for 1 second.
4.The indicator light lit for one second, means alarm. In case the door sensor is running out of battery, the indicator should be kept lit as a low-voltage notification.
5.A, B can also be reinforced with screws, (A, bottom out, then screw in the bottom, buckle the cover to the bottom, B can be directly fixed on the screw back.)
