Extensive use oil purifier oil refining equipment
Raw Material:
The oil machine is suitable for different materials, but the process of each materials is various. If you really need to process oilseeds, welcom to know much from us. The main materials is rice bran, peanut, palm, sunflower, corn germ, soybean, sesame, cottonseeds and so on.
Extensive use oil purifier oil refining equipment

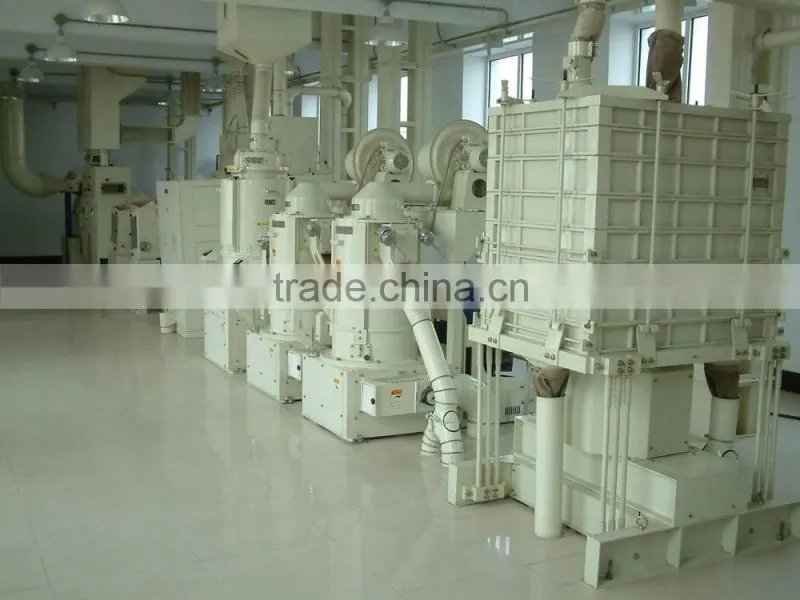

1. Craft flow for pretreatment workshop
seed → magnetic box → cleaning → crushing machine → flaking roll → plate dryer → to extraction workshop
Main Equipments:
1. Magnetic box: Clearing the iron impurity in the soybean. In order to avoid the harmful to the following machines, the iron impurity need be moved first.
2. Cleaning: There are many different imputities in the soybean such as small stone, earth, straw and so on. They are not only broken the machine, but also effect the quality of final oil.
3. Crushing machine: The size of soybean is big, so it must be separated to 6-8 pieces. This will help to extract oil.
4. Flaking roll: The soybean pieces need be make to think cake. At the same time, the cell in the soybean is broken, so the oil is easy to go out.
5. Plate dryer: The water content of the extractor must be about 10%, so the dryer is used to adjust the water content in this step.

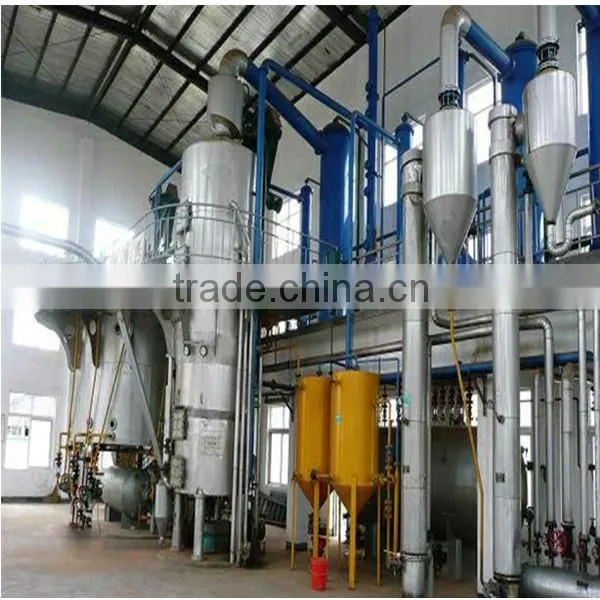

2.Craft flow for Extensive use oil purifier oil refining equipment
solvent
↓
extractor → mixed oil → 1st and 2nd evaporation → stripping tower → crude soybean oil
Wet meal → DTDC toaster → cake
Main Equipments:

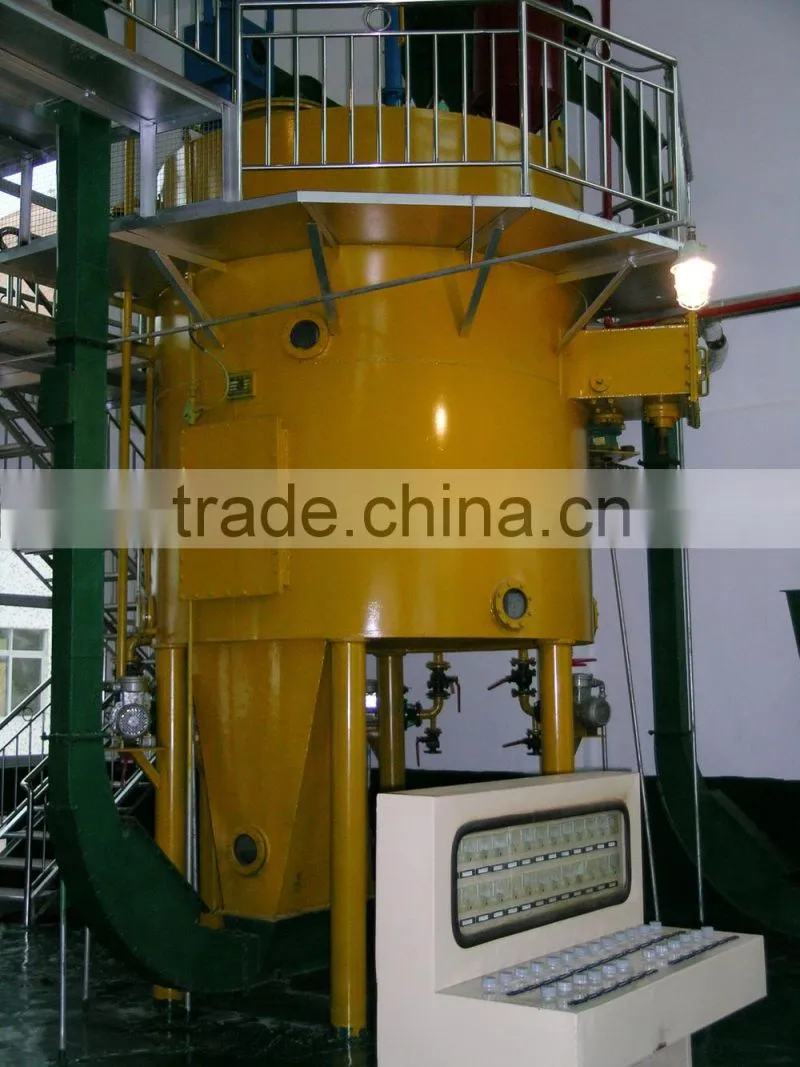

1. Roary extractor: The spray and soak the cake with solvent, so that oil fats can be dissolved in solvent
(form miscella). After this step, wet meal and miscella (mixed oil) are got.
2. 1st evaporator: The miscella (mixed oil) will be sent to 1st evaporator to separate the oil and solvent.
About 85% of oil can be separated from the mixed oil in this step.
3. 2nd evaporator: After the separating in the 1st the evaporator, the mixed oil is sent to 2nd evaporator.
By the higher temperature and vacuum, 95% of the oil is get out from the solvent.
4. Stripping tower: This is the lastest step to separate the mixed oil. In this machine, all the oil will be seperated from the solvent.
5. DTDC toaster: The cake from the extractor will enter the DTDC toaster. The solvent in the cake can be moved out. Then the solvent can be recycled. The cake after separating solvent will dried in the toaster. Then you can storage it directly.
6. Condensers: The solvent from evaporate, stripping tower and toaster will recycled by the condenser. Then the running cost will be reduced.

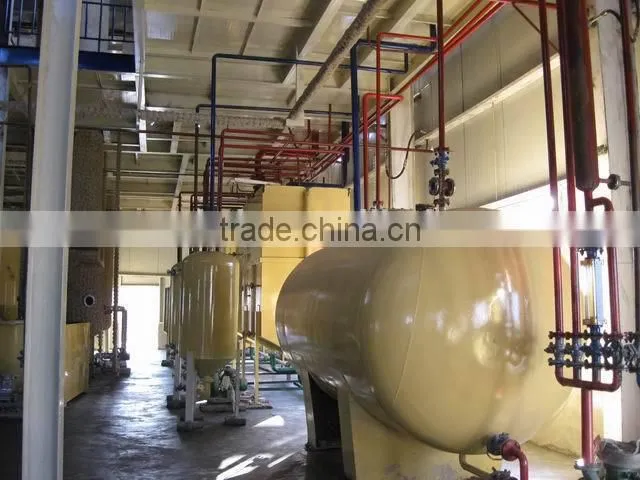

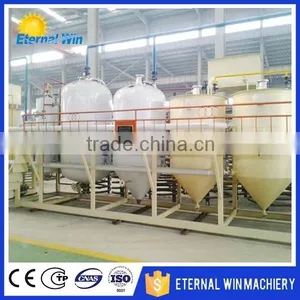

3. Craft flow for Extensive use oil purifier oil refining equipment
Crude oil → degumming and deacidification→ decolorization →deodorization → refined soybean oil.
Main Process:
1. Degumming and deacidification: The gum and acid in the oil will moved in this step. There are different ways to process it. The physical way is suitable for low acid oil and big capacity, while the chemical way is suitable for the small capacity and high acid oil.
2. Decolorization: The white clay is used to move the color of the oil. For different market, people like different color oil, so you can control the color by the quantity of the white clay.
3. Deodorization: The oil will have the special smell of the oilseeds. It also contains the smell of white clay, so we need more the smell which people don't like. The high temperature steam is used to move the smell of the oil.
4. Winterization: There are much wax in the rice bran oil, so the winterization part is needed to move the wax in the rice bran. After moving the wax, the oil can keep clear in low temperature.
Extensive use oil purifier oil refining equipment
1. Anyone who bought our machine all can accept he usage and maintenance training in our factory.
2. Our after-sales service team can go to your workshop for debugging and training.
3. Warranty period: 1 year from the date you bought our machine.
The following situations are not included in our warranty.
1.) The damage which you did not according to our service manual.
2.) Normal spoilage of the quick-wear part.
Guarantee: 100% brand new when leaving the factory.We guarantee the quality the machines for a period of one year(exclude easily damageable parts).
Pls confirm below details before purchase our products, your detailed inquiry will help us to offer you the suitable machine and better price.
1. QTY
2. Payment term: EXW,FOB or CIF.
3. Specification: such as power, volt, output,seeds,edible oil gradeand so on.
