Product Application of Oil Form supercritical co2 extraction machine

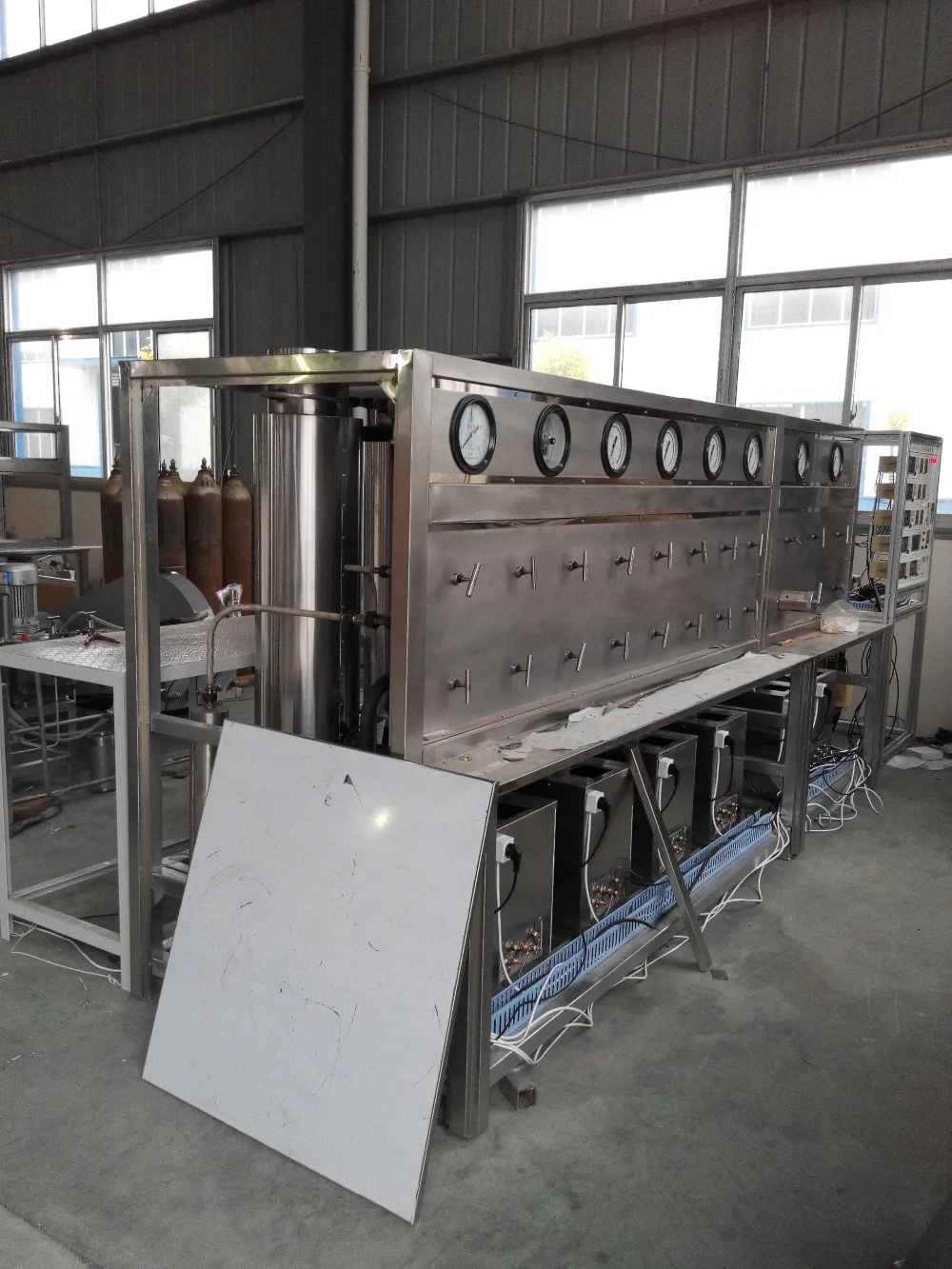

It is a Oil Form supercritical co2 extraction machine from Henan Eternalwin Machinery Equipment Co.,Ltd.
Its simple structure and strong maintainability make this oil press machine very popular in Africa.

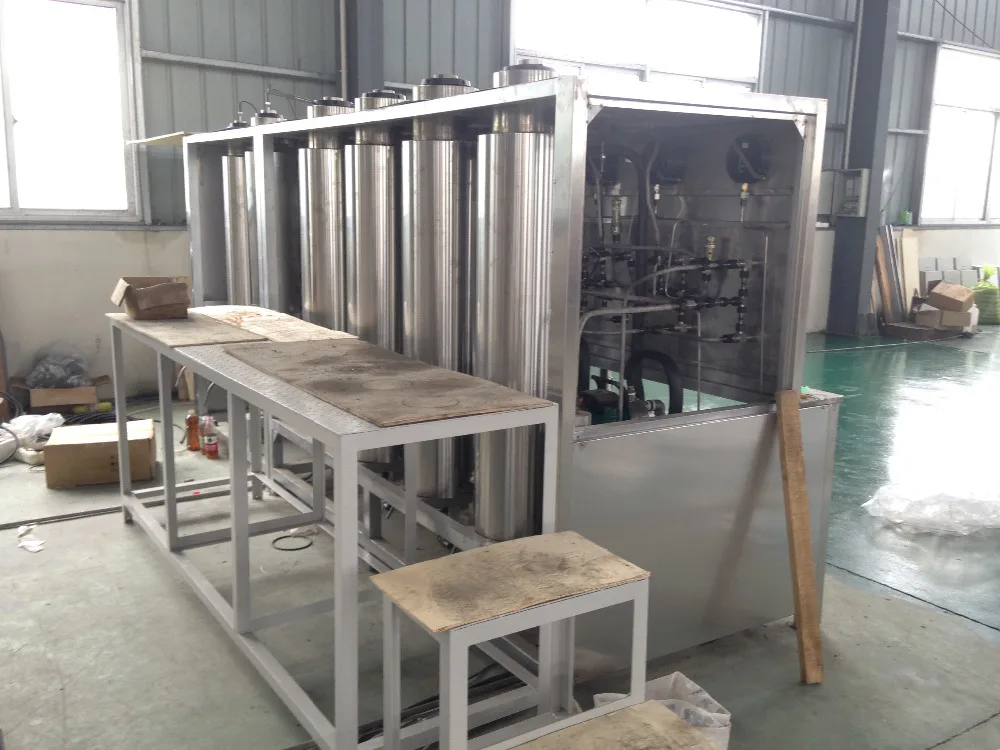

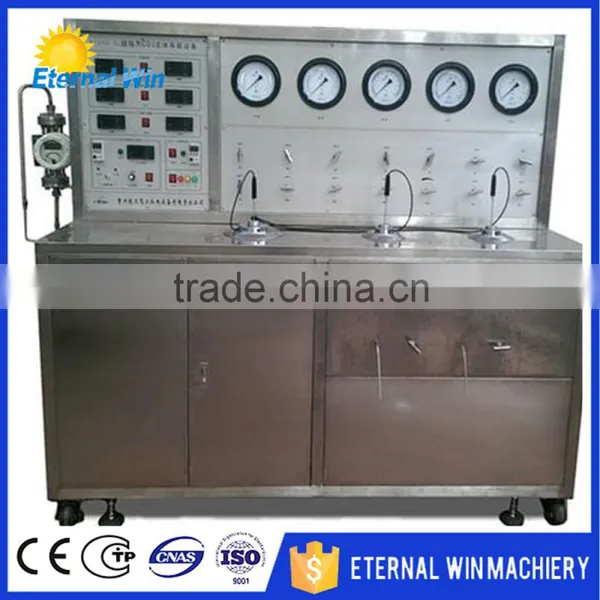

Oil Form supercritical co2 extraction machine
a) Volume: 5L
b) Amount: 1
c) The max working pressure: 50MPa
d) The max operate temperature: 85°c
e) Material: 0Cr18Ni9Ti
f) Material tank(for both liquid and solid material)
g) Heat preservation structure, and with stainless shell outside(also called jacket water structure)
Features for Oil Form supercritical co2 extraction machine:
1. This system is multi-function SCFE equipment, the working mode is intermittent or continuous way to extract solvent from solid or liquid material, the additive can be add to the supercritical fluid;
2. The system has one extractor and two separators
3. The highest working pressure of solid extractor is 50Mpa, the highest working temperature is 85°C;
4. The design of pressure vessels according the related national standard and rule demand and with over pressure protection system which means enough safety valve;
5. The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. The material of pipe parts, valves, pipe lines, are all stainless steel(0Cr18Ni9Ti).
1. Extractor
a) Volume: 5L
b) Amount: 1
c) The max working pressure: 50MPa
d) The max operate temperature: 85°c
e) Material: 0Cr18Ni9Ti
f) Material tank(for both liquid and solid material)
g) Heat preservation structure, and with stainless shell outside(also called jacket water structure)
2. Pre-heater
3 sets (two different pressure, 50MPa, 16MPa) heated directly
3. Pump
(1) Pressure pump
a) Type: 3DT-50/50
b) Flow: 0~50L/h ( real flow of CO2)
c) The rate working pressure: 50MPa
d) Flow adjustment: 20%—100%
e) Head of pump with cooling structure
(2) Additive pump
a) Type: 2J-X5/50
b) Flow: 0~5L/h
c) The rate working pressure: 50MPa
d) Flow adjustment: 20%—100%
4. Dry purifier
a) Volume: 0.5L
b) The max working pressure: 50MPa
5. Mixer
a) Volume: 0.5L
b) Working pressure: 50MPa
c) Material: 0Cr18Ni9Ti
6. Refrigerating system
a) Cooling capacity: 5,100 Kcal
b) Water cool unit
7. The controlling of pressure and temperature, flow showing
(1) Pressure control
a)using micrometer valve to control, ensure pressure stable of extraction and separation
b) Using Y-160 piezometer to show pressure, precision up than 1.5 class
(2) Temperature control:Using digital meter to show and control precision 1 class
(3) Flow showing
a) CO2 uses metal rotor flow meter, range is 0~150Kg/H
b) Additive meter uses glass rotor flow meter, rang is 0~20Kg/H
8. Safety system
(1) The pressure pump has limit pressure structure, we can set it among the range of working pressure, and stop the pump when pressure is over.
(2) The extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system.
Basic Flow of Latest Technology Oil Form supercritical co2 extraction machine
1.CO2------Extraction kettle------Separation I------Separation II------Return circuit
2.CO2------Extraction kettle------Separation I------Fine distillation column------Separation II------Return circuit
Suitable seeds for Oil Form supercritical co2 extraction machine
Our Oil Form supercritical co2 extraction machineto most raw materials such as herbal, wood, flower, etc.

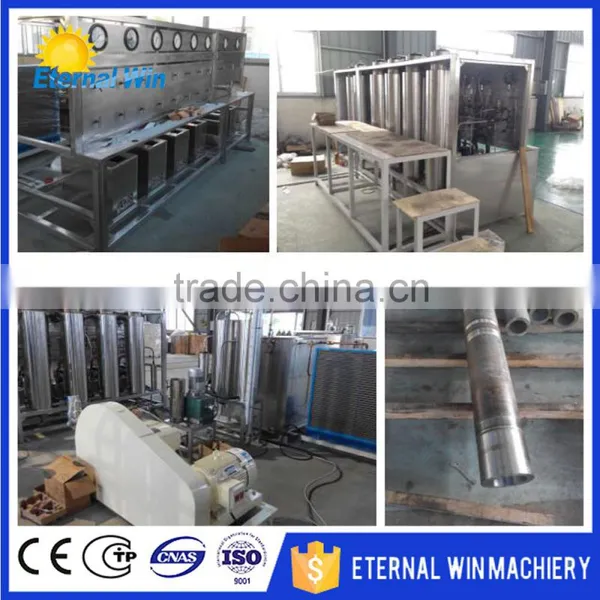

Machine Parts of Oil Form supercritical co2 extraction machine
Name: parts
Original: China
Main Features of Oil Form supercritical co2 extraction machine
Name: Walls of oil machine
Original: China
Machine Parts of Oil Form supercritical co2 extraction machine
Name: Screw
Original: China

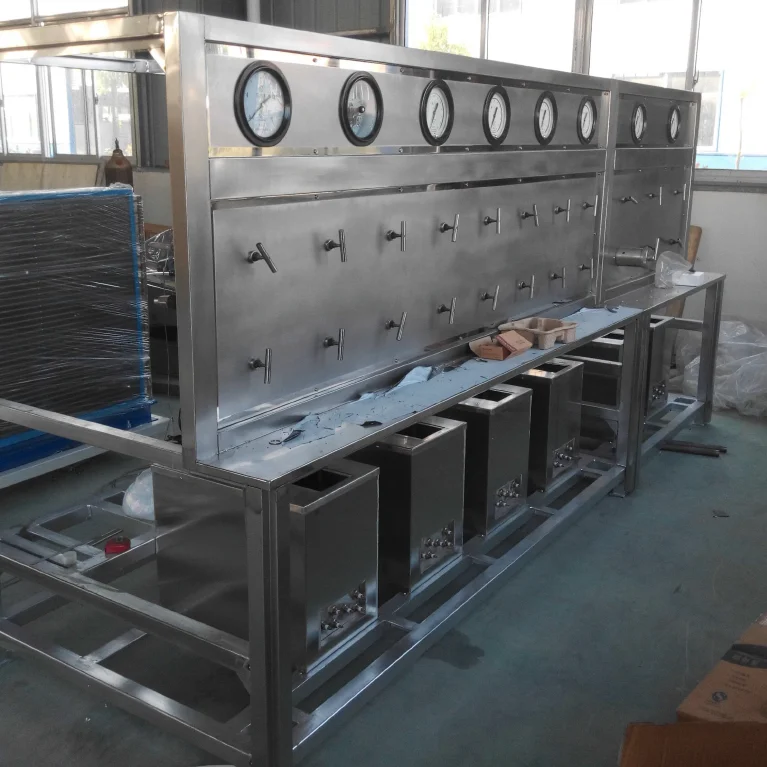

Oil Form supercritical co2 extraction machine
Main Features of Oil Form supercritical co2 extraction machine
Name: Vacuum filter
Original: China

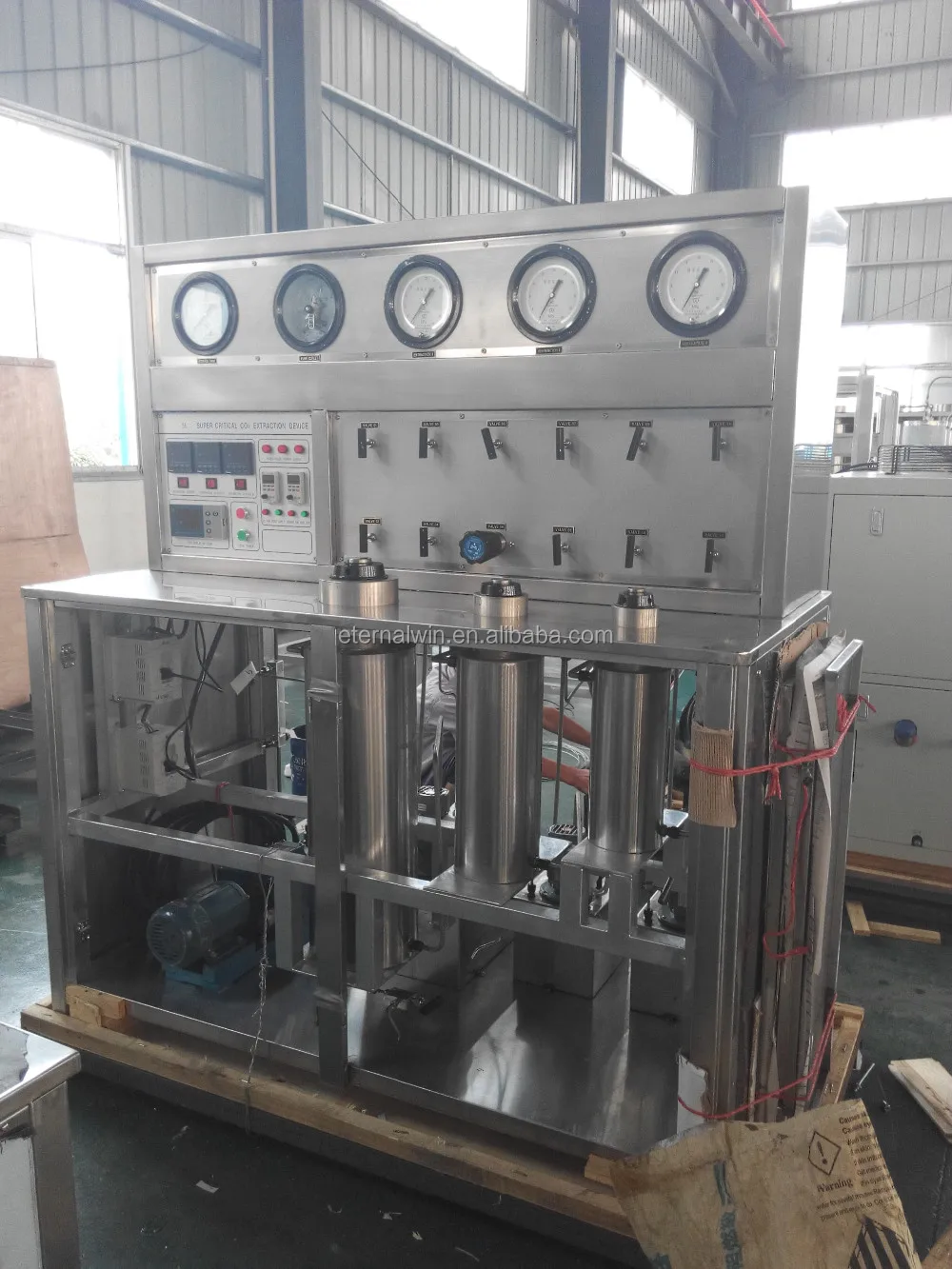

Oil Form supercritical co2 extraction machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory .
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
The packing of Oil Form supercritical co2 extraction machine
Package: Wood case.
Delivery period: 7-30 days after receiving your deposit.
Payment term: 30% TT as deposit, 70% before delivery.
Still have questions?
Contact me.
I am always here!
Skype: miya.yang11
Tel&Whatsapp: +8615936280013
What does Eternal need from me to quote a price?
1.Raw material
2.Production capacity per batch
What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil. The oil residual of our small hydraulic oil press machine, cold press virgin coconut/avocado/olive oil extraction extracting machine is 1%
Can I use the machine to extract several kinds of raw materials?
Yes,of course. such as sesame, sunflwoer seeds, soybean, peanunt, coconut, etc
Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
What is your material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 5 working days after prepayment received.
What is the minimum quantity I must order?
We don't technically have minimums, but if you order more than 3 sets once,we can give you
a discount.
Do you have machines in stock?
No,our machine is produced according to your request.
How will my order be packed, can you provide the installation service?
Packed in plywood case.
We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
♦ Feedback of Oil Form supercritical co2 extraction machine:
The Oil Form supercritical co2 extraction machine, characterized with the reasonable structure, reliable performance, easy to operation, maintained conveniently, high productivity. low oil residue rate and other characteristics, adapt for squeezing of Oil Form supercritical co2 extraction machine. The Oil Form supercritical co2 extraction machine has been establishing a good reputatin in China and around the world.
