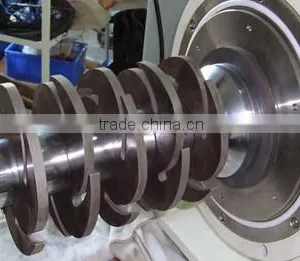

Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L thumbnail-2
Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L thumbnail-3
Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L thumbnail-4
Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L photo-1

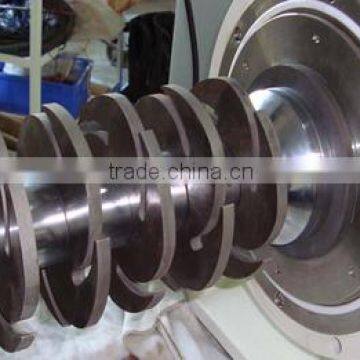

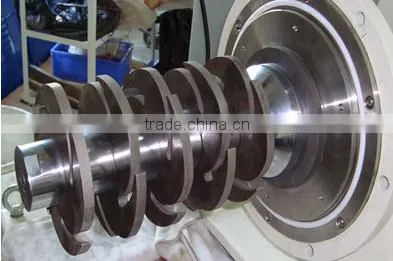

Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L photo-2

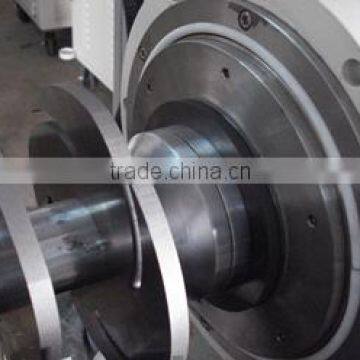

Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L photo-3

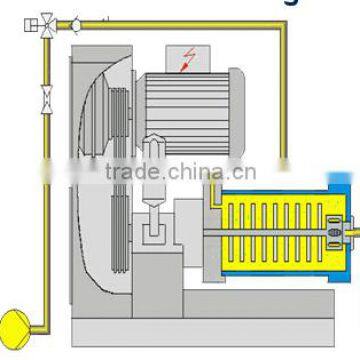

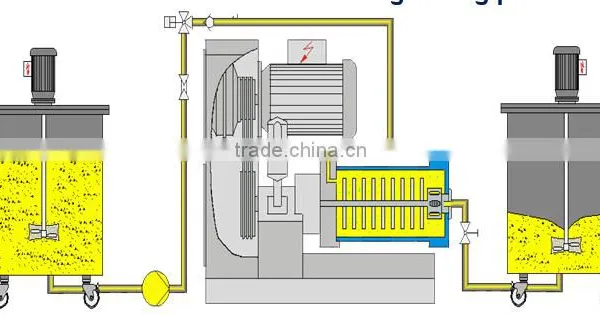

Disc Sand Mill ,micron Grinding Bead Mill Machine,Longly Machinery LSM-5L photo-4
US$ 7200.00 - 7200.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sand Mill
Product Type:
Other, Machinery
Contact Supplier Request Quote Chat Now
Dongguan Longly Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China or Hongkong China or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Sand Mill
Product Type Other, Machinery
Place of Origin Guangdong, China
Brand Name Longly Machinery
Model Number LSM-5L
Voltage 380V
Power(W) 7.5kw
Dimension(L*W*H) 900*750*1550mm
Weight 450 Kgs
Certification ISO9001
Warranty three year of warranty coverage
After-sales Service Provided Overseas service center available

Basic equipment:

·Net capacity of grinding chamber                                    5L

·Volume of grinding media                                                Approx12.6KG,on 70% fill percent

(L95 imported zirconium beads )

·Separating system                                                           Dynamic gap separating system

·Separating gap                                                                 0.3~0.35mm

·Cooling water flow                                                            Approx 600 L/H

·Cooling water temperature                                               8-12℃

·Cooling water pressure                                                    0.4Mpa

·Cooling water pipe                                                           Φ4mm

·Inlet pressure                                                                   0.2Mpa

·Outlet temperature                                                           0-100℃(Adjustable)

·Feeding form                                                                    Pump

·Dimensions(mm)                                                         900*750mm*1550(L*W*H)

·Weight of the machine(kg)                                           450



·Appearance color                                                             The color will be subject to the actual production,Longly standard is blue grey



Feeding form

·Pump models                                                                    ARO 1’’ Air-operated Diaphragm

Motor drive

.Voltage                                                                                 380 V-50HZ

·Main motor power                                                                7.5KW, Expolsion proof grade IP55



.Main drive                                                                            Belt pulley,constant speed,linear speed could

not adjust by belt pulley

.Bearing                                           ·                                    NSK,imports from Japan

·Electrical accessories                                                          ShihLlin/Schneider

·Explosion-proof grade                                                          IP55

·Control system                                                                     Push-button(IP55)



.Protector                                                                              Contact pressure induction protective device,the

host autoatically stop when high pressure in grinding chamber. Liquid level pressure induction protective device;Circulating pressure induction protective.

 Mechanical seal

.Sealing form                                                                         Single mechanical seal

(Alloy steel + silscon carbide)

·Sealing pressure                                                                  0.2-0.3Mpa,machine sealing fluid flow min 4l/min



·Seal ring                                                                                O-ring  anticorrosion Du Bangquan fluorine

sealing ring

·Seal ring material                                                                 PTFE/Viton

·Sealing liquid                                                                       Similar to the material,ensure no pollution material



 High wear-resistant parts

.Inner chamber                                                                      GX280 ,hardness HRC68

·Main shaft                                                                            GX280 , hardness HRC68

·Separating material                                                              Dynamic separator,SUS304





Disc sand Mill ,micron grinding Bead mill machine,Longly Machinery LSM-5L

Disc sand Mill ,micron grinding Bead mill machine,Longly Machinery LSM-5L
