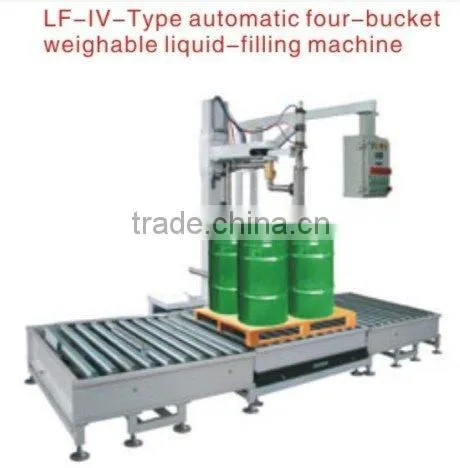

Help CenterSemi-automatic Filling Machine
Related Products
Specifications
Enhance filling speed;Reduce the labour;
Without worrying about emotional factors (effects) of artificial packing.
Main functions:
1. Suitable for the continuous filling of four open tanks, weighing 200kg each, and a maximum of 2000kg for four tanks,
2. The input, output and filling of tank is controlled by PLC and is positioned by micro switch automatically
3. The filling head rotates and extends into the tank automatically
4. The filling head is designed to prevent spilling and splashing liquid
5. 20 of different weights can be set and stored
6. The tare can be subtracted automatically and the net weight displayed instantly
7. Slow/fast feeding speed
8. Dual protection of emergency stop/power cutoff
9. Automatic alarm in case of excessive deviation from set value
10. Automatic control of feeding pump
11. Manual/automatic operation mode
Weighing Range |
≤2000kg |
Tank Specification |
≤w600×h930(mm) |
Graduation |
0.2kg |
Power Supply |
AC220VAC±10% 50Hz |
Filling Precision |
≤±0.4kg
|
Air Supply |
0.5Mpa |
Filling Speed |
40-60buckers/hour |
Track Length |
4.5m,7.5m |
Filling Station |
4 |
Size of Weighing Platform(L×W) |
1500×1500(mm) |
