Specifications
1.Name:balancing valve for solar water heater system.2.Direct reading
3.ISO9001: Cetification.
4.100 percent leakage test
COMPANY PROFILE:
Yuhuan Tino Imp&Exp Co., Ltd is complex of producer and trading company , mainly producing kinds of safety valves, T61M seriese for electric water heater, T611-614 for wall-hung boiler and central heating system, 61T1-61T2 is designed for pressure vessel such as solar water heater, any steam tank ,which need control temperature and pressure.And Automatic air vent including solar air vent, home appliance water pressure reducing valve. And other brass fitting.

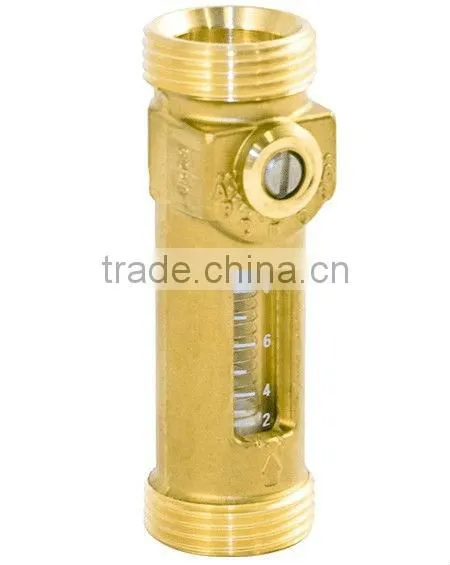

Balancing valve
Direct regulation, reading and shut-off of flows in systems
Characteristic:
Direct hydraulic balancing and control of lows to consumer, it offers a quick easy, and accurate method of adjusting the flow rates through HVAC systems
Correct balancing of hydraulic circuits ensures optimum energy distribution,resulting in more efficient and economical operation in accordance with the energy saving.
With setter inline balancing valves, any qualified fitter can set the appropriate flow rate using the unique flow measurement device.
Advantage:
1.Precise and quick balancing without diagrams,tables or measuring devices.
2.Flow rate displayed directly in L/min.
3.Regulating valve with adjustment scale.
4.Regulating valve with lsolating facility(rest leakage possible).
5.Can be installed in any position.
6.Connect range fitting to the system.
Technical data:
1.Model:AV230.1208
2.Max.operating temperature:100°C
3.Max.operating pressure:1Mpa(10bar)
4.Measuring range:2—8L/min
5.Measuring accuracy: ±10%(highest nominal flow)
6.Connection:inletG3/4 outRp1/2
7.Dimensions: 80.5×27
8.Weight:164g
Installation
The valve may be installed in vertical,horizontal or inclined position.Care should be taken in order to ensure that the arrow is pointing in the direction of the flow.
