Specifications
edible oil bottling machineMaterial:SUS304
certificate:CE ISO
touch screen:included
PLC:Ormon from USA
Beverage/edible oil bottling machine
Features:
- Full mirror-polishing stainless steel structure for easy cleaning and hygiene.
- Built-in safeguard mechanism ensures the safety of operator and machine.
- Adopt world-famous components: Mitsubishi frequency inverter and PLC touch screen control system; Igus Bearing; Autonics photoelectronic sensor; Airtec air cylinder; Siemens electronic components,etc
- Fully automatic, low noise, efficient, high accuracy and intelligent, easy running and maintenence, ideal for 4-10L edible oil / water bottling.
- Photoelectric sensors sense missing caps automatically and thus guarantee no uncapped bottle.
- Advanced rotary magnetic capper ensures tightness yet prevents bottle from damage.
- Built-in automatic PLC control with touch-screen operation
Specification:
Product |
Linear Automatic Edible Oil Filling Machine / Water Filling Machine / Water Bottling Machine / Water Bottling Monobloc |
|||
Model |
XGG4-4-1 |
XGF8-8-2 |
XGF12-12-3 |
XGF16-16-4 |
Rinsers |
4 PCS |
8 PCS |
12 PCS |
16 PCS |
Fillers |
4 PCS |
8 PCS |
12 PCS |
16 PCS |
Cappers |
1 PCS |
2 PCS |
3 PCS |
4 PCS |
|
Max Production Capacity (based on 5L bottle) |
500BPH (bottles per hour) |
1000BPH |
1500BPH |
2000BPH |
Max pure water consumption per hour |
4000L |
7000L | 10000L |
13000L |
Applicable Bottle |
4~10L PET / PE / PVC plastic bottle |
|||
Applicable Cap Type |
Screw-up Cap(Φ38~58mm) |
|||
Gas Source Pressure |
0.45~0.70 Mpa |
|||
Gas Consumption |
0.18~0.5M3/min |
|||
Input Power |
380V 50Hz (three-phase) / 2.5~10.0KW |
|||
N.W. |
2700 KG |
4200KG |
5000KG |
6000KG |
Dimension |
4300×1200×2000mm |
8200×1200×2000mm |
12800×1200×2000mm |
16800×1300×1900mm |
Packing Ways |
In Wooden Case |
|||
Accessories |
Including air conveyor, automatic cap loader, and lamp checker |
|||
Application Scope |
Non-gas mineral water / pure water / distilled water / edible/cooking oil bottling. |
|||
Main Part's List:
No. |
Item |
Brand / Origin |
1 |
Frequency inverter |
Japan Omron or Panasonic |
2 |
Main electric parts |
Siemens |
3 |
PLC |
Japan Omron |
4 |
Photoelectric sensor |
Korea AUTONICS |
5 |
Approach / Proximity switch |
|
6 |
Fiber optic switch |
|
7 |
Contactor |
Siemens |
8 |
Colorful Touch screen |
Taiwan origin |
9 |
Main Motor |
Nanjing Kongda |
10 |
Speed Reducer |
Hangzhou Tianyu |
11 |
Pneumatics |
Taiwan Airtac |
12 |
Bottle feeding |
Air conveyor belt |
13 |
Rinsing |
Bottle-neck clamping type |
14 |
Capping |
Magnetic rotary type |

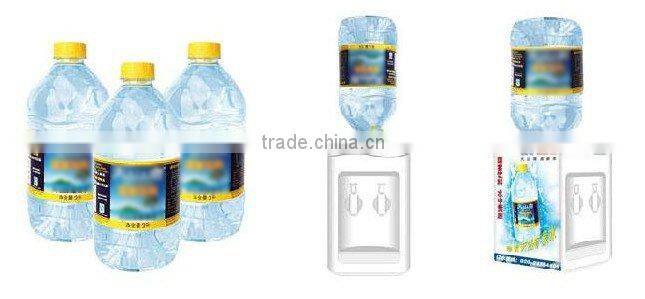

Exclusive! Innovative design for 4~10L one-time bottle with water dispenser:
Hurry and contact our sales engineer for your solution today.

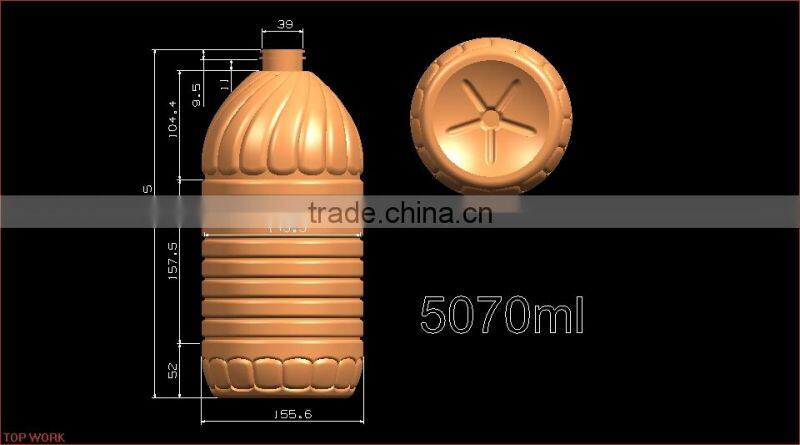

Before sales serbice: as we are keen on provide complete bottled water machine service , we can make design on bottle mould&plant layout sesign service , also ,if you have any special requirement ,we can update our machine on your basic .
After sales Service Terms: we provide one year limited warranty*1 and life long support service for all of our products.
During the warranty period, if any product purchased from our company malfunctions, we will provide necessary technical support, or even send engineers to solve the problem with the buyer providing proper accommodation, all the fees for transportation(the air tickets to you for economy class), insurance and medicines, and salary for our engineers*2 and 1 translater,the sallary based on USD60 per day.
For detail information ,please contact our sales manager -John Yi
1.can this machine fill jcarbon beverage ?
Answer: no ,this is a none-gas beverage filling machine , if you need gas beverage filling please contact John for another offer .
2. what kind of bottle can be filling in this machine ?
Answer: normally ,PET/PP plastic bottle and volume under 10L , the shape of the bottle should be regular one , if you get glass or special bottle shape ,please contact with John for OEM service.
3.how many years guarranty can we offer and after service ?
Answer: we can give at least 3 year warranty . after service :if the machine happen to be broken ,we will need you explain us what is the problem ,we will solve it by sending free spare parts ,or sending our engineer oversea when it comes big problem.
4.Touch screen language and manuel language ?
Answer: no matter you are english language man , spanish ..ect... we can get translate the manuel with your requirest language and update the PLC and touch screen with your language , make it easy for your operation .
for more questions please contact with John Yi , we will get reply you at the first time we can !
Developing from our honorable controled company of Shenzhen Angel Drinking Water Equipment Co., Ltd., Shenzhen Kinglife Environmental Technology Co., Ltd. is engaged in the R&D, manufacture and marketing of ultra-filtration (UF) / reverse osmosis (RO) water filters and water purifiers.
Corporate History & Honors:
2001 - Shenzhen Kinglife Environmental Technology Co., Ltd. was founded.
2002 - Our ultrafiltration water filters were launched into the market.
2003 - Our reverse osmosis water purifiers were launched into the market.
2004 - We were invited to join Water Quality Association.
2004 - Our ultrafiltration water filters were awarded "Top Ten Brand in China" and "Environmental Protection Products".
2005 - Our filter products were notarized and awarded "Top Ten Quality Brands of Filter Products in China".
2005 - Our KDF filters were successfully patented and later were awarded "National Technology Invention Award" and "National Science and Technology Progress Award".
2005 - We were awarded "Asia Pacific (International) Environmental Protection Scientific and Technological Innovation Award" and became an honorable member of Asia Pacific Environmental Protection Association.
2008 - Our products were awarded "China Well-Known Brand".
With the support of our parent company, we also provide the following products and services:
1. Design, installation and training of reverse osmosis / ultrafiltration water treatment equipment with production capacity ranging from 300L/H to 100,000L/H
2. Design, installation and training of full sets of 0.25L to 6L small bottle mineral / pure water bottling lines
3. Design, installation and training of full sets of linear / monoblock type semi-automatic and fully automatic equipment with production capacity up to 34,000BPH (bottle per hour)
4. Design, installation and training of full sets of 3/5/6 gallon semi-automatic and fully automatic water filling & packaging production lines with production capacity from 30BPH to 1,200BPH
5. Design, installation and training of full sets of juice / carbonated drink filling & packaging production lines
6. Design, installation and training of 0.05 cubic meters/hour to 20 cubic meters/hour sea water desalination equipment for villas, boats and small islands.
7. Automatic water vending machines for dormitories, schools and living area
8. Water dispensers / coolers for families or offices
We are honored to announce the following customer list:
1. Walmart China - constant pressure pure water supply
2. Carrefour China - pure drinking water supply
3. BYD - pure water bottling plant supply
4. TCL - pure drinking water supply
5. Culligan Haiti - sachet pure water filling plant, 0.5~1.5L pure water bottling plant, 5gallon pure water bottling plant
6. M2O Sudan - 600ml and 1500ml mineral water bottling plant
7. AQUAPLUS Montenegro - 0.5~1.5L and 5gallon pure water filling plant
Export to Australia 2013 Oct 20th
Export to Nigeria 2013 May 12th
Export to Bangladesh 2014 Jun 24th
