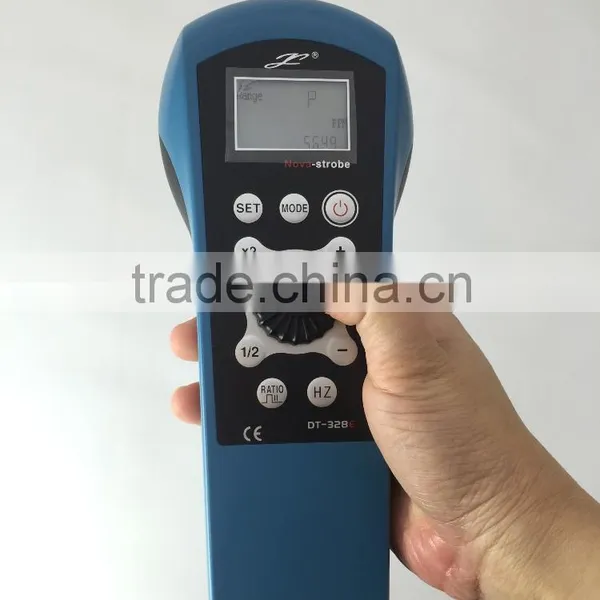

Help CenterNew Design DT328E LED Digital Flashlight Stroboscope for Electrical Industry
Related Products
-
DT328E---New Design LED Digital Flashlight StroboscopeUS$ 500 - 800MOQ: 1 Set -
Multi-Union Fixed Digital Xenon StroboscopeUS$ 400 - 700MOQ: 1 Set
-
DT680 Multi-Union Fixed Digital Xenon StroboscopeUS$ 400 - 800MOQ: 1 Set
-
Multi- Unions Fixed Digital Stroboscope With Original Germany Tube for PrintingUS$ 500 - 1,000MOQ: 1 Set
-
DT680D-4 Multi-Union Fixed Digital Xenon StroboscopeUS$ 600 - 1,200MOQ: 1 Set
LED Portable Stroboscope in Printing and Packaging Industry
A stroboscope, also known as a strobe, stroboscopic lght, strobe light, tachometer is an instrument used to
make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible,
otherwise, it can not be observed by naked eyes.
The principle is by synchronizing the flash frequency to the movement of the observed object and emitting
intensive light pulse of short duration, the object is always illuminated at the same point of its movement,
so that it appears to the eye as if it were motionless. It is suitable for non-contact RPM measurement,
inspection and observation of moving parts.
For example: a motor speed and movement frequency (printed bags), can also take advantage of the frequency
scintillation analysis of object vibration, the action of high-speed moving objects, as well as high-speed photography.
The design of the product is small and light, the operation of the product is convenient. Using the original LED lamp bead and it can serve longer timE. The range of the wide measurement is rom 60 FPM to 120000 FPM. LDE brightness can be adjusted. Detect the high speed moving object and the situation of its gear wheels and displacement. It can be used at any time and any place. And it can easily use thumbs to set up and operate.
1) LCD digital display, easy to read
2). Adopts 9 pices America CREE LED lamps with long life time
3). Wide range of trigger frequency, 60fpm/min-120,000 fpm/min.. Frequency of each unit can be easily adjusted
4) Good light brightness, with illunimation about 10,000 Lux.
5). Portable, rechargeable, easy to operate and adjust
6). Accurate and simple yet highly stable, repeatable flash rate setting.
7). Internal components are independent, thus easy to disassemabled for problem solving
8). Accredited with ISO, CE certification and pass EMC test.
9). Competitive price with high quality
10). Fast delivery, environmental friendly paper packaging.
11). Light weight and compact design, easy for figure operation.
12). after sale service guaranteed
Model |
DT-328E |
Type |
Portable and Rechargeable |
Battery Type |
Lithium rechargeable Battery |
Battery Spec. |
DC16V, 4500mA |
Battery running time |
Above 5 hours (have indicating light) |
AC adapter |
AC220V |
Total Power |
About 90W |
Environment Illumination |
Less than 10,000 Lux |
LED Lamp Spec. |
America CREE 10W LED Lamp (9 lamps) |
LED Lamp Lifetime |
3-5 years |
Trigger Mode |
Internal and External |
Setting Accuracy (Internal Vibration) |
0.01%±1 digit (25℃) |
Setting the Resolution (Internal Trigger) |
1~200Hz 0.002Hz |
1~2000Hz 0.02Hz | |
60.0~12,000fpm 0.1fpm | |
12,001~120,000fpm 1fpm |
|
Product Size |
208mm*70mm*60mm |
Net Weight |
380g |
Packaging Size |
265mm*265mm*145mm |
Accessories |
Aluminum alloy carry case |
