preform blowing machine
Bottle preform machine

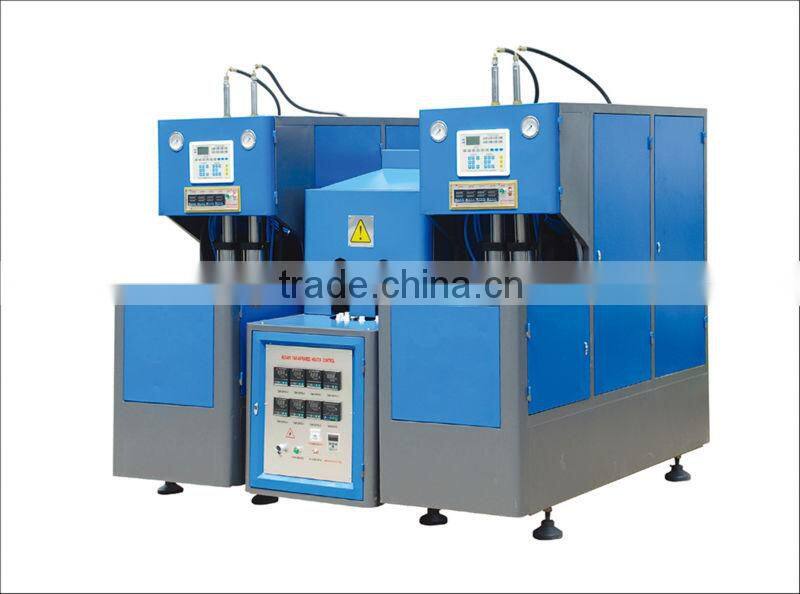

CM-8Y Semi-automatic preform blowing machine is suitable for producing PET plastic containers and bottles from 0.1L to 2L. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
*Adopting double crank to adjust mould, heavy locking mould, stable and fast.
*Adopting infrared oven to heat the preform, the preform rotated and heated equally.

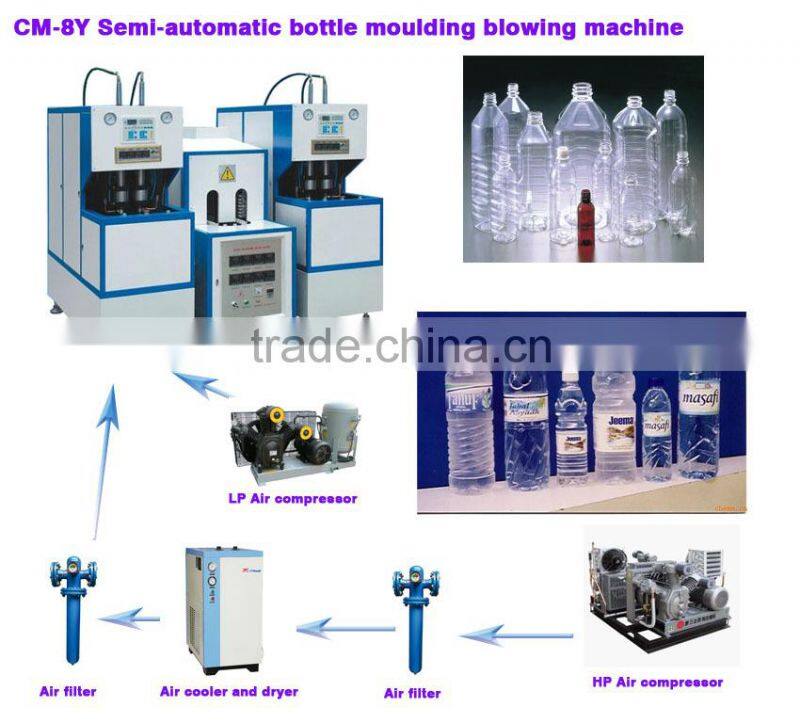

*The air system has been divided into two parts: pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
*The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
*The machine can be operated in the step-by-step mode and the semi-auto mode.
*The machine is small with low investment, easy and safe for operating.
Model |
ITEM |
|
CM-8Y |
Container |
Product material |
/ |
PET |
Volume |
L |
0.1-2 |
|
Theoretical output |
pcs/h |
1400-1800 |
|
Preform length |
mm |
≤350 |
|
Preform inner diameter |
mm |
φ5-38 |
|
Mould |
Max.mould plate Diameter(L*W) |
mm |
350*380 |
Max.mould thickness |
mm |
180 |
|
Clamping force |
kn |
45 |
|
Mould opening stroke |
mm |
160 |
|
Machine size and Weight |
Main machine (L*W*H) |
cm |
1600*600*1610 |
Main machine weight |
kg |
500 |
|
Heater (L* W*H) |
cm |
1870*630*1450 |
|
Heater weight |
kg |
250 |
|
Power |
kw |
17.5 |

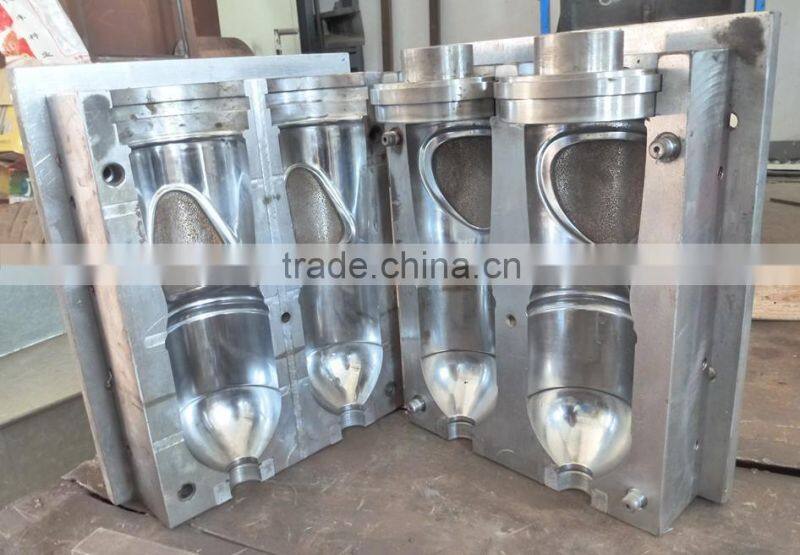

Mould:
We provide bottle mould design&machine oversea installation service .
After sales Service Terms: we provide one year limited warranty*1 and life long support service for all of our products.
During the warranty period, if any product purchased from our company malfunctions, we will provide necessary technical support, or even send engineers to solve the problem with the buyer providing proper accommodation, all the fees for transportation(the air tickets to you for economy class), insurance and medicines, and salary for our engineers*2 and 1 translater,the sallary based on USD60 per day.
