Specifications
portable digital plug-in stroboscope DT316P1.Usage: Still images
observation overprint
2.Power: AC 220V+ / -10%

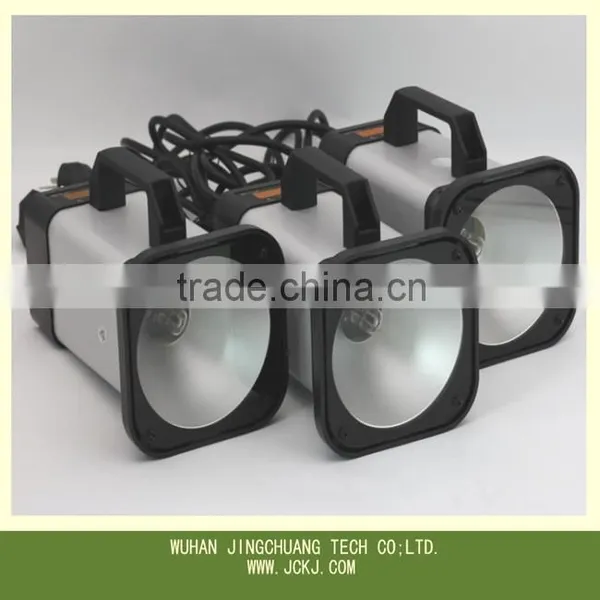

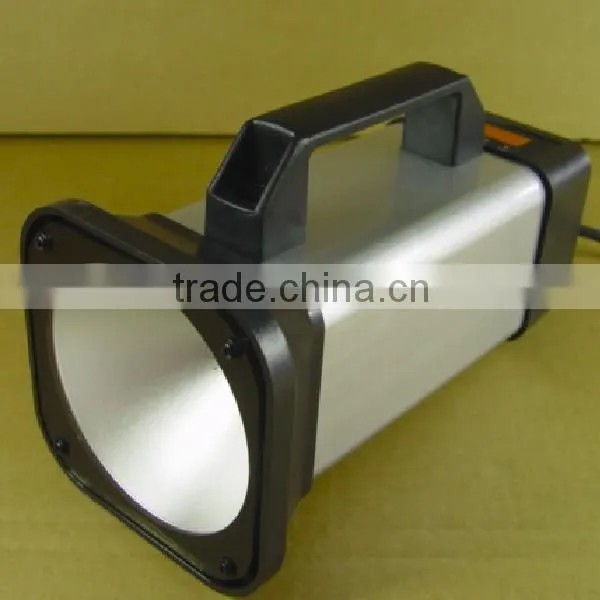

DT316P Digital stroboscope for observing fast repeated motions
Type : Portable
( Connect with power supply directly )
Model No.: DT 316P
Technique parameters:
1.Operating voltage: DT316 P: AC220V
2.Total labor rate: DT316 Series Maximum power is less than 45W
3.The trigger frequency range: 60 rpm / MIN ~ 18000 rpm / MIN
4. The external trigger frequency range: 1 rpm/ MIN ~ 99999 rpm / MIN
5. The ambient light: less than 10,000 lux
6. Using the German Hyman original lamp life 1 * 108
7. External trigger signal range: 5V ~ 12V pulse signal (high level trigger)
8. Dimensions: DT316 Series 250 * 120 * 120 (82)
Application :
1. Stroboscope is mainly used to still images, observation overprint during the production process . Unique easy operation panel, portable, easy to use and design synchronization .
2. Widely used in machinery manufacturing , printing , light industry, textile, power, pharmaceutical , food processing industries .
Note :
1. In order to protect the strobe tube not damaged by the power impact, make sure each powering on interval over 10 seconds.
2. Pls , remember to recharging again after usage every time , make sure the usage for the next time
For more information, pls kindly contact us by email or skype: orchid1900
