2016 Competitive Price, New pvc film for suspended ceilings welding machine Supplier ,CE Approved
Working principle of high frequency welding machine :
Plastic welding machine of high frequency is suitable for two-side welding package. Applying the heating principle of high frequency, the machine makes the intemal molecules of select heating principle of high frequency, the machine makes the intermal molecules of select material vibrating and causes heat energy welding.
Advantage of high frequency welding machine :
1. By adopting the same axle vibrator with specifical low loss.
2. It can adjust its output according to the mould’s specifications and the materials’ thickness.
3. When output of current protection is over large,the machine will cut off the output of the high frequency in order to protect the internal electric from damaging.
4. Apart from the heating of high frequency,the electric machine has 1000W heating wire and thermoset so that it can quicken welding time and get rid of sparks when the mould preheats.
Application of high frequency welding machine:
1. Double Station High Frequency Welding Machine is suitable for welding mouse pad, Large folder, leather pattern, PVC bag, PVC Pattern, watercolor etc
2. Used for welding various plastic welding and melting meanwhile exscind the useless edge automatically.
3. It is fit for welding PVC/PVC, PVC/Card, special plastic material (PE, PS, PC, PET and APET). Blister packing (double blister welding, blister and card welding), leather stamp, logo, writing case, toys, plastic cover, cushion and packaging bag welding; Three-dimensional letters press and bronzing.
Machine features of Double Station High Frequency Welding Machine:
1. Steady frequency: This machine strictly adopts industrial wave band 27.12/40.68 MHz according to the provision of nations "radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment.
2. Spark restrains system: This machine has high sensitive Spark restraint electro-circuit can check out the imbalance current which can bring spark and cut it off, meanwhile alert the operator.
3. Vibrate current setting: The output can be adjusted by adjuster according to thickness of material and the size of products, which ensure the quality of welding and promote production.
4. Security protection: This machine has security protection system of exceed voltage and electric current.
2016 Competitive Price, New pvc film for suspended ceilings welding machine Supplier ,CE Approved
| Items | Parameter | ||||||||||||||
| Model | HX-5000T-A | ||||||||||||||
| Power supply | 220V/50HZ | ||||||||||||||
| Output Power | 5000W | ||||||||||||||
| Input Power | 12KVA | ||||||||||||||
| Oscillation frequency | 27.12MHZ | ||||||||||||||
| Working speed | 400-600 pcs/H | ||||||||||||||
| Rectifier | Silicon Diode | ||||||||||||||
| Vibration tub | 7T85RB | ||||||||||||||
| Gap of electrodes | 250mm | ||||||||||||||
| Max Welding area | 460*610 mm | ||||||||||||||
| Machine size | 1720*2600*1780 mm | ||||||||||||||

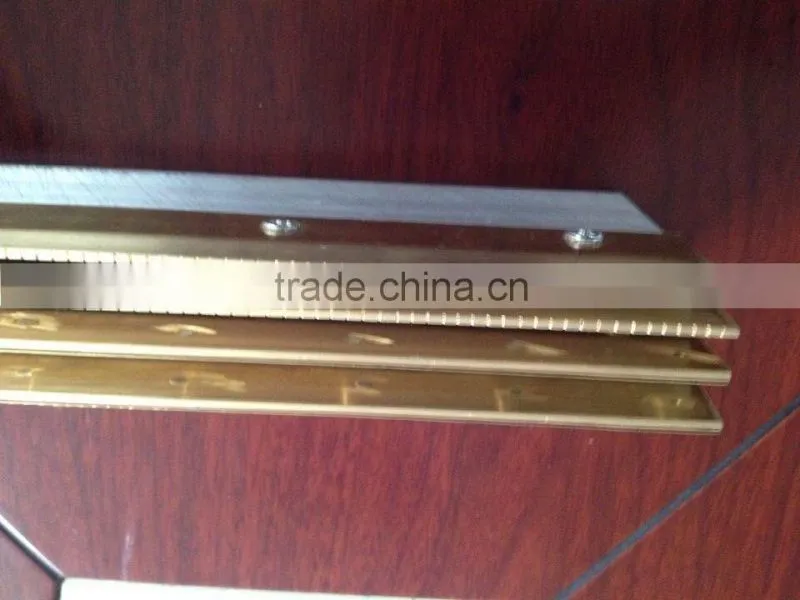

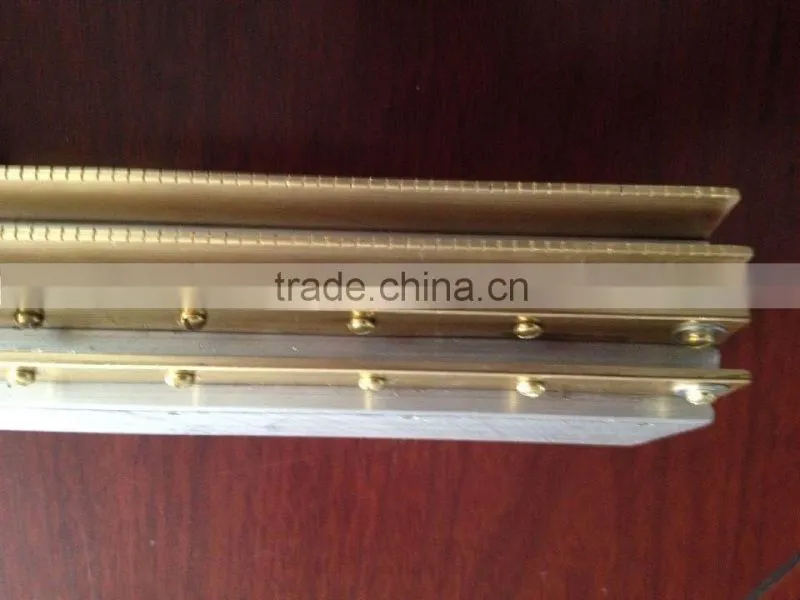

Stretch ceiling film welding molds:

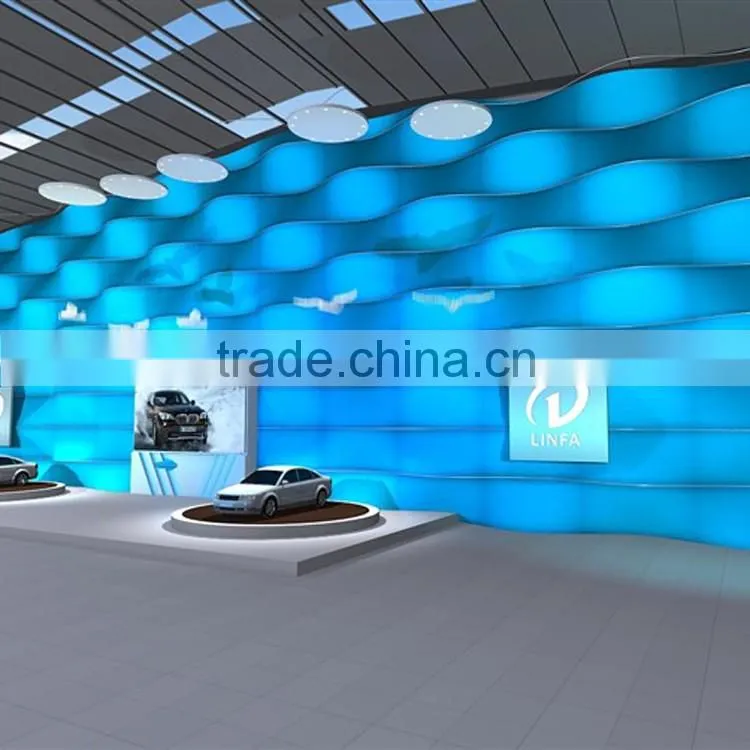

Apply scenes:
Feedback:
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
