Specifications
5 gallon water bottlemachine made of SUS304
filling nozzle SUS304
PLC LG
machine CE qualified
5 gallon water bottle

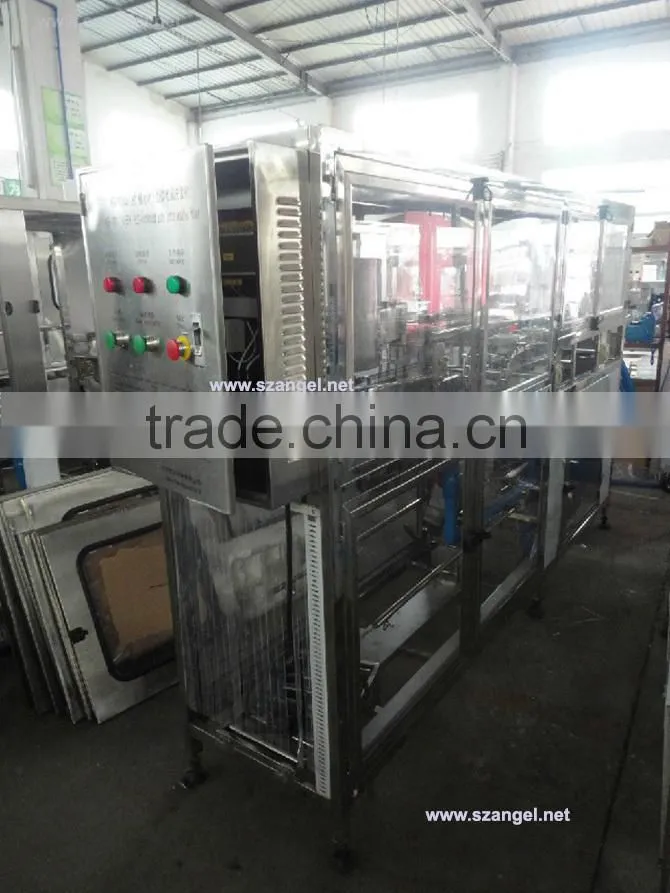

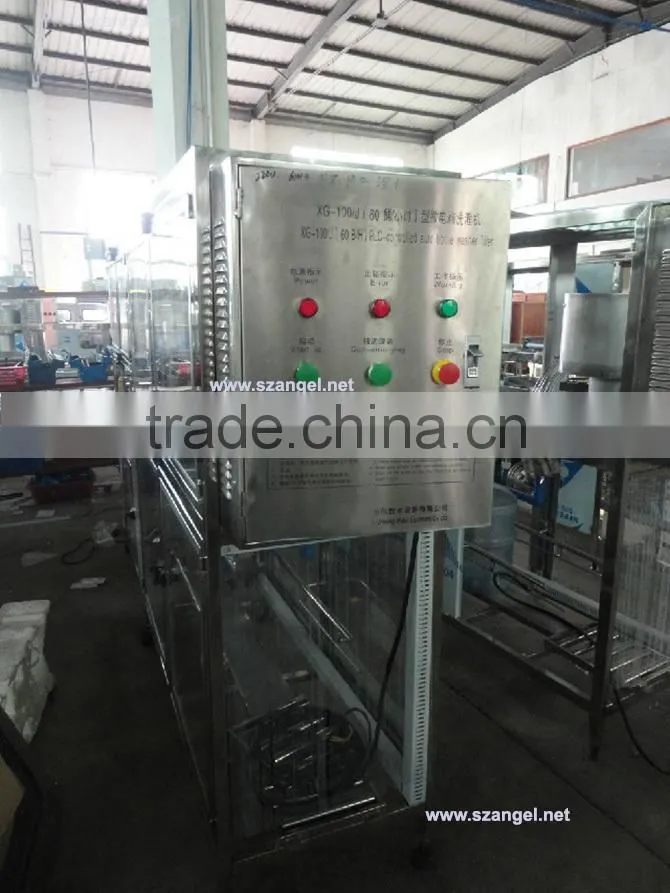

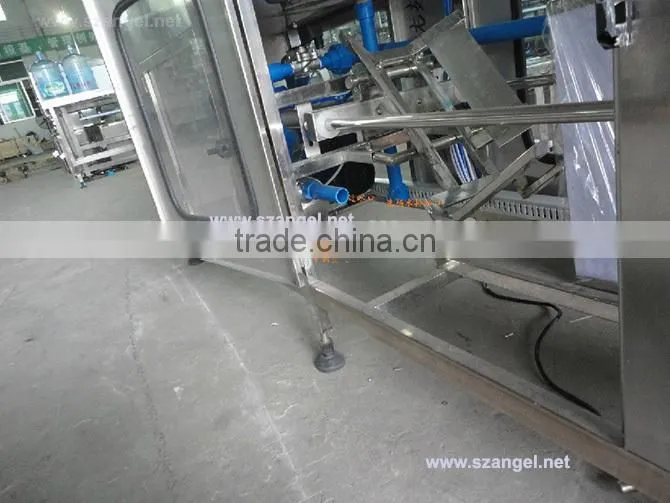

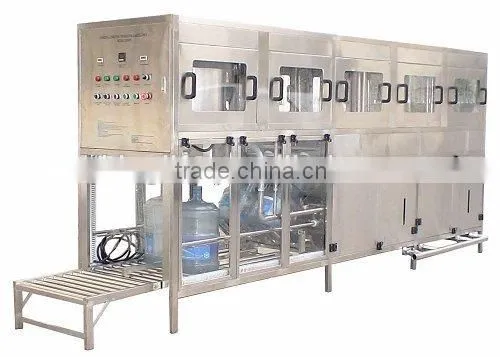

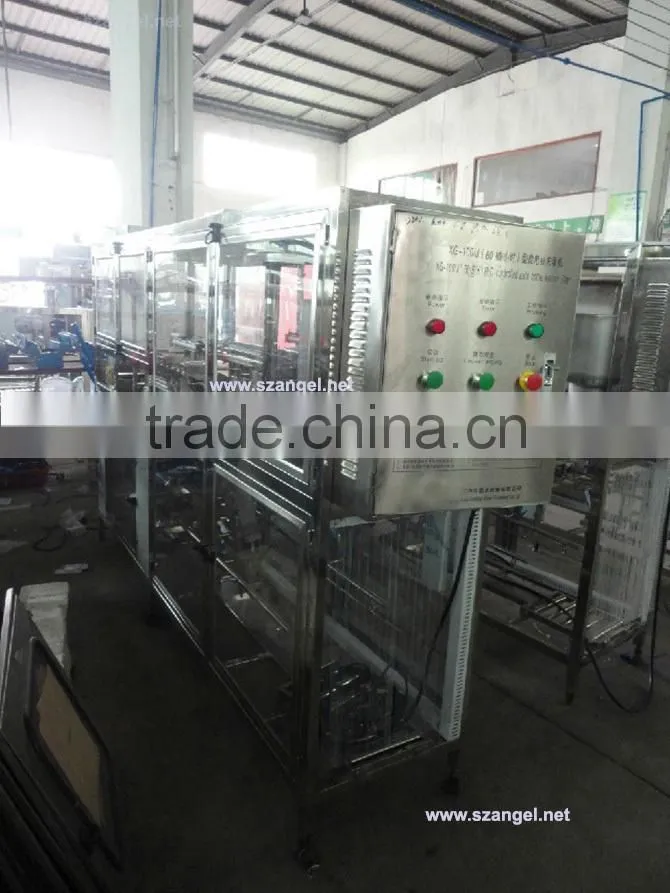

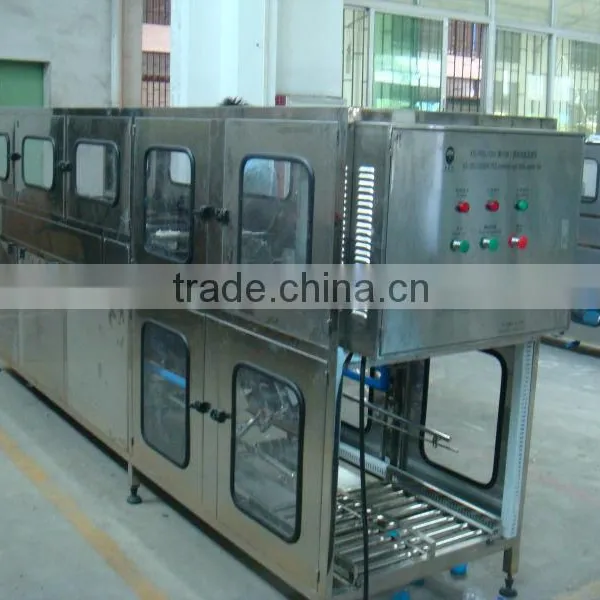

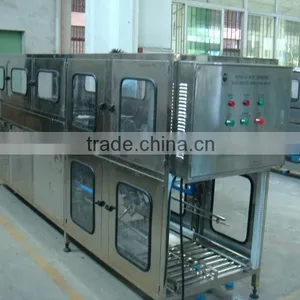

This is a 3-5 gallon water bottle monobloc washing ,filling ,capping machine
Name |
Model |
Manufacturer |
QTY |
|
Water pump |
Medicine washing: BLC037 |
LingXiao, GuangDong, China |
1 |
|
Clean water washing: BLC037 |
1 |
|||
Cap-settle electrical machine |
1:30 60W/220V50Hz |
ZhongTai, Zhejiang, China |
1 |
|
Creepage air break switch |
C65L-32/4P electron |
LG, Korea |
1 |
|
Proximity switch |
Ni10-Q25-AN6x |
Turck, Germany |
1 |
|
Indicator light |
AD series |
LG, Korea |
3 |
|
Push-button switch |
LA series |
3 |
||
Cylinder |
Capping 50*50 |
Atac, Taiwan |
1 |
|
Bottle rinse drive 40*220 |
1 |
|||
Bottle output 50*525 |
1 |
|||
Triad |
AFC-2000 |
1 |
||
Atmospheric pressure valve |
4V210-08//220V 50Hz |
2 |
||
Electromagnetic valve |
DF-90A AC 24V |
Stainless steel electromagnetic valve |
2 |
|
PFK |
14 points |
Panasonic, Japan |
1 |
|
AC contactor |
O910 |
LG, Korea |
2 |
|
Fuse base |
RT18-32 |
LG, Korea |
2 |
|
Injection nozzle |
Handtailor rolling spray system |
Angel, China |
2 |
|
Production capacity |
60 buckets/H |
|||
Bottle size |
18.9L 11.3L |
|||
Dimension |
2430×500×1520(mm) |
|||
Input power |
1900W |
|||
Input voltage |
AC/220V 50Hz |
|||
Service position distribution |

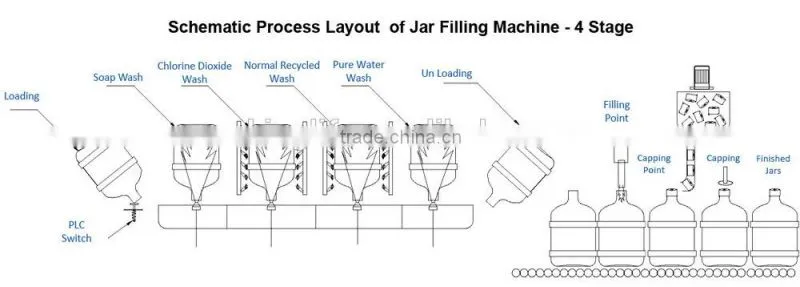

First position: medicine washing; second: clear water washing;third : one filling; one capping. |
|||
Remark |
One year warranty. The main body of the machine choose the 304 stainless steel |
|||
1) bottling machine With capacity of 60 bottles per hour (18.9L bottle)
2) 5 gallons bottle washing, filling and capping machine controlled by PLC
3) Conveyor with motor, bottle loading and unloading system
4) Two lines, 7washing steps with hot detergent, hot water, and pure water
5) Washing bottle inside and outside
6) PC & PET bottles available
7) Imported electrical parts and cylinders
8) Stainless steel 304, imported famous electrical appliances
This machine will be packed in export wooden case ,packing volume about 6CBM (packing dimention 2590*950*1800mm)
1.which kind of bottle can be filled in this machine?
Answer: regular 3-5 gallon bottle (PET/PC/PP material )
2.what kind of drinking water can be filled ?
Answer: Normally , mineral water /pure water .
3.can this machine washing bottle clean ?
Answer: Yes , this machine have 4-6 brush&resin stage (chemical water /Hot water /clean water/pure water)
4.can this machine include bottle loading?
Answer: No , this machine do not include bottle loading system ,bottle loading system need extra payed please contact John for details .
please contact with John Yi ,skype:silversolar if you have more questions.
Developing from our honorable controled company of Shenzhen Angel Drinking Water Equipment Co., Ltd., Shenzhen Kinglife Environmental Technology Co., Ltd. is engaged in the R&D, manufacture and marketing of ultra-filtration (UF) / reverse osmosis (RO) water filters and water purifiers.
Corporate History & Honors:
2001 - Shenzhen Kinglife Environmental Technology Co., Ltd. was founded.
2002 - Our ultrafiltration water filters were launched into the market.
2003 - Our reverse osmosis water purifiers were launched into the market.
2004 - We were invited to join Water Quality Association.
2004 - Our ultrafiltration water filters were awarded "Top Ten Brand in China" and "Environmental Protection Products".
2005 - Our filter products were notarized and awarded "Top Ten Quality Brands of Filter Products in China".
2005 - Our KDF filters were successfully patented and later were awarded "National Technology Invention Award" and "National Science and Technology Progress Award".
2005 - We were awarded "Asia Pacific (International) Environmental Protection Scientific and Technological Innovation Award" and became an honorable member of Asia Pacific Environmental Protection Association.
2008 - Our products were awarded "China Well-Known Brand".
With the support of our parent company, we also provide the following products and services:
1. Design, installation and training of reverse osmosis / ultrafiltration water treatment equipment with production capacity ranging from 300L/H to 100,000L/H
2. Design, installation and training of full sets of 0.25L to 6L small bottle mineral / pure water bottling lines
3. Design, installation and training of full sets of linear / monoblock type semi-automatic and fully automatic equipment with production capacity up to 34,000BPH (bottle per hour)
4. Design, installation and training of full sets of 3/5/6 gallon semi-automatic and fully automatic water filling & packaging production lines with production capacity from 30BPH to 1,200BPH
5. Design, installation and training of full sets of juice / carbonated drink filling & packaging production lines
6. Design, installation and training of 0.05 cubic meters/hour to 20 cubic meters/hour sea water desalination equipment for villas, boats and small islands.
7. Automatic water vending machines for dormitories, schools and living area
8. Water dispensers / coolers for families or offices
We are honored to announce the following customer list:
1. Walmart China - constant pressure pure water supply
2. Carrefour China - pure drinking water supply
3. BYD - pure water bottling plant supply
4. TCL - pure drinking water supply
5. Culligan Haiti - sachet pure water filling plant, 0.5~1.5L pure water bottling plant, 5gallon pure water bottling plant
6. M2O Sudan - 600ml and 1500ml mineral water bottling plant
7. AQUAPLUS Montenegro - 0.5~1.5L and 5gallon pure water filling plant
