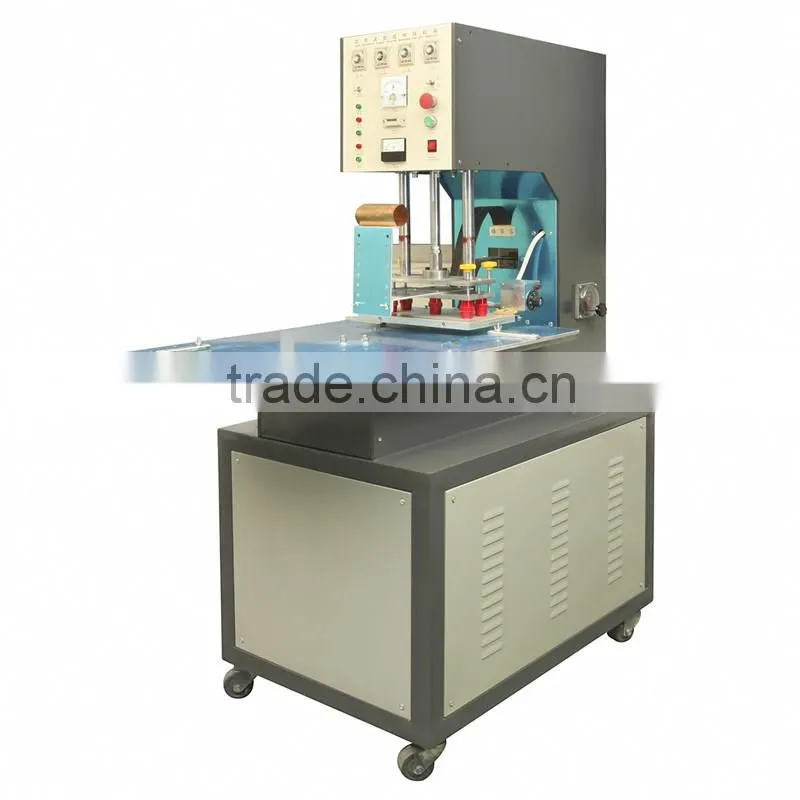

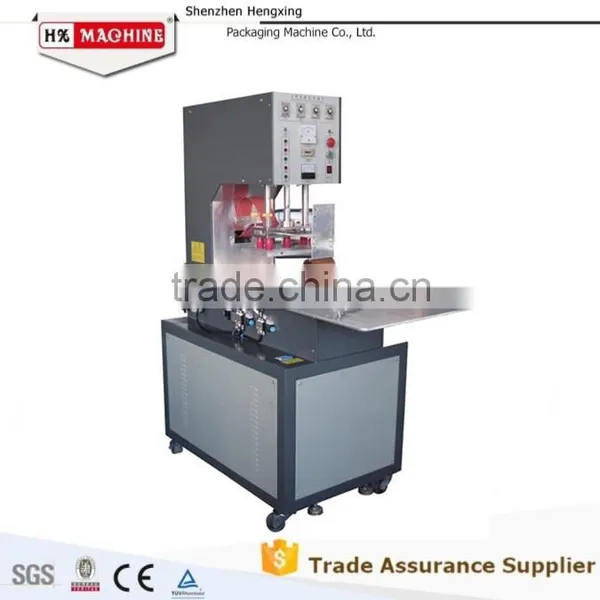

01 HX-5000A 5KW high frequency blister sealing machine

FOB Price

USD $2,699 - $2,999 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Hengxing
Model Number	HX-5000A	Voltage	110V/220V/380V/Customize
Power	5KW	Frequency	27.12MHZ
Welding Area	200*400MM	Dimensions	10006701650 MM
Weight	400KG	Usage	Sealing, blister sealing or welding
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Machine Details

Specifications

Model	HX-5000A	Machine Working Principle:
Output Power	5000W	HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded. This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate. Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Voltage	380V 3P 50/60Hz
Input Power	8KVA
Frequency	27.12Mhz
Oscillation Tube	7T85RB
Anti-Spark System	NL-5557
Gap of Eletrode	250MM
Working Table Size	200*400MM
Machine Dimension	10006701650 MM

NL-5557 Anti-Spark System.

Using high sensitivity America-Impoted anti-spark thyratron tube, which is useful for protect mould and work-piece once machine over curent. More suitable for complex products welding protection

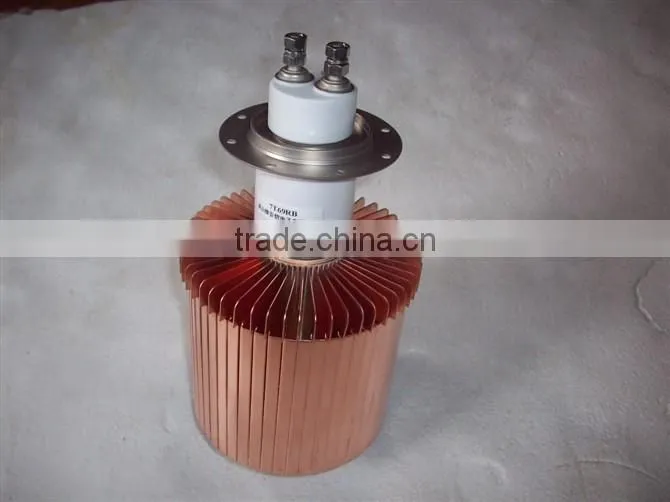

7T85RB Oscillation Tube

Using Jingguang or TOSHIBA original imported oscillation tube, more powerful output power and durable

AirTac Air System

Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.

Introduction

1. HX-5000A High frequency welding machine is used for various plastic welding and melting meanwhile

exscinds the useless edge automatically.

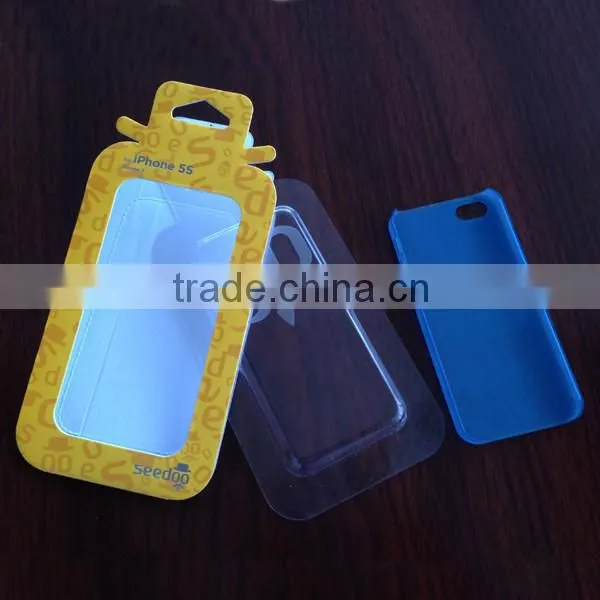

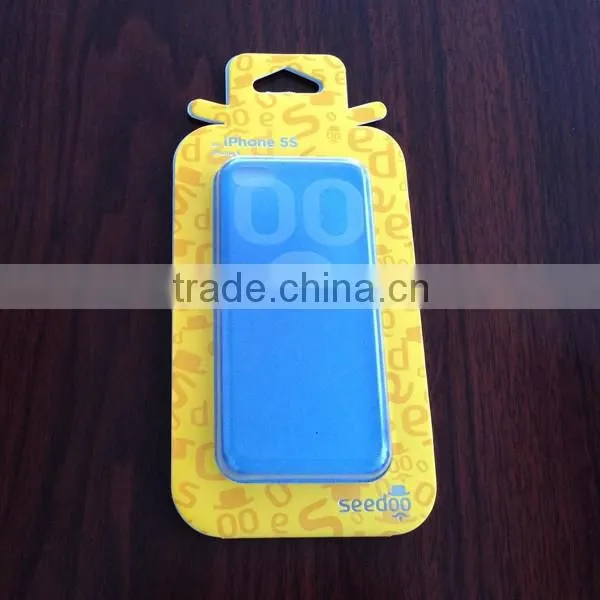

2. HX-5000A High frequency welding machine is suit for welding blister&carton, blister&blister, carton&carton.
After welding, the products are transparent, beautiful, waterproof, moisture proof, dustproof.

3. HX-5000A High frequency welding machine is widely used in hardware, toy, stationery, glasses,battery,
art ware, car accessories, electrical component and souvenir etc.

Application

Certifications

Packing & Delivery

Packing

We use ply-wood case for packing machines, it will meet export standard like safety, protection requirement and durable performance in long time shipping by sea or air, our package no need fumigation.

Delivery

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.

Customers & Feedback

FAQ & Service

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machines are made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before

Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.

4.Engineer can service door to door.
