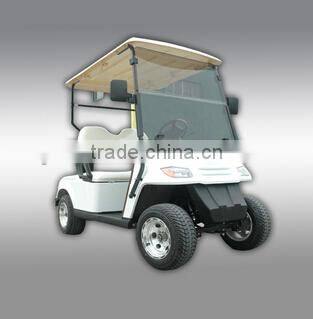

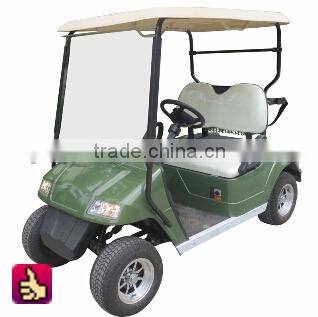

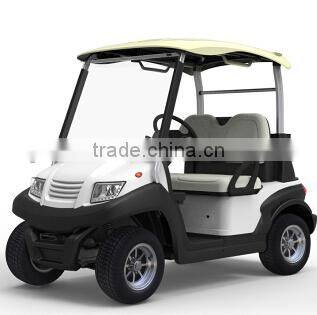

2Seats Electric Golf Cart, Battery Golf Cart, batterie voiturette de golfEG202AK 2Seats Electric Golf Cart, Battery Golf Cart, batterie voiturette de golf
Model: EG202AK
Key components | |
Battery |
Deep cycle, lead acid battery, Trojan brand, imported |
Motor Power |
3KW, 3.8KW,5KW, DC / AC |
Controller |
Curtis brand, Separately excited, imported |
Performance | |
Passenger capacity |
2 |
Range (loaded)* |
>60--100 depends on battery setup |
Max. speed (KM) |
21-40 depends on motor and rear axle setup |
Minimum turning radius (m) |
3 |
Max. climbing ability |
25% |
Max. loading weight |
270kgs |
Overall dimensions (mm) |
2410X1180X1800 |
Body and Frame | |
Frame |
Aluminum alloy beam |
Body |
PP plastic front body + PP plastic rear body |
Roof |
injected plastic |
Windshield |
one-piece Organic glass |
Large Seats: |
Rebond seat + artificial leather, formed armrest, plastic seat bottom |
Floor |
rubber |
Dashboard in black plastic |
forward/reverse switch, battery capacity indicator, ignition key |
Beverage holders |
4 cups drink holders |
Electric system | |
Lighting system and horn |
2 headlights (with LED position light), 2 front turn signals, 2 LED taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V/36V to 12V), horn. Reversing alarm |
Digital meter |
Speedometer,odometer,various indicators including F/R indicator,turning lights indicator,headlight indicator |
Charger |
input 110V-240V~50Hz-60Hz, output 36V/48V, 25A/22A |
Steering and Suspension | |
Steering system |
Single-stage rack and pinion steering system, automatic rocker compensating function |
Brake system |
4-wheel hydraulic drum brake+EM brake+Regenerative brake |
Accelerator |
Stepless speed change |
Suspension system |
Front independent suspension and rear plate spring + cylinder hydraulic shock absorber |
Driving mode |
Rear axle two stage deceleration, motor direct driving |
Rear axle |
Integrated |
Wheel & Tyre |
10x6 Alumimum wheel & 205/50-10 4PR |
*Range will vary depending on temperature, grade, payload and driving style

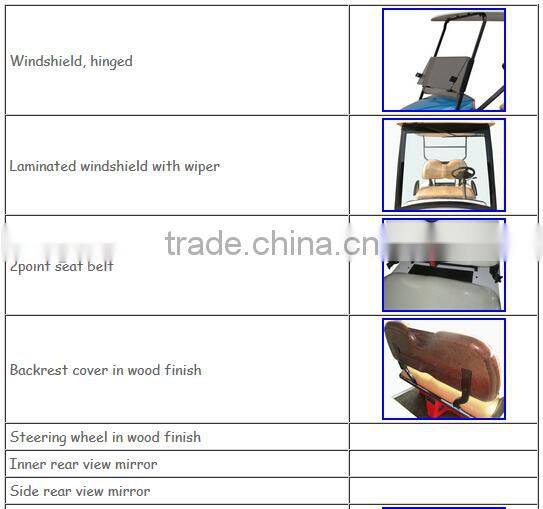

Optional Parts
