Help CenterInvisible Socks Knitting Machine
Related Products
-
Solid Socks Knitting MachineUS$ 3,000 - 5,000MOQ: 1 Set -
Full Computerized Socks Knitting MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
Automatic Warp Knotting Machine Factory Price Quality ChoiceUS$ 6,000 - 30,000MOQ: 1 Set
-
20D-3000D Filament Yarn Warp Knotting MachineUS$ 6,000 - 30,000MOQ: 1 Set
-
Plain Socks Knitting Machine Sock MachineUS$ 3,000 - 3,200MOQ: 1 Set
Main Technical Specification of Products:
1. One feeder for main yarn, four colours for patterns.
2. Imitative double cylinder.
3. Two feeders for main yarn, making cross patterns.
4. Can make invisible socks and 3D socks and special kind of socks.
5. Five colors in one line, there are 10 colours in the socks pattern.
6. High heel, big heel, small heel, 180 degree against sock mouth, two colors for sock heels, sock toes.
7. Back up battery can save the storage programs.
8. UPS device can keep knitting.
9. Taking the double shovel-needle technology, when knitting the heel and toe, the angle is adjusted by computer in this way, can improve the efficiency, overcome the shortcoming of sidle shovel neddle.
10. According to customer's need, special kind of machines can be ordered.
11. This machine adopts a new frame, an infrared device.
Main Specification and Functions:
| Modle | Needle cylinder | No. of needles and needles selection | Technical specification | Technical specification |
| FZ-508S | 3 1/2 | 42-220N plain 5 electronic selectors | Speed 320 rpm 10 colors feeders 8 main feeders | Two feeders into yarn, 8 main feeders, 4 color feeders, five colors in one line, there are 10 colors in the socks pattern. |
| FZ-508S | 3 3/4 | 42-200N terry 42-240N plain 5 electronic selectors | Terry maximum speed is 280rpm. the current speed according to the materials 10 color feeders 8 main feeders. | |
| FZ-508S | 4 | 42-220N terry 42-300N plain 5 electronic selectors |

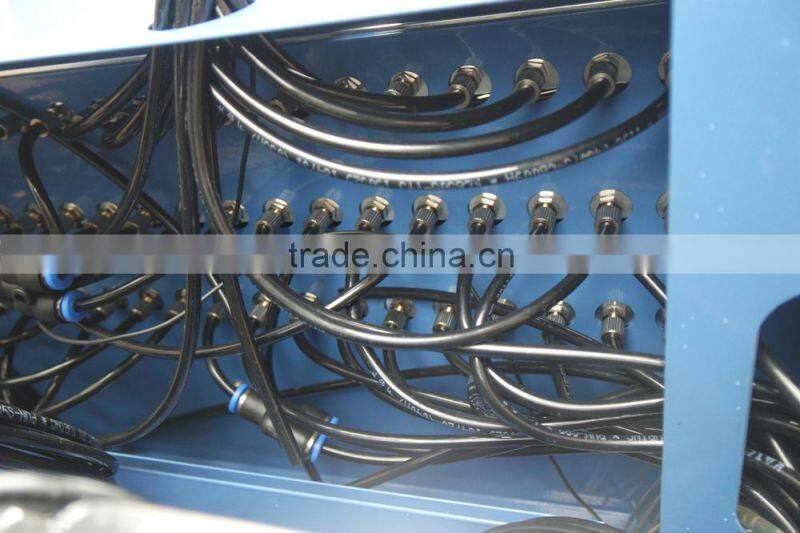

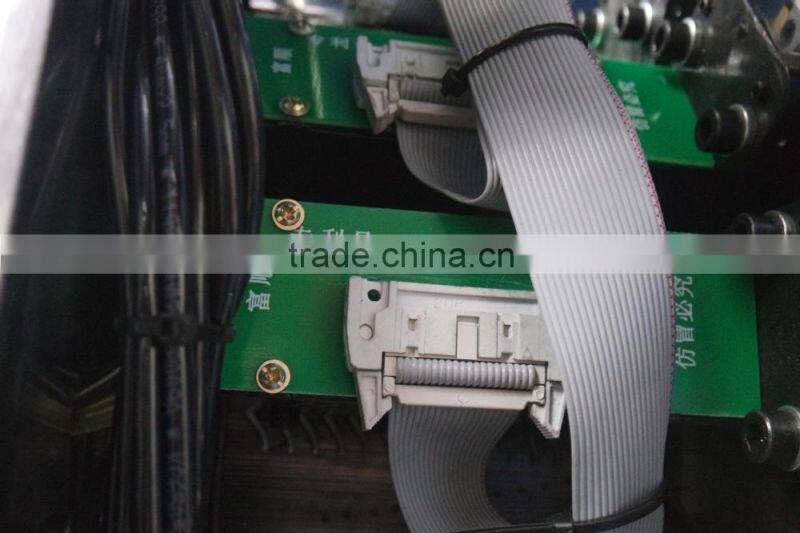

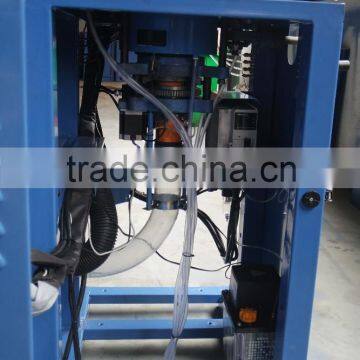

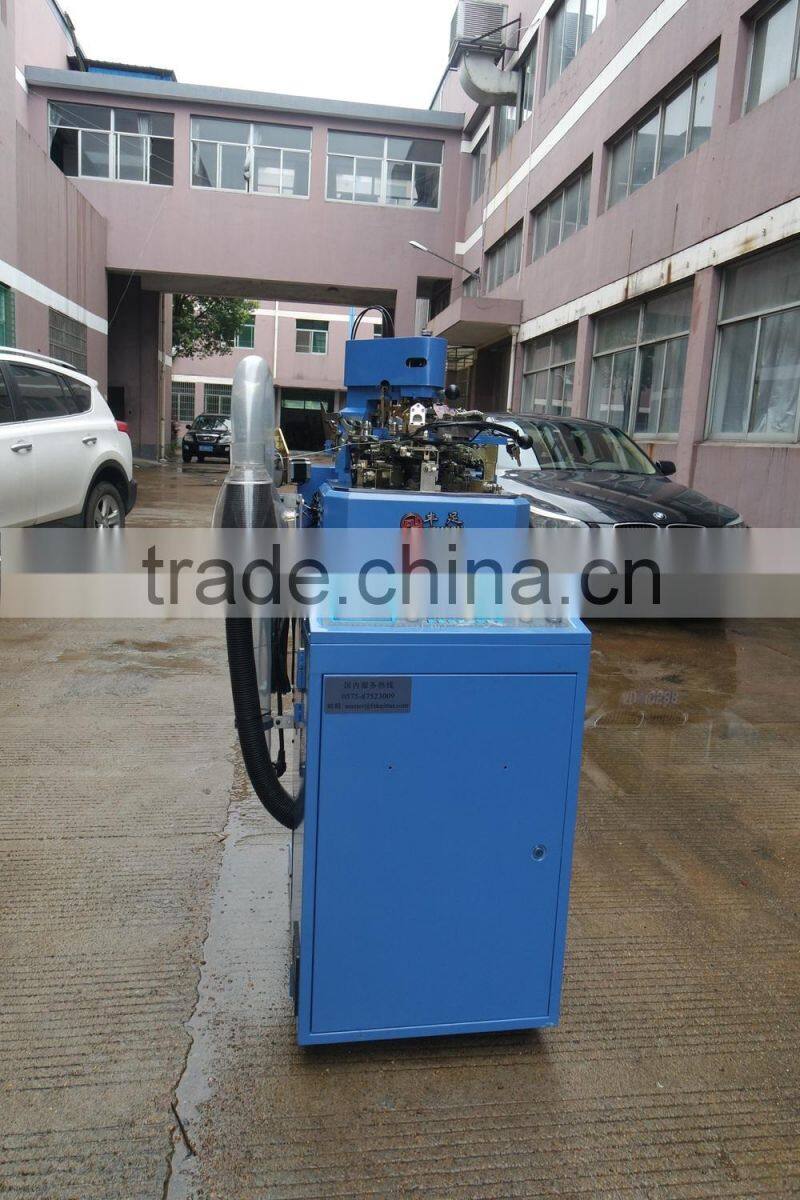

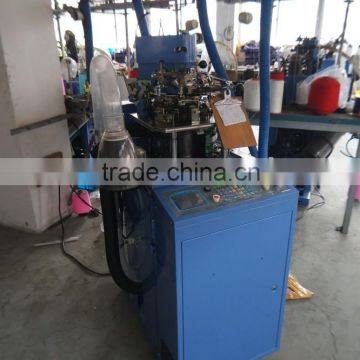

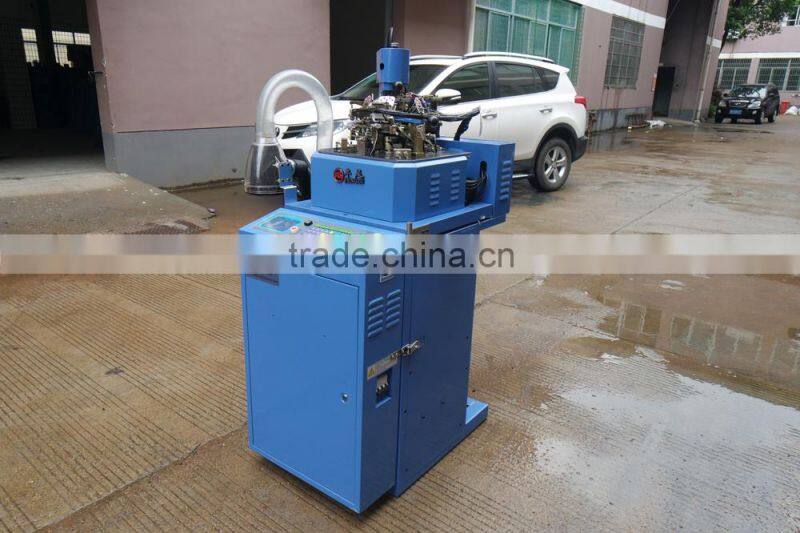

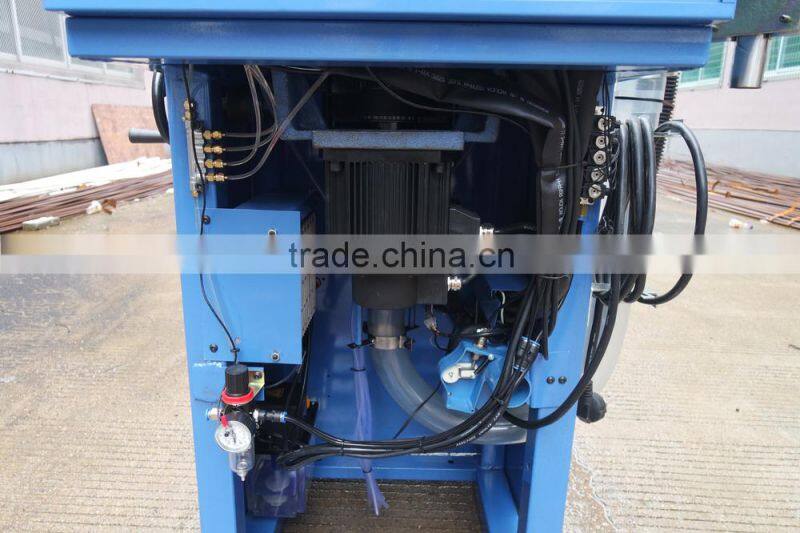

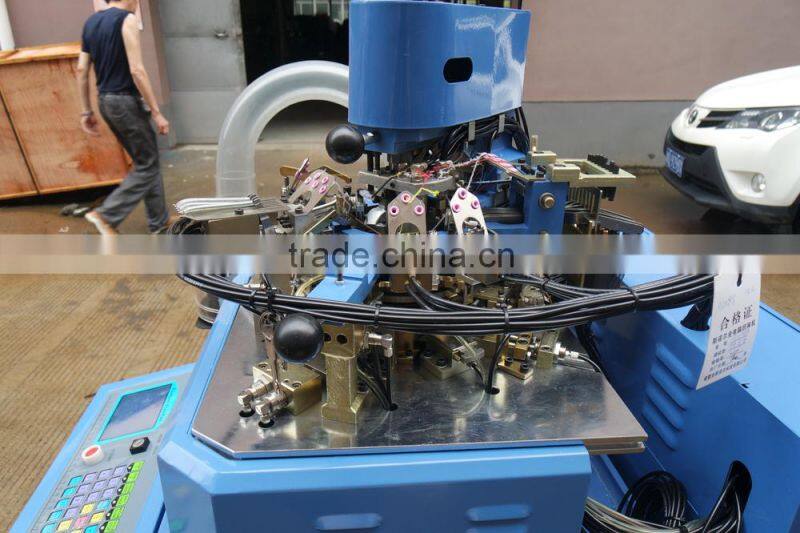

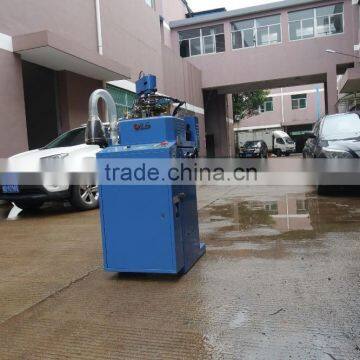

Machine Pictures:
