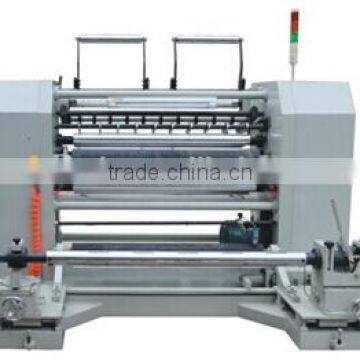

Help CenterAutomatic With Touch Screen Plastic Film Roll Slitting Machine,Rigid Pvc Film Slitter Rewinder
Related Products
-
Slitting And Rewinding Machine For Thermal PaperUS$ 7,000 - 10,000MOQ: 1 Set -
2015 New Design Automatic Non-woven Sheet Cutting&Loop Welding Machine for Galvanized SheetUS$ 22,000 - 25,000MOQ: 1 Set
-
Automatic Electrical Motor Film Rewinding MachineUS$ 8,000 - 12,000MOQ: 1 Piece
-
Model Aluminum Roll Slitting and Rewinding Machine High Efficiency MachineryNegotiableMOQ: 1 Piece
-
Simple Type Automatic Plastic Film Slitting Rewinding MachineNegotiableMOQ: 1 Piece
| Main Introductions | |||
| This machine is suitable for slitting and rewinding such various roll materials as PP non-woven, BOPP, PET, CPP, CPE, PVC, aluminum foil and paper. In the process of production, according to the different need for cutting material. This machine integrates mechanical and electrical. It use PLC touch screen computer. Operation is more flexible and convenient.The automatic correction and photoelectric sensor are used for tracking the edges and colors. Feeding tension is controlled by magnetic powder brake. Winding adopts magnetic powder clutch control. It can fixed length arbitrary. | |||
| Main Specifications and Equipments | |||
| Model | XD-SF700 | XD-SF1100 | XD-SF1300 |
| Max. Width of Roll | 20-700mm | 20-1100mm | 20-1300mm |
| Max. Diameter of Toll | 700mm | 700mm | 700mm |
| Min. Width of Final Roll | 450mm | 450mm | 450mm |
| Speed | 5-200m/min | 5-200m/min | 5-200m/min |
| Deviation | <±0.5mm | <±0.5mm | <±0.5mm |
| Total Power | 4kw | 4.5kw | 5kw |
| Machine Weight | 1200kg | 1500kg | 1800kg |
| Overall Dimensions | 1800*1300*1500mm | 2200*1300*1500mm | 2400*1300*1500mm |
| Configuration | |||
| Unwinding with EPC (edge position control) | 1 set | ||
| Unwinding and winding with Pneumatic shaft axis | 3 set | ||
| Unwinding with magnetic powder brake | 5kg, 1 set | ||
| Winding with magnetic powder clutch | 5kg, 2 set | ||
| Main motor | 4kw, 1 set | ||
| Cut edge motor | 0.5kw, 1 set | ||
| Circular knife and straight knife | 10 set | ||
| Control system PLC with touch screen | 1 set | ||
| Feeding cylinder | 2 set | ||
Packaging:wooden foot and plastic film
Terms of payment: 30% T/T in advance,the balance should be paid before the delivery
Delivery time: Within 20 days after receiving the deposit before the shipment
Guarantee period and maintenance:
Seller guarantees that the equipment is accordance with the function and requirement without manufacturing defects. The guarantee period is one year after the installation and adjustment.
Buyer is responsible for the costs including maintenance and spare parts if the equipment damage is caused by the buyer's improper use, not caused by the seller's design and manufacturing.
If the buyer needs seller to send an engineer the installation and training.The buyer should cover the all of expense for the seller's engineers, such as, air-tickets, visa, accommodation and local traffic charges, salary(USD 80/day) in buyer's side. And the buyer should do his best to cooperate the engineers of sales party in installation, supply the enough labor and tools, necessary accessory with them.
Our company is based on quality and guided by science and technology. We regard internationally advanced level of paper cutters as the code of conduct. In order to meet the rapid development market requirements, we are making innovations to take advantages of ourselves, developing high performance and high quality series of paper cutters that are light, mechanical, electric and hydraulic. Our products are well appreciated by users.
Q: Are you a factory or trading company?
A: We are a factory and manufacturer
Q: Can you design machines according to our request?
A: Of course. You can provide your size, color, then we will design for you.
Q: Do you provide after-sale service?
A: Sure, it is a must.
Q: How about your machines’ quality?
A: Our machines are famous for high quality and reasonable price, I am sure you will be satisfied with them.
