Specifications

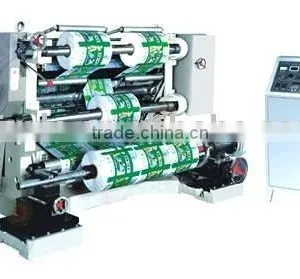

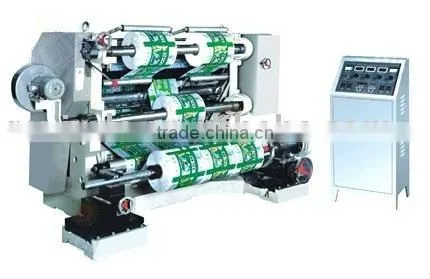

High speed slitting and rewinding machine.used to slit the OPP,PVC,PET,CPP,CPE,Aluminum foil etc.This machine is suitable for slitting and rewinding such various roll materials as BOPP,PET,CPP,CPE,PVC,aluminum foil and paper,etc.and can cut edge separate and cut the material according to different requirements during production,this machine is a kind of both vertical and horizontal slitting&rewinding machine,unwinding&rewinding shaft and located in front and back position of machine,indepent master control panel,more flexible and even easier operation.Automation EPC for unwinding,photocell is suitable for tracking the edge and color of transparent material.Equipped with magnetic powder brake for unwinding tension control.Magnetic clutch control for rewinding tension control.It can be equipped with rim charge conveying or rewinding device(which can be selected on order).Automatic meter counting device.
| Description | LFQ-700 | LFQ-1100 | LFQ-1300 |
| Max.width of mother roll | 700mm | 1100mm | 1300mm |
| Max.diameter of mother roll | 600mm | 600mm | 600mm |
| Width of final roll | 30-600mm | 30-600mm | 30-600mm |
| Cutting Speed | 5-160m/min | 5-160m/min | 5-160m/min |
| Precision for correct and error | ±0.5mm | ±0.5mm | ±0.5mm |
| Total power | 2.2kw | 3kw | 3kw |
| Gross weight | 1200kg | 1500kg | 1800kg |
| Overall dimensions | 2000x1110x1400mm | 2400x1110x1400mm | 2600x1110x1400mm |
