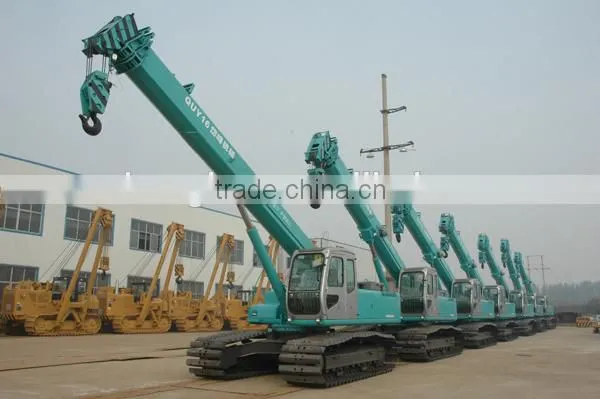

16tons ,25tons Telescopic Crawler Crane QUY25 QUY16
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DAIFENG
Place of Origin:
China
Model Number:
DGY25, DGY40, DGY55, DGY70, DGY90,QUY16, QUY25
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
2 days
Related Products
-
DAIFENG PIPE LAYER DGY90 DGY70 DGY55 DGY45 RadiatorNegotiableMOQ: 1 Set -
DAIFENG Pipe Layer Transmission,DGY90 TransmissionNegotiableMOQ: 1 Piece
-
DAIFENG PIPE LAYER Winch MotorNegotiableMOQ: 1 Set
-
SHANTUI PIPE LAYER Winding Motor,SP25Y SD45Y SD70Y SD100YNegotiableMOQ: 1 Set
-
DAIFENG PIPE LAYER Winding MotorNegotiableMOQ: 1 Set
Brand Name
DAIFENG
Place of Origin
China
Model Number
DGY25, DGY40, DGY55, DGY70, DGY90,QUY16, QUY25
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
DAIFENG CRANE machine QUY16 QUY25 Competitive price, over world sales service
Pipe layer machine and Crawl Crane
DGY15, DGY20, DGY25, DGY40, DGY55, DGY70, DGY90, QUY16, QUY25 with CUMMINS engine and same fuction as Komatsu , very competitive price.
welcome to visit us and offer u best price. and service.
| Engine | Engine Model | Cummins 6BTA8.3-C |
| Engine Rated output | 160kW/2200rpm | |
| Fuel Consumption | 230g/kW.h | |
| Max. Rated lifting capacity | 25,000kg | |
| Max lifting moment | Base boom | 735kN.m |
| Full extended boom | 450kN.m | |
| Max lifting height | Base boom | 9.8m |
| Full extended boom | 27.8m | |
| Base boom length | 9.5m | |
| Full extended boom length | 27.8m | |
| Max hoisting speed of the hook | 12.5m/min (six part line) | |
| Track gauage | 2740mm | |
| Length of track on ground | 4420mm | |
| Track Pitch | 203.2mm | |
| Track width | Triangle,1100mm(optional) | |
| Walking speed | 0-2 km/h | |
| Lifting,Steering winch | Planetary reducer and decelerator inside | |
| Rotation circuit pressure | 20Mpa | |
| Volume of hydraulic oil tank | 3.0-500 L | |
| Min clearance part from ground | 485 | |
| Working surrounding | -40°C+60°C | |
| Grade ability | 20o | |
| Suitable Altitude | 0-3600m | |
| Ground pressure | 36kPa | |
| Overall dimension(L*W*H) | 12.25M*3.84M*3.45M | |
| Operating weight(kg) | 34500kg | |
