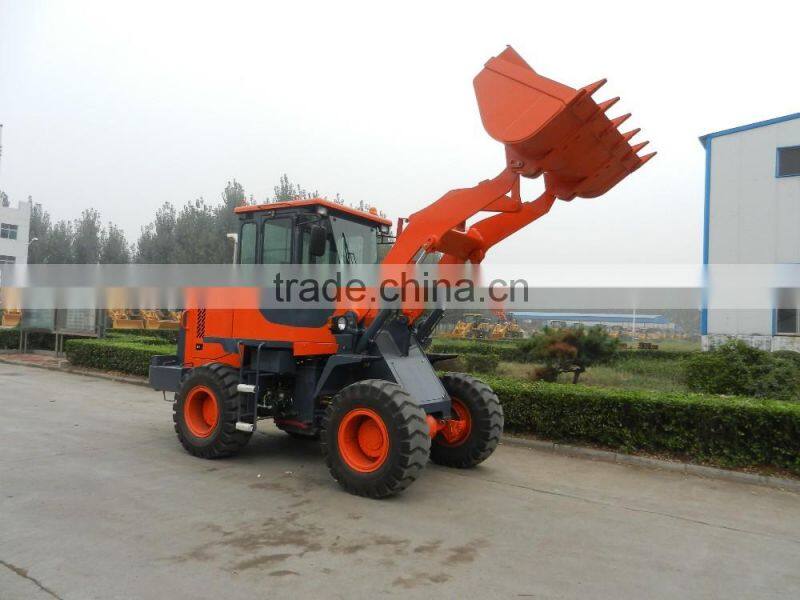

mini wheel loader
1: WHEEL LOADER MODEL
ZL06 ZL08 ZL10 ZL12 ZL15 ZL18 ZL20 ZL30
SL50W SL50WA SL50W-2 SL50W-3 SL30W SL60W
SEM630B SEM639 SEM650 SEM652 SEM660B
DG938 DG956 DG966
2: LOADER BRAND
SHANTUI , DEGONG , LIUGONG, LONKING, XCMG, XGMA , SDLG, SEM , CHANGLIN , LOVOL
3: LOADER PARTS
Bucket, Cab , cylinder, engine , arm , rod , cover , filter, radiator, transmission , torque ,
| ZL20 Description | Specifications | Unit |
| Buckdt capacity | 1 | m3 |
| Rated load | 2000 | kg |
| Dumping clearance | 2800-3100 | mm |
| Dumping reach | 1050 | mm |
| Raising time | 4.7 | s |
| Total cycling time | 10 | s |
| Max.breakout force | 40 | KN |
| Max.breakout force | 60 | KN |
| Articulation angle | 35 | o |
| Min.turn radius | 4600 | mm |
| Climb ability | 30 | o |
| Wheel base | 2350 | mm |
| Tread | 1500 | mm |
| Traveling speed | ||
| 1 st(F/R) | 10 | km/h |
| 2 nd(F/R) | 24 | km/h |
| Engine | ||
| Model | LR4108G | |
| Rated power/Ratedspeed | 60/2400 | |
| L×W×H | 5800×2000×2750 | mm |
| Operating weight | 5.7 | t |
| Tires | 16/70-20 |
| ITEM | SL30W | |
|---|---|---|
| Engine | Xichai CA6DF1D-12GAG2 | |
| Rated power (kW/rpm) | 23/550 | |
| Displacement (L) | 6.557 | |
| Minimum diesel consumption (g/kW•h) | 220 | |
| Ma×imum torque (NM) | 520 | |
| Operating weight (kg) | 10800 | |
| Dimension L×W×H (mm) | 7170×2484×3206 | |
| Center distance of tires (mm) | 1856 | |
| Wheel base (mm) | 2700 | |
| Loading capacity (t) | 3 | |
| Bucket capacity (m3) | 1.7 | |
| Ma×imum traction force (KN) | 95 | |
| Ma×imum breakout force (KN) | 96 | |
| Static tipping load (full turn) (kg) | 6000 | |
| Gradeability (°) | 30 | |
| Minimum turning radius (mm) | Outside of bucket | 5300 |
| Outside of tire | 6004 | |
| Turning angle (°) | 36 | |
| Dumping height (mm) | Standard Arm | - |
| E×tended | 3057 | |
| Long | 3200 | |
| Dumping reach (mm) | Standard Arm | - |
| E×tended | 906 | |
| Long | 886 | |
| Lifting/Lifting,dumping and lowering time (S) | 55/97 | |
| Travel speed (km/h) | Forward 1 | 0–5.8 |
| Forward 2 | 0–10.8 | |
| Forward 3 | 0–18.4 | |
| Forward 4 | 0–35 | |
| Reverse 1 | 0–7.8 | |
| Reverse 2 | 0–27 | |
| Reverse 3 | - | |
We also have the following parts:
UNDER CARRIER PARTS, ROLLER, IDLER, TRACK LINK, SHOE , CYLINDER, PUMP, VALVE, RIPPER, BIT END , CUTTING EDGE ,POINT , TUBE , PIPE ,cab , seat ,lamp bucket, filter , torque converter , transmission ,final drive , main pump, main valve, FINAL drive , sprocket
Cylinder block, cylinder head ,main bearing , crankshaft, piston,liner, camshaft, Rod, oil cooler, water radiator, oil pan, oil pump, fuel pump, water pump, turbocharger, fan ,belt, injector, alternator, flywheel, starting motor
