Rubber Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Rubber Injection Press MachineNegotiableMOQ: 1 Set -
TUOWEI Vertical Rubber Injection Molding MachineNegotiableMOQ: 1 Set
-
300Ton Vertical Rubber Injection Molding Machine/Rubber MachineNegotiableMOQ: 1 Set
-
2015 Computerized Rubber Slitting Machie Factory PriceUS$ 1 - 2,000MOQ: 1 Set
-
CNC Silicon Cutting MachineUS$ 1 - 1,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
After-sales Service Provided
Engineers available to service machinery overseas

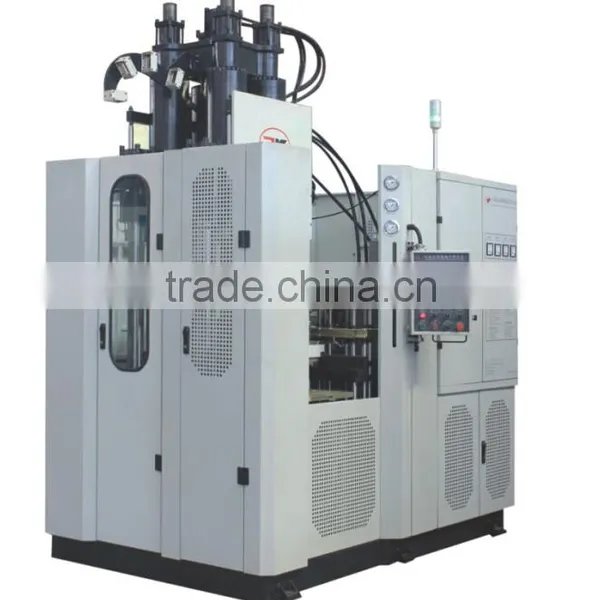

Rubber Injection Molding Machine
Application & Features:
HY Series rubber injection molding machine is an advanced hot-pressing molding equipment for rubber products. Its structure is compact with wide applicability, high efficiency and high yield. Especially it is suitable for the rubber model products of complex shapes, exhausting difficultly and difficult to molding.
Technical Parameter:
| MODEL | HY-D500×500 |
HY-D550×600 |
HY-D600×650 |
HY-D650×730 |
HY-D700×800 |
| Clamping force | 1500 kN |
2000 kN |
2500 kN |
3000 kN |
4000 kN |
| Heating plate size | 500 mm×500 mm |
550 mm×600 mm |
600 mm×650 mm |
650 mm×730 mm |
700 mm×800 mm |
| Heating plate spaceing | 400~500 mm |
450~600 mm |
500~650 mm |
500~700 mm |
600~800 mm |
| Theoretical injection capacity | 1000 cm³ |
1500 cm³ |
2000 cm³ |
2500 cm³ |
4000 cm³ |
| Screw diameter | Ø40 mm |
Ø45 mm |
Ø45 mm |
Ø50 mm |
Ø55 mm |
| Screw rotational speed | 0~120 r/min |
0~120 r/min |
0~120 r/min |
0~120 r/min |
0~120 r/min |
| Plunger diameter | Ø60 mm |
Ø85 mm |
Ø75 mm |
Ø110 mm |
Ø115 mm |
| Injection pressure | 170 MPa |
170 MPa |
170 MPa |
170 MPa |
170 MPa |
| Mould opening stroke | 400 mm |
500 mm |
500 mm |
500 mm |
600 mm |
| Motor power | (7.5+5.5) kW |
(11+5.5) kW |
(11+5.5) kW |
(11+5.5) kW |
(11+7.5) kW |
| Heating power | 12 kW |
19.1 kW |
19 kW |
25 kW |
26 kW |
| Extemal dimension(L×W×H) | 2550mm×1910mm×4000mm |
2835mm×2140mm×4200mm |
3600mm×2460mm×2400mm |
3000mm×2504mm×4600mm |
5000mm×3100mm×3250mm |
| Oil tank capacity | 380 L |
420 L |
450 L |
520 L |
580 L |
