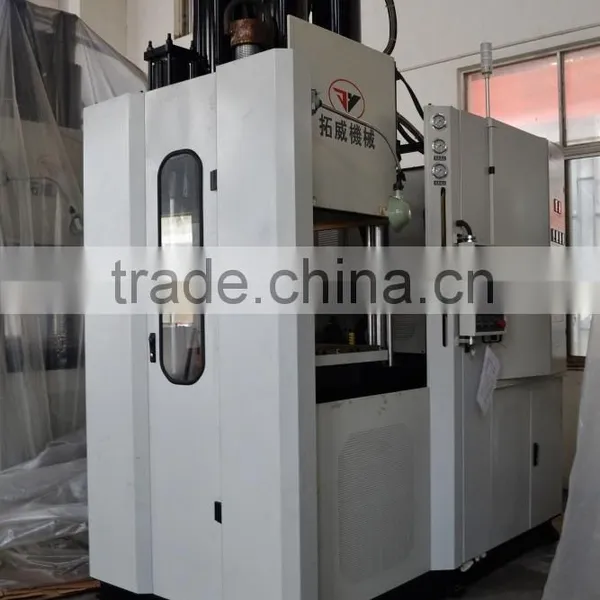

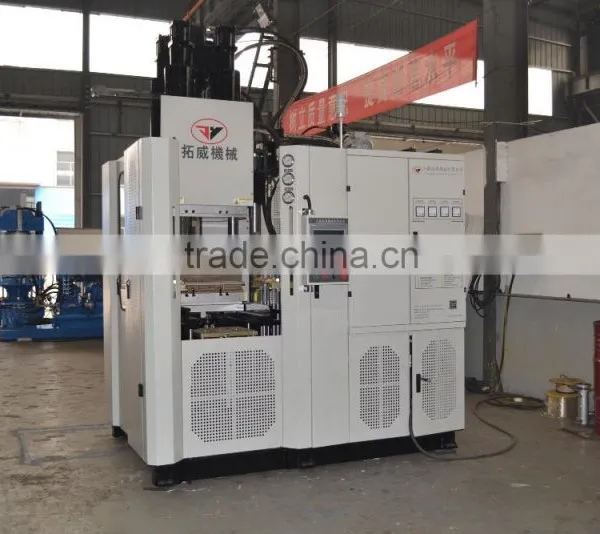

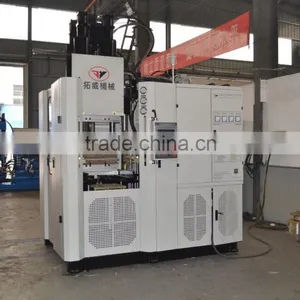

Energy Saving Vertical Rubber Injection Molding Machine ( First-in, first-out)
Stationary four cylinders balancing vertical injection structure, hyperstatic injection force
Optimized shot feeding rod greatly reduces the rubber leakage and is convenient and fast for maintenance and rubber replacement
Innovative shot feeding tube constant temperature system plus ultrashort nozzle make every few remaining materials and minumum pressure loss
Specification under 500Ton adopts the international popular and davanced FIFO first-in first-out injection way
Totally enclosed safety shield and grating, higher equipment operation safety grade
Hot plate heating zone control makes teperature more even

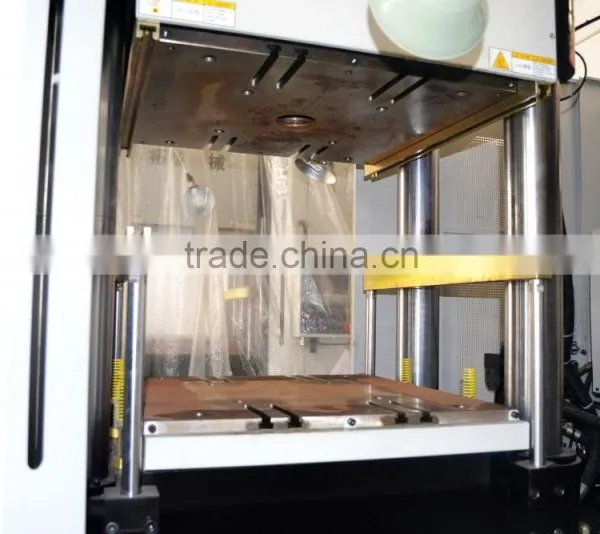

Bigger table board design
More automatic functions may be selected
Model Number: TWL-300T
Clamping Force: 300Ton
Stroke: 500mm
Working Plate Size: 700*700mm
Diameter of cylinder: 450mm
Max. Plate Space: 550mm
Min. Mould Height: 60mm
Crane Travel: 200mm
Joe Travel: 200mm
Volume Injection: 3000cc
Injection Pressure: 220MPa
Screw Diameter: 45mm
Nozzle Aperture: 6mm
System Pressure: 21MPa
Horse Power: 20HP
Heater Power: 22KW
Total Power: 40KW
Gross Weight: 9300KG
Machine Size: 3100X1300X4000mm
