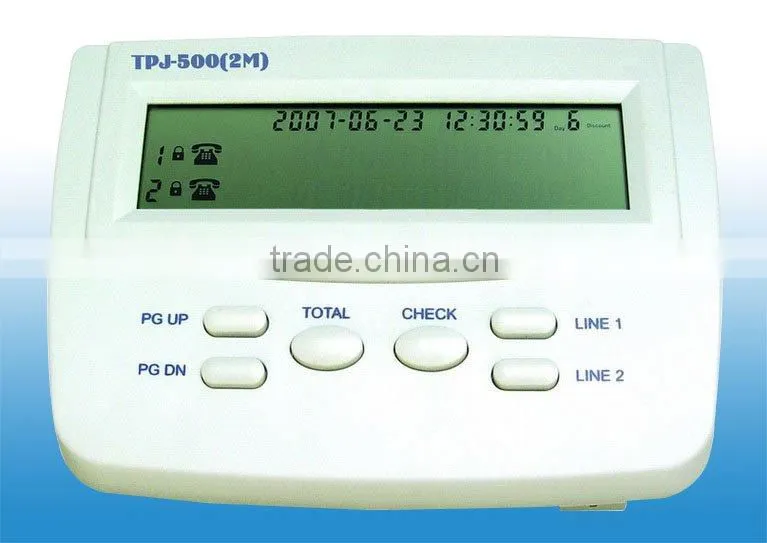

2 line Phone Billing Meter (direct supplier)

Specifications

Phone Billing Meter/Billing Meter
1. Polar-reverse of 12/16KHz or pulse signal
2. Many tariff rates
3. 2,000 phone records

2 line Phone Billing Meter/Billing Meter features

1) With large LCD screen

2) Realize management by center network management system
3) Comply with the technology requirements and testing means for multi-ports meters promulgated by the Ministry of Information Industry of China
4) Can be input many kinds of tariff rates, such as rates of international, internal,
local, free and forbidden calls
5) Signal for billing startup: polar-reverse, 12 / 16kHz pulse, manual or delay automatically
6) IdentifY call number automatically and the tolerance is less than 1 second
7) Can trace the last 2,000 records of telephone number, duration, and total sum
8) Total automatically daily subtotal sum and the last 32-day grand total amount
9) With inner modem, supporting the function of network center manage, tariff rate
download and phone bill upload
10) Anti-lightning, anti-jamming design and steady performance
11) With rechargeable batteries, it can at least work for 8 hours after power cut
12) With LCD display
13) Remote display box for option
14) Function of phone bill printing for option

Phone Billing Meter/Billing Meter specifications
1) Environment: away from rain, sun, high temperature, dust, alkali, acid, strong
vibration situation or strong electromagnetic wave
2) Atmospheric pressure: 86kPa - 106kPa
3) Relative humidity: 10% - 90%
4) Noise: <60dB
5) Temperature: -10°C - 40°C

6) Height: 15mm
7) Width: 70mm
8) Depth: 255mm
9) Weight: 0.95kg
10) Display operator: character LCD with backlight
11) Customer: 3-line character LCD with backlight
12) Keyboard: six function keys
13) Dialing method: DTMF
14) Access: PSTN
15) Power: AC 220V, 50/60Hz, DC 9V, 800mAh
16) Battery: fully charged battery supports 16h calling



Phone Billing Meter/Billing Meter technology standards
1) Timing accuracy: <1 sec
2) DTMF receiving standard: ≥-23dBm
3) Incoming receiving accuracy: >99.99%
4) Insertion loss: ≤0.5dB

NOTICE
1) Meter should work in ventilated and clean surrounding. Be away from rain, sun, high temperature, dust, alkali, acid, strong vibration situation or strong electromagnetic wave .

2) Please unplug the power source and telephone lines to avoid lightning strike.

3) The meter is a precision electronic instrument, please don't assign, take apart, test or change tariff rate by unskilled person, which should be operated by skillful serviceman.

4) While transfer rate to the meter from center management system, please plug the special line (6 core RJ connector) provided by manufacturer into the communication port.

5) If with rechargeable batteries, please recharge the batteries at least 12 hours in the first time.

6) The meter keeps on working about 8 hours while the local power is cut off. When the LCD screen gets dark, it indicates that energy in batteries is almost used up.

7) Please use the meter according to the user guide
