TPS-300 Handheld EFT POS

Specifications

Handheld EFT POS with Finger printer
1.Prepaid Airtime, Bill payments, Money Transfer
2.GPRS,IVR,SMS,STK,USSD

Key Words: Electronic Voucher Distributions, GPRS payment terminal, GPRS & GSM SMS printer For take away food order Service, wireless handheld POS with GPRS and printer, Mobile Portable GPRS POS Terminal with thermal printer - 13 years experiences, Wireless GPRS Handheld Device with Bulit-in printer, High Performance Wireless Handheld GSM/GPRS POS terminal with thermal Printer, Wireless ruggedized industrial handheld mobile terminal POS with barcode reader GSM/GPRS and thermal printer, Handheld reader POS terminal GPRS POS hardware portable POS, point of sale system, over-the-air top-up, Wireless Restaurant/hotel GPRS/GSM Printer, mobile gprs pos printer with barcode scanner, GPRS SMS printer, Mobile GPRS POS, Quad Bands Wireless GPRS Printer, SMS/GPRS POS, GPRS/GSM wireless pos terminal with built-in thermal printer, Quad-band 850/900/1800/1900mhz GSM GPRS wireless sms printer, Wireless SMS Printer Connect Internet with GPRS, SMS GSM Mode, portable GPRS pos terminal-factory have strong engieers team, GPRS SMS Printer Helps Print the Receipt Remotely and Automatically


For more information, please visit

1. Introduction of Handheld EFT POS:

TPS300 portable EFT POS Terminal is a portable standalone transaction terminal, it provides a clear pathway to a successful mobile payment services. It is an integrated device which provides multipurpose for users via magcard & IC card.

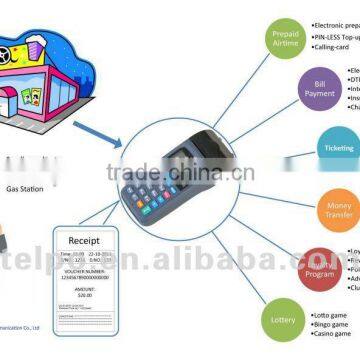

2. Applications of Handheld EFT POS

• Money Transfer / E-Wallet / Instant Mobile Remittance
• Bill Payment: Electricity /Gas / Insurance / Charity
• Prepaid Recharge: Mobile / TV /DTH / Internet / Fixed Line / Gift card / Game card
• Travel & Ticket: Hotel / Air Ticket / Railway / Subway / Taxi / Bus / Movie
• E-shopping
• Lottery

3. Features of Handheld EFT POS

• Languages: English, Spanish, Arabic, Thai, Italian etc.
• Multiple charging channels: GPRS, IVR(voice), SMS, STK or USSD
• Stores charging records such as charging time, amount
• Built-in thermal printer
• Built-in Li-ion battery
• OEM/ODM functions

4. Solutions



5. Specifications

Processor	AMR11
Memory	64MB RAM, 512MB FLASH
OS	Linux
Display	2.8",  with backlight resolution(128*64)
Keypad	11 alphanumeric keys, 9 function keys
Printer	Thermal graphic printer;Speed:18 lines/sec;Paper width:58mm;Paper roll outer diameter:50mm
Magnetic Card Reader	Magnetic card reader,Track 1/2/3,bi-directional swipe
IC Card Reader	IC card reader
Contactless Card Reader	Contactless card reader, ISO14443 Type A/B, Mifare®
SAM Slots	2 SAM Slots
SIM Slots	1 SIM Slot
Communications	GPRS; optional WCDMA/WiFi/CDMA1x/Ethernet/Dail-Up
Peripheral Ports	1 USB OTG, 1 RS232, 1 DB9
Buzzer	A single tone beeper
Digital Audio	Audio synthesizer with built-in speaker
Power Supply	Input:100-240VAC, 50Hz/60Hz,1.0A;output:12VDC, 2A
Battery	7.4V, 1800mAh Lithium Polymer rechargeable battery with over-voltage and over-current protection
Working Environment	Temperature:0°C~50°C;   R.H.:10%~90% (non-condensing)
Storage Environment	Temperature:-20°C~70°C;  R.H.:5%~95% (non-condensing)
Dimensions	197mm(L)×87mm(W)×61.5mm(H)
Weight	485g
Certification	EMV, PCI





6. Company Overview

Founded in 1999, Guangdong Telepower Communication Technology Co., Ltd is a high-tech company which researches, develops and manufactures VAS-related and terminal-oriented telecom products. We take a leading position in telecom industry in China in recent years with our cutting-edge technologies and customized solution.

Our preponderances:

1. Strategic Partners of China’s 3 biggest telecom companies — China Mobile, China Telecom and China Union.
2. 30%market share in China
3. Technological Partners of SIMCOM, TI, ST, Altera and Sun.
4. 100 R&D engineers
5. ISO 9001:2000 , ISO 14001:2004, CE and CCC certifications, RoHS etc.
6. OEM / ODM



Our product ranges are also covering:

1. wireless PBX,
2. IP-PBX,
3. air-charging system,
4. school-family intelligent network,
5. billing meter,
6. fixed wireless terminal series
7. sms printer, air voucher device etc.
