Help CenterOil Filled Sensor
Related Products
Specifications
Wide measurement range:0~10KPa~100MpaPiezoresistive silicon sensing element
O-ring mount
High Accuracy and stability
Description
HT26 is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.
Features
Wide measurement range:0~10KPa~100Mpa
Piezoresistive silicon sensing element
Full316LSS,Full Titanium or Hastelloy diaphragm
O-ring mount
High Accuracy and stability
Application
Measurement pressure of gas and liquid
Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure

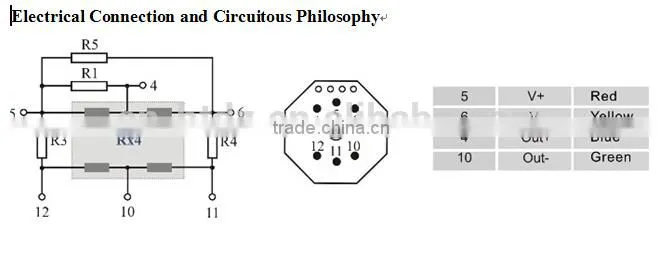

Electrical Data
Supply:1.5mADC Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification
Parameters |
Range:0~10KPa,20KPa, 35 KPa,70 KPa,100 KPa, 200 KPa,350 KPa, 700 KPa, 1MPa, 2MPa, 3.5 MPa,7MPa,10 MPa,20 MPa,35 MPa, 60 MPa,70 MPa,80 MPa,90 MPa,100 MPa |
|||
Typical |
Max. |
Units |
||
Pressure Non-linearity |
±0.15 (0~2MPa) ±0.2 (3.5MPa ~100MPa)
|
±0.3 |
%F.S |
|
Pressure Repeatability and Hysteresis |
0.02 |
0.05 |
%F.S |
|
Zero Output |
0±1 |
0±2 |
mV |
|
Span Output |
≤20KPa |
50±10 |
50±30 |
mV |
≥35 KPa |
100±10 |
100±30 |
mV |
|
Temperature Error-Zero |
≤20KPa |
±1 |
±2 |
%F.S |
≥35 KPa |
±0.5 |
±1 |
%F.S |
|
Temperature Error-Span |
≤20KPa |
±1 |
±2 |
%F.S |
≥35 KPa |
±0.5 |
±1 |
%F.S |
|
Proof Pressure |
3X Rated range or 120MPa, whichever is less |
------- |
||
Operating Temperature Range |
-20~80 |
°C |
||
Compensated Temperature Range |
0~70, 0~50(Range≤20KPa) |
°C |
||
Storage Temperature Range |
-40~125 |
°C |
||

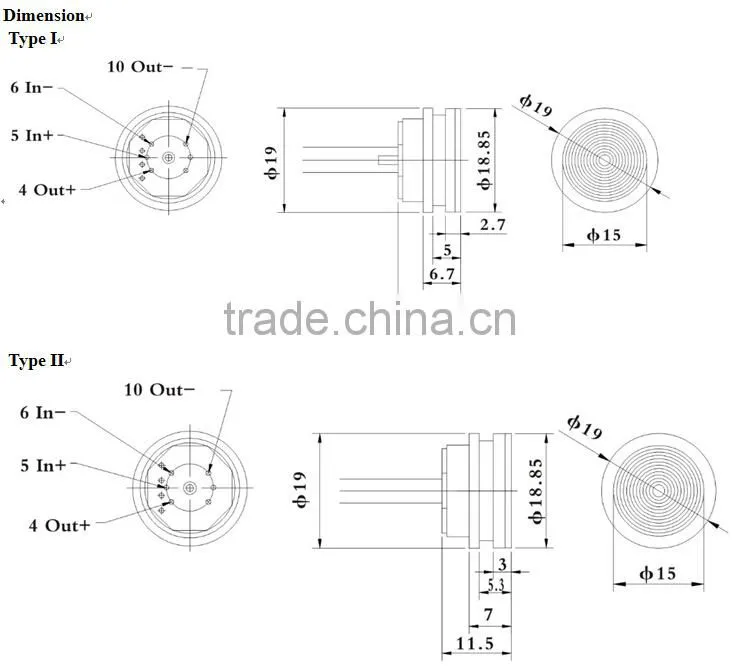

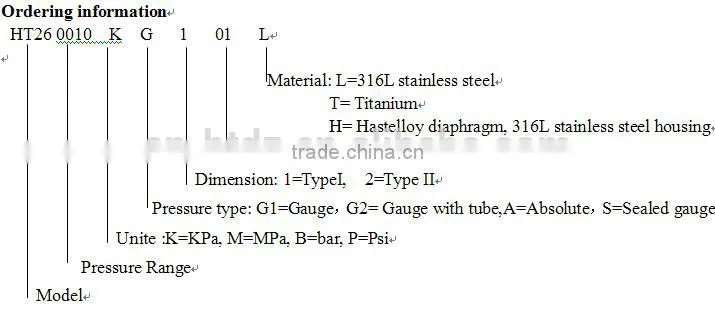

Note :Above parameter under condition:Supply: 1.5mA Temperature: 25°C
