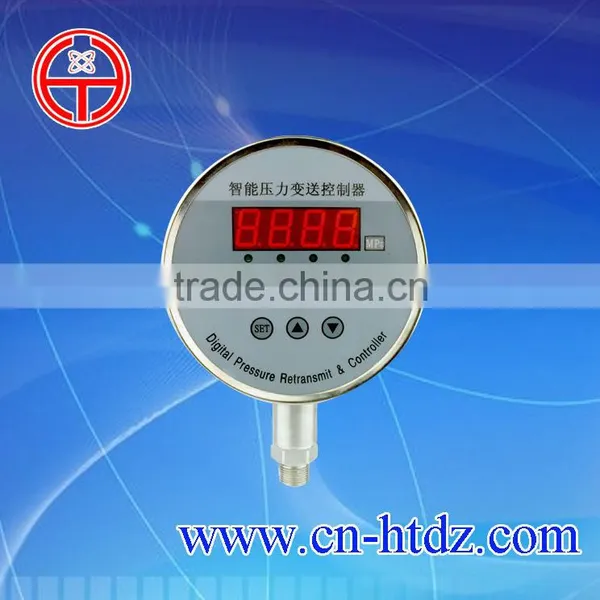

Digital Pressure Controller

Digital Pressure Controller thumbnail-1
Digital Pressure Controller photo-1
US$ 60 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HT
Model Number:
BPZK02
Contact Supplier Request Quote Chat Now
Baoji Hengtong Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XI'AN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HT
Model Number BPZK02

Specifications

Wide range, Full stainless steel.
150mm profile. High light LED display.
Can provide Max. 4 way contact point

Description

BPZK02 digital pressure controller combine pressure measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.

Feature

Wide range, Full stainless steel.

Various pressure point.

150mm profile.

High light LED display.

Two supply power mode 24VDC or 220VAC.

Marking: ExiaIICT6.

Can provide Max. 4 way relay control contact point.

Value of contact point and status of contact point can be set freely

Application

Compatible with 316LSS,noncorrosive liquids.

Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.

Digital pressure controllerDigital pressure controllerDigital pressure controller

BPK-ZK

Intelligent pressure controller

BPZK

Code

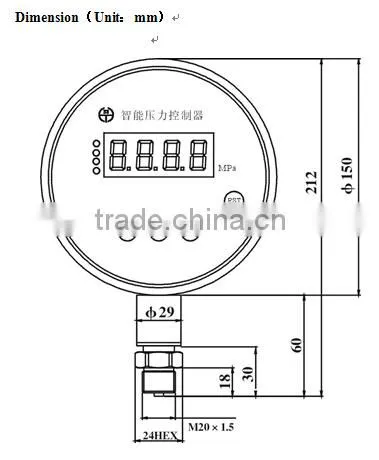

Dimension



01

100 profile, Stainless steel body

  2001

Din connector



      02

150 profile cast Aluminium  housing

  2002

Direct outlet 1.5 meter



      03

117 profile explosion-proof housing







      04

Aviation connector









Range

-0.1. . .0~0.01...100MPa



(0-X) KPa or MPa

X: actual range





Code

Power supply



D1

24VDC



D2

220VAC





Code

Output signal



S1

4~20mADC



S2

1~5VDC



S3

0~5VDC



S4

0~10mADC



Code

Output function



S5

One-way relay



S6

Two-way relay



S7

Three-way relay



S8

Four-way relay



S9

Four-way relay RS485 interface



S10

One-way relay switching value output



S11

Two-way electron switch value





Code

Pressure port



J1

M20×1.5 Male



J2

G1/2 Male



J3

G1/4 Male



J4

others





Code

Pressure type



G

Gauge pressure



A

Absolute pressure



S

Sealed gauge
