Specifications
Wide measurement Range:0~10KPa~100MpaHigh Accuracy and stability
19 mm standard Dimension
Pressure port can be customized
Description

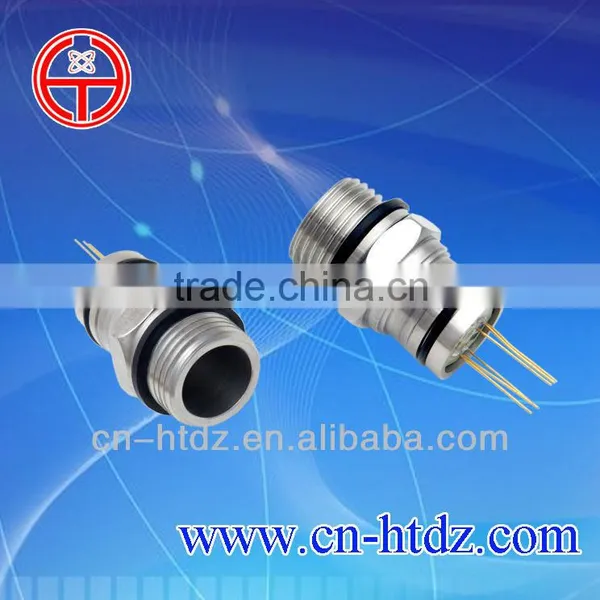

HT30 is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. The measured pressure is transferred from 316L stainless steel diaphragm to sensing element via silicon oil, utilizing the piezoresistance effect of diffused silicon to transfer pressure to voltage signal and fulfills pressure measurement .It is a full-welded pressure sensor, Pressure port can be selected by user. It can be used for kinds of field.
Features
Wide measurement Range:0~10KPa~100Mpa
High Accuracy and stability
Φ19 mm standard Dimension
Pressure port can be customized
Application
Measurement pressure of gas and liquid
Petroleum exploitation
Water supply, warm supply of town
Process control system
Aviation and navigation inspection
Pressure transmitter

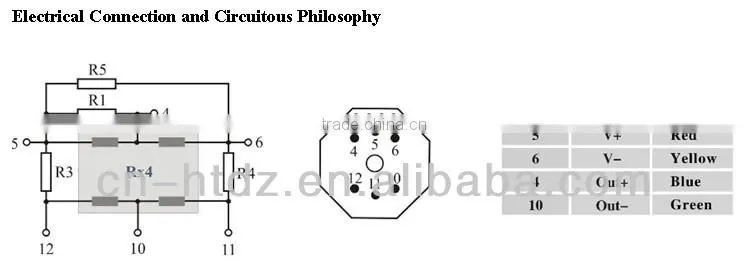

Electrical Data
Supply :1.5mADC
Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage: 500VAC between the housing and electrical connection will not damage
Medium compatible: liquid, gas compatible with 316L Stainless steel
Performance Specification
Parameters |
Range:0~10KPa,35KPa,0~70KPa,100KPa,200KPa,350KPa,700KPa,1000KPa,2000KPa,3500 KPa,7MPa,10MPa ,20MPa,35Mpa,60MPa,100MPa |
|||
Typical |
Max. |
Units |
||
Pressure Non-linearity |
±0.15 (0~2MPa) ±0.2 (3.5MPa~60MPa) |
±0.3% |
%F.S |
|
Pressure Repeatability and Hysteresis |
0.02 |
0.05 |
%F.S |
|
Zero Output |
0±1 |
0±2 |
mV |
|
Span Output |
≤20KPa |
50±10 |
50±30 |
mV |
≥35KPa |
100±10 |
100±30 |
mV |
|
Temperature Error-Zero |
≤20KPa |
±1 |
±2 |
%F.S |
≥35KPa |
±0.5 |
±1 |
%F.S |
|
Temperature Error-Span |
≤20KPa |
±1 |
±2 |
%F.S |
≥35KPa |
±0.5 |
±1 |
%F.S |
|
Proof Pressure |
3X rated range or 120MPa, whichever is less |
------ |
||
Operating Temperature Range |
-20~80 |
°C |
||
Compensated Temperature Range |
0~70, 0~50(Range≤20KPa) |
°C |
||
Storage Temperature Range |
-40~125 |
°C |
||
Note :Above parameter under condition:Supply: 1.5mA Temperature:25°C
