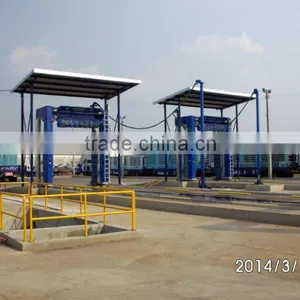

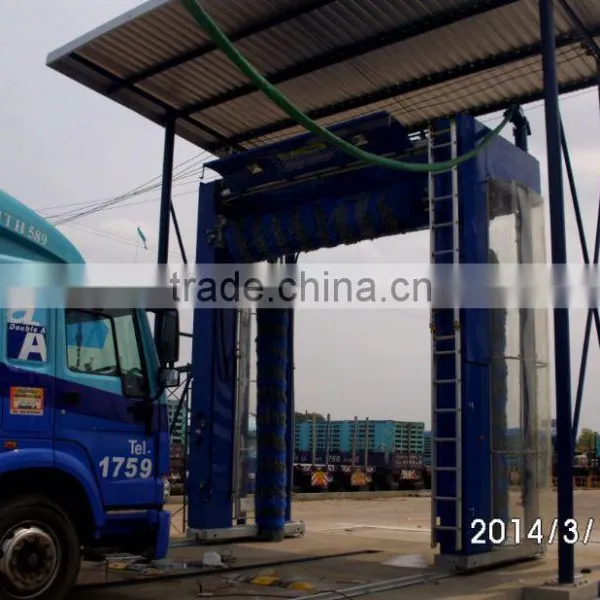

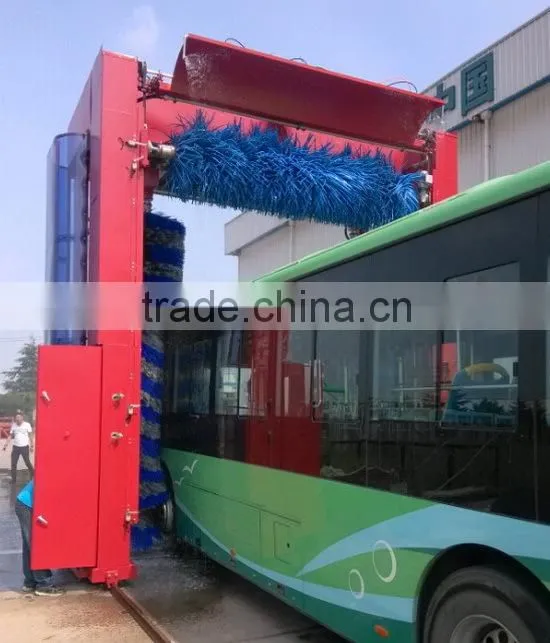

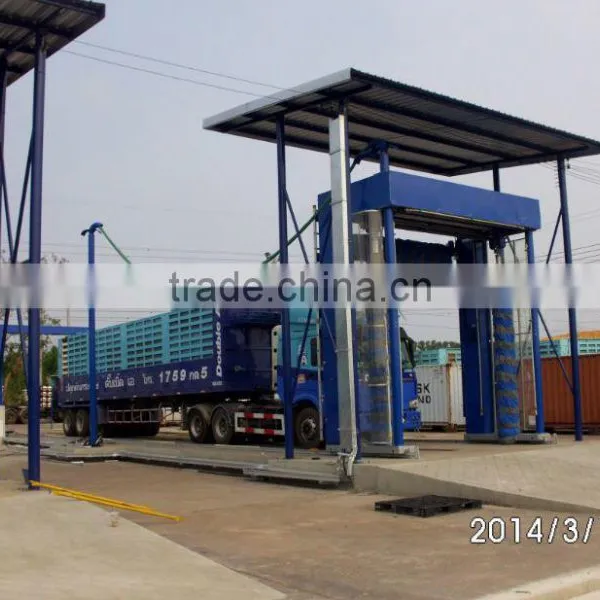

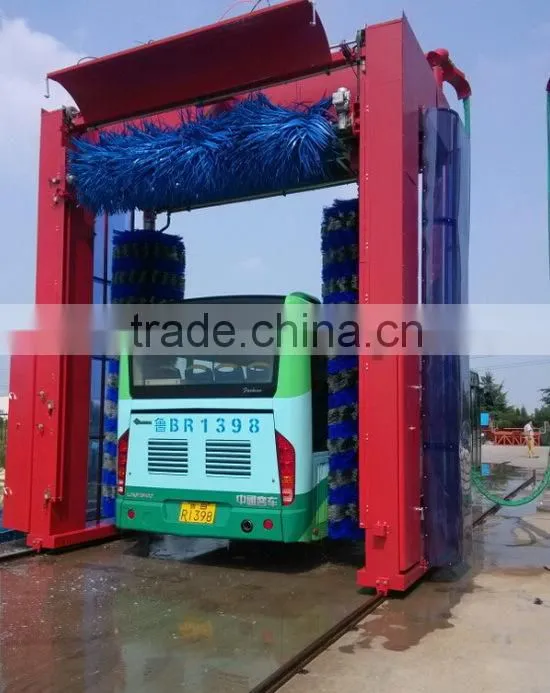

Big Truck Washing Machine, Large Car Washing Machine, Truck Washing Machine

Name: Big Truck Washing Machine, Large Car Washing Machine, Truck Washing Machine
Brand: PACIFIC EVERLASTING
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	PACIFIC EVERLASTING	Model Number:	PE-730
Size:	L21500mmW4680mmH5200mm	Material:	high quality anti-rust steel

Big Truck Washing Machine, Large Car Washing Machine, Truck Washing Machine

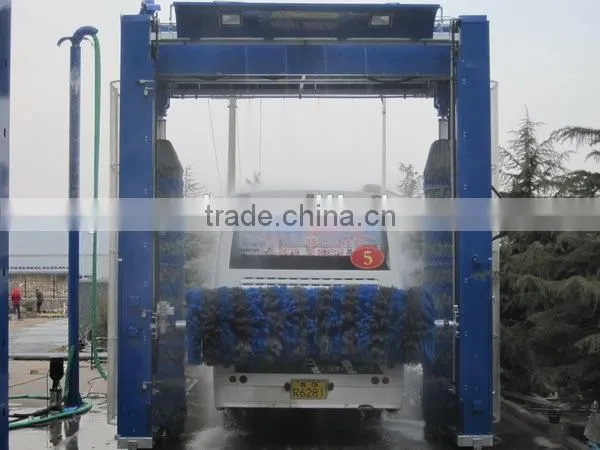

Product name	Fully Automatic Rollover Bus Wash Machine
Model	PE-730
Machine Size	L21500mm×W4680mm×H5200mm
Track size	L=21000mm
Total machine power	8.86kw
Size Brush O/P Motor	0.37kw×2
Side brush motor	0.75kw×2
Top brush motor	0.75kw
Top brush lifting motor	0.55kw

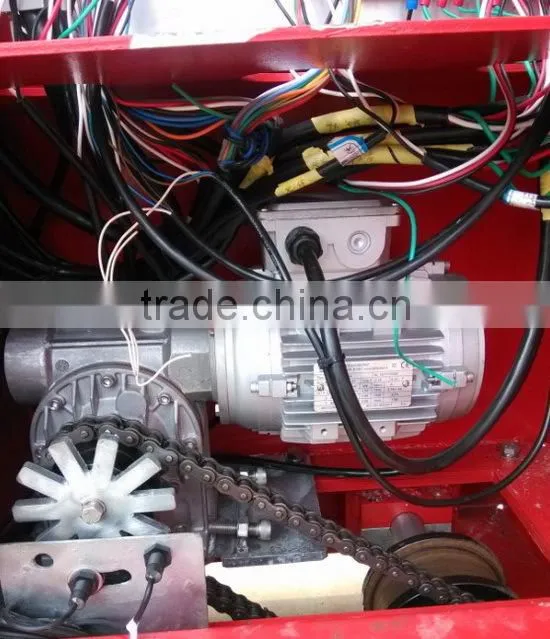

Driving motor	0.66kw×2
Pump motor	4.0kw
Top electric capacity	8.86kw
Washing models	Bus/Double-decker bus
Washing size	L13000mm×W2700mm×H4200mm
Normal wash car ways	three brush half rollover/three brush one rollover/two brush half rollover
Washing Speed	12-15buses/h
Usage cost	Calculate according to local water and electricity prices
Water consumption	220L/car
Electricity consumption	0.59kwh/car
Shampoo consumption	25ml/car
Installation range	L21000mm×W5200mm,bothsides should keep checking passageway
Move range	L21000mm×W4800mm
Power supply	three-phase AC380V/220v,50Hz/60Hz or customized voltage
Water supply	Pipe diameterDN25 flow rate≥120L/min
Other requirement	Ground roughness≤10mm
Frame	Galvanizing by dipping
Brush material	Aluminum alloy brush pipe,The integral type nylon Brush
Side brush motor	SITI (Itlia)
Top brush motor	SITI (Itlia)
Driving motor	Thunis
Water pump	CNP
Warranty	1 year limited warranty

Machine Features

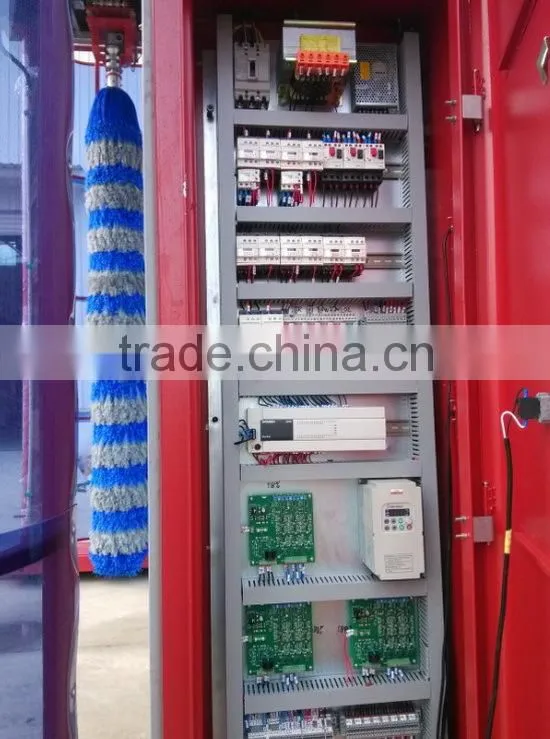

1.Can identify the bus model with photoelectric sensor controlled by PLC.

2.ZAM alloy or hot-dip galvanized frame keep the machine long life use.

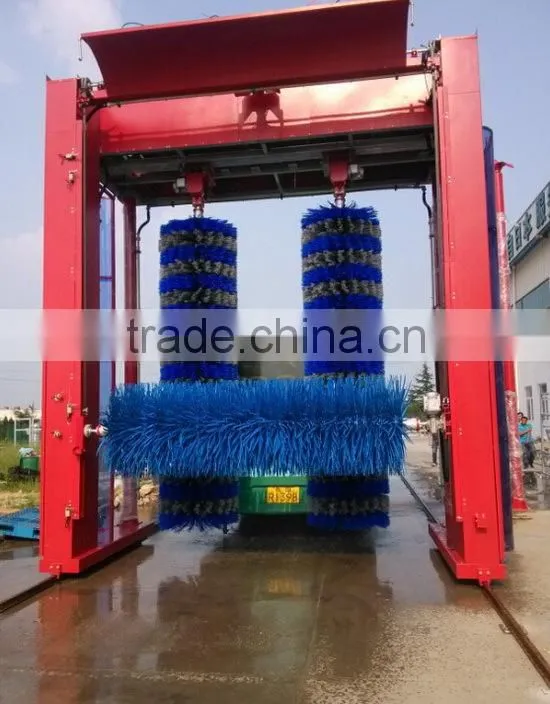

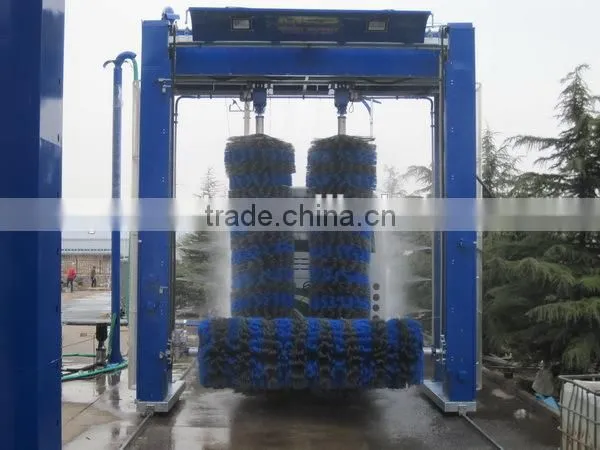

3.Inclinable side brush strengthens cleaning ability around the car.

4.The dovetail foam brush makes the car washing more quiet and clean.

5.High quality motor on top brush from Italy with light weight.

6.The high sensor on the top brush can keep the bus from damage.

7.High quality explosion proof reduction motor can work well in any conditions.

8.Fully automatic and easy to operate, high efficiency and energy conservation.

9.With on-site installation for free and long time quality guarantee
